NC4 Series

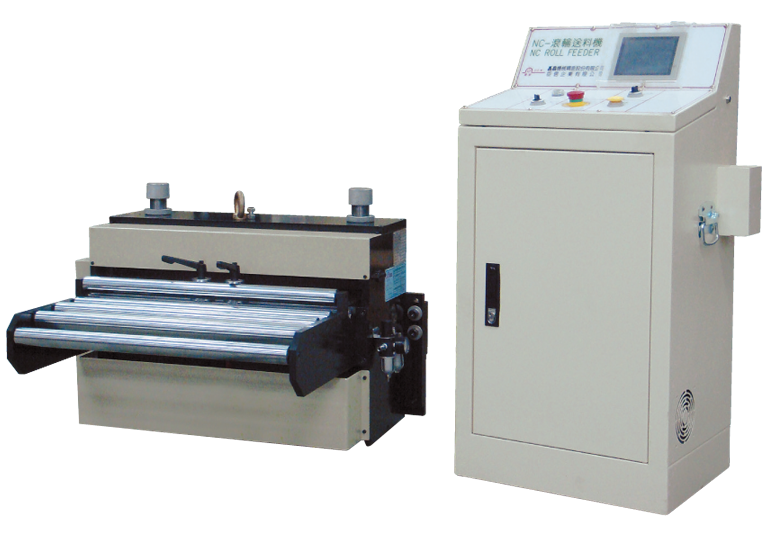

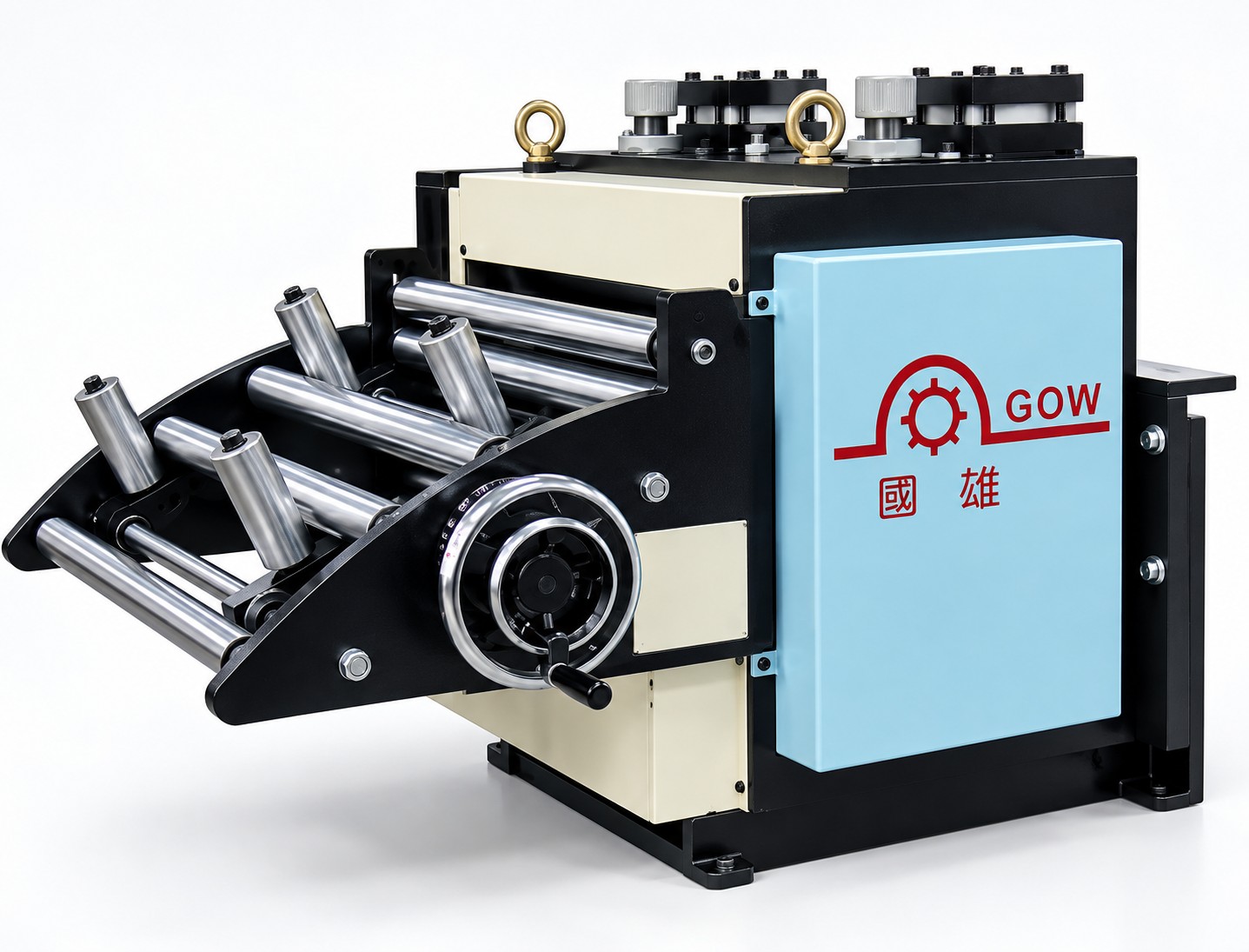

NC Heavy Duty Servo Feeder Series
The NC Servo Feeder features a high-rigidity mechanical structure combined with a high-performance servo control system, providing stable and precise feeding performance.
Equipped with an intelligent and user-friendly operation interface, the feeding length and number of feed cycles can be set according to different processing requirements. Simple operation and flexible settings effectively improve production efficiency.
Suitable for various automated metal stamping production lines, it provides a high-precision, high-efficiency, stable, and reliable feeding solution.
Features
- High rigidity mechanical structure design and work with Mitsubishi servo control system to ensure the feeding accuracy.
- Friendly operation by adopting Human Machine Interface control.
- Programmable multi-pitch setting function to support the different feeding length and feeding frequency requirement.
- Auto feed monitoring function which can be a safety operation when the unit interlock with press stamping operation.
- Applicable for selecting the optional 4 feeding rolls to meet the thicker material request, to ensure the feeding accuracy.
Specifications
NC4 Series Specification
| Model | NC4-300 | NC4-400 | NC4-500 | NC4-600 | NC4-800 | NC-1000 | NC-1250 | |
|---|---|---|---|---|---|---|---|---|
| Width of Material | mm | 300 | 400 | 500 | 600 | 800 | 1000 | 1250 |
| Thickness of Material | mm | 0.1 ~ 4.5 | 0.1 ~ 4.5 | 0.1 ~ 4.5 | 0.1 ~ 4.5 | 0.1 ~ 4.5 | 0.1 ~ 4.5 | 0.1 ~ 4.5 |
| Feed Roll Up | mm | 112 x 1 (Pu Roll) | 112 x 1 (Pu Roll) | 112 x 1 (Pu Roll) | 112 x 1 (Pu Roll) | 112 x 1 (Pu Roll) | 112 x 1 (Pu Roll) | 112 x 1 (Pu Roll) |
| Work Roll Down | mm | 112 x 1 | 112 x 1 | 112 x 1 | 112 x 1 | 112 x 1 | 112 x 1 | 112 x 1 |
| Servo Motor | kW | 3.5 | 3.5 | 5.0 | 5.0 | 7.0 | 7.0 | 7.0 |
| Feed Length | mm | 1 ~ 9999.99 | 1 ~ 9999.99 | 1 ~ 9999.99 | 1 ~ 9999.99 | 1 ~ 9999.99 | 1 ~ 9999.99 | 1 ~ 9999.99 |
| P.L.H Adjustment | mm | 187 ~ 367 | 187 ~ 367 | 187 ~ 367 | 187 ~ 367 | 187 ~ 367 | 187 ~ 367 | 187 ~ 367 |
Specialty

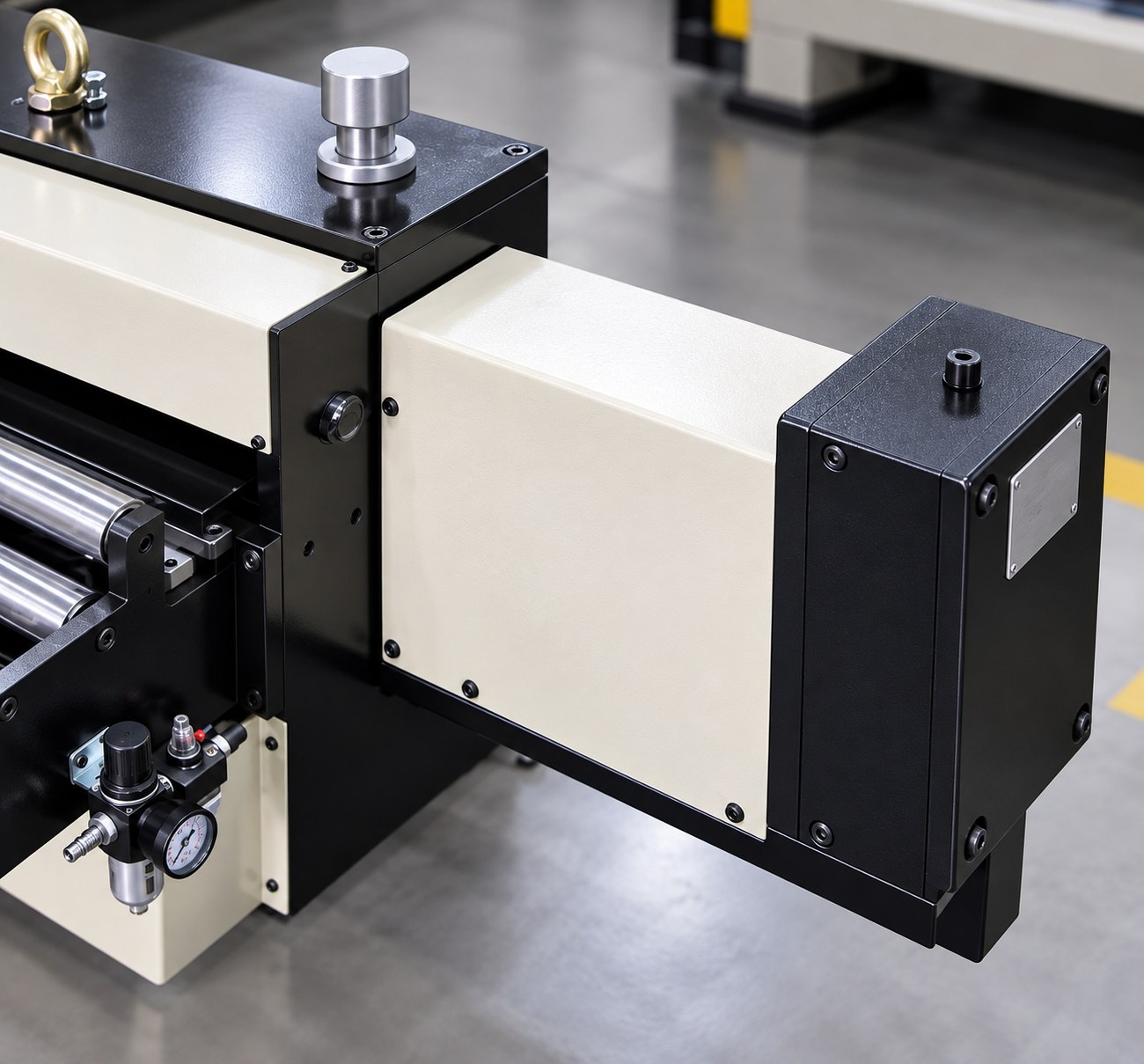

- ● Air release

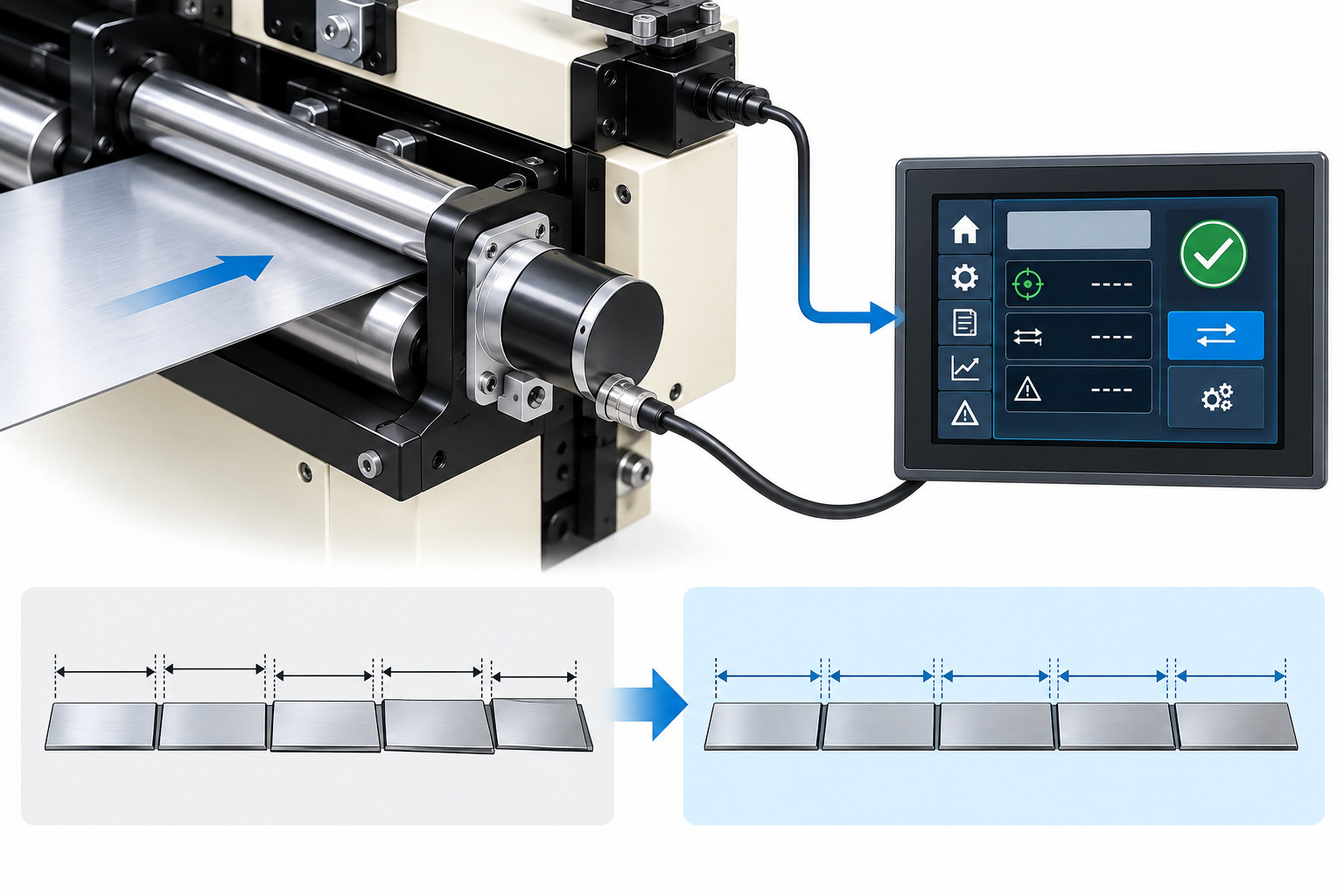

- ● Feeding accuracy
- ● Height stability
- ● Customer demand
- ● Special software program demand
-

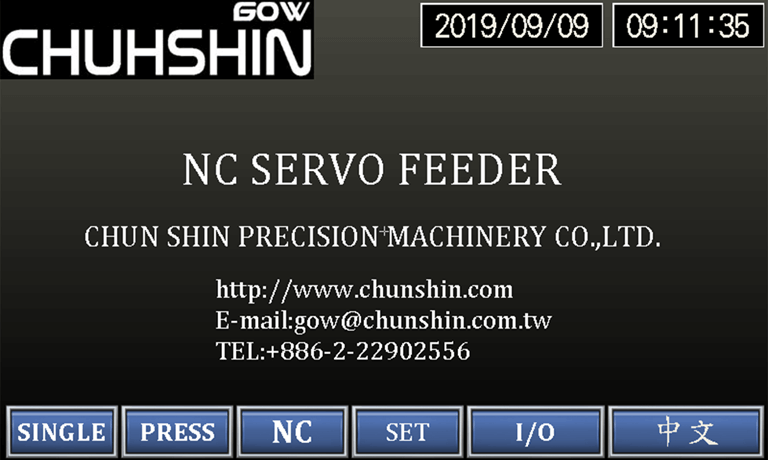

Main menu : Can choose Chinese and English language menu -

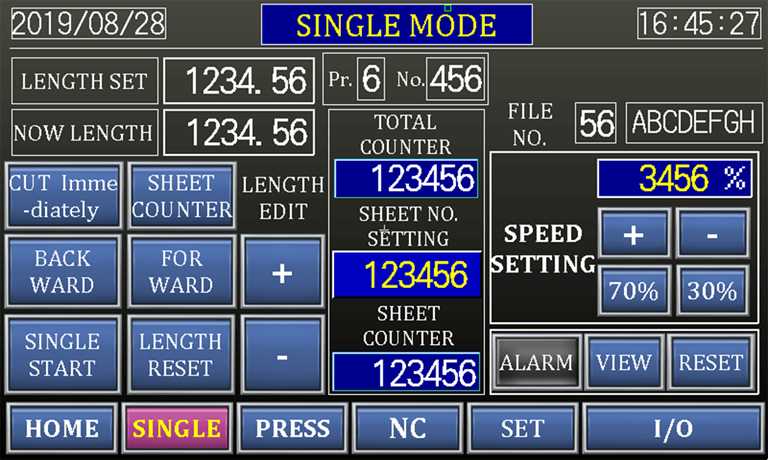

Single Mode : For stamting testing run purpose and Single safe mode operation -

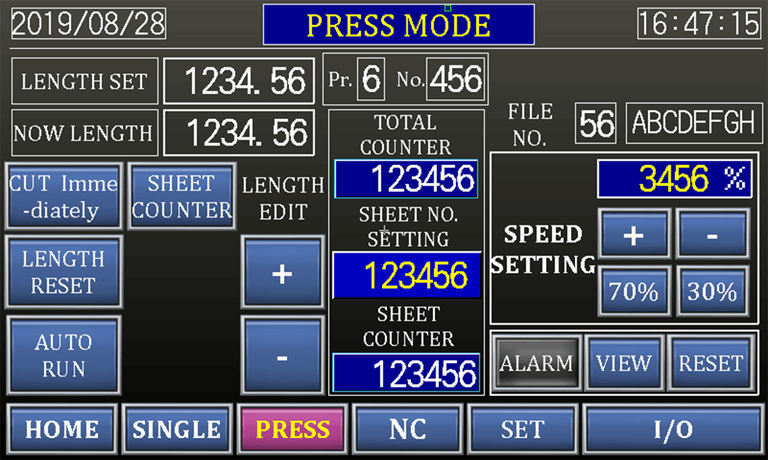

Press Mode : Continual operation mode under press control -
NC Mode : Continual operation mode under feeder control -

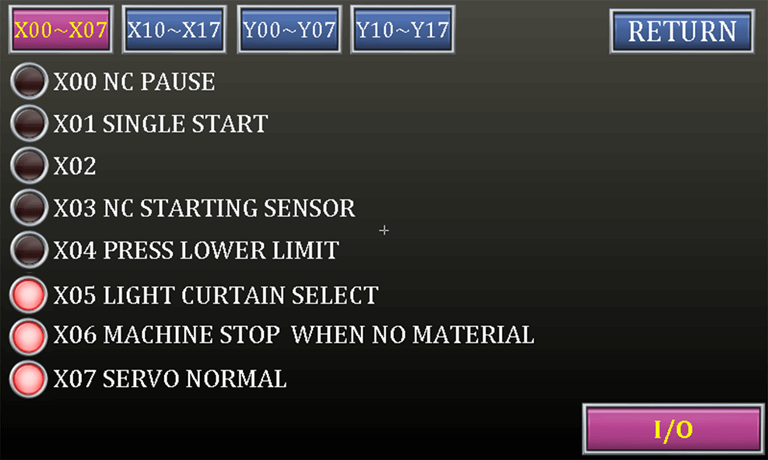

I/0 MONITORING SCREEN -

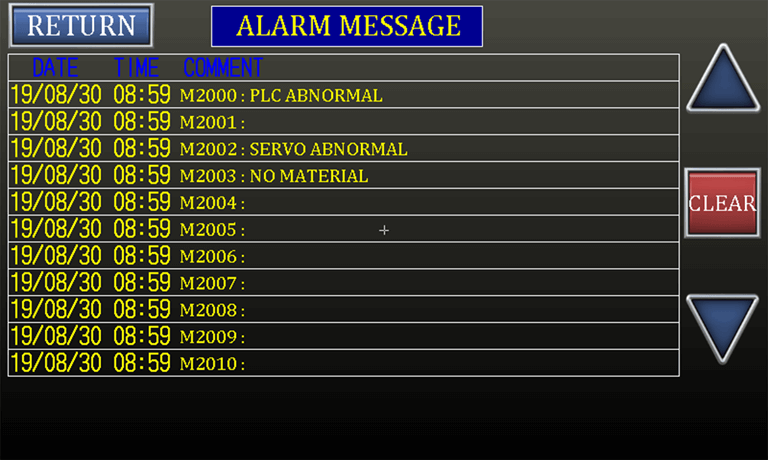

ALARM MESSAGE SCREEN
-

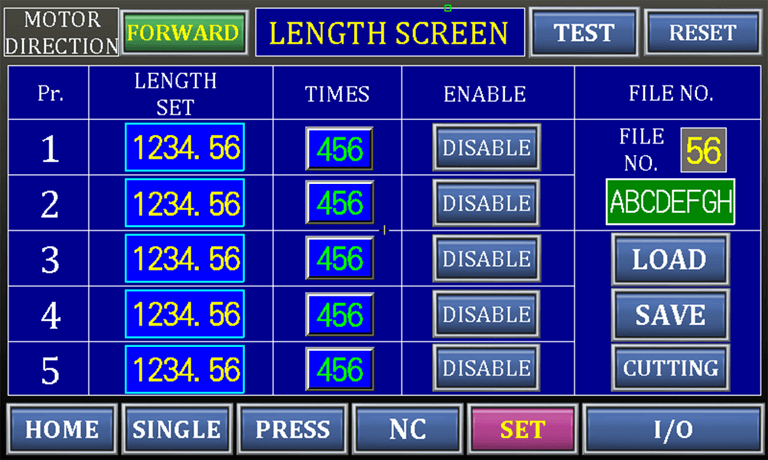

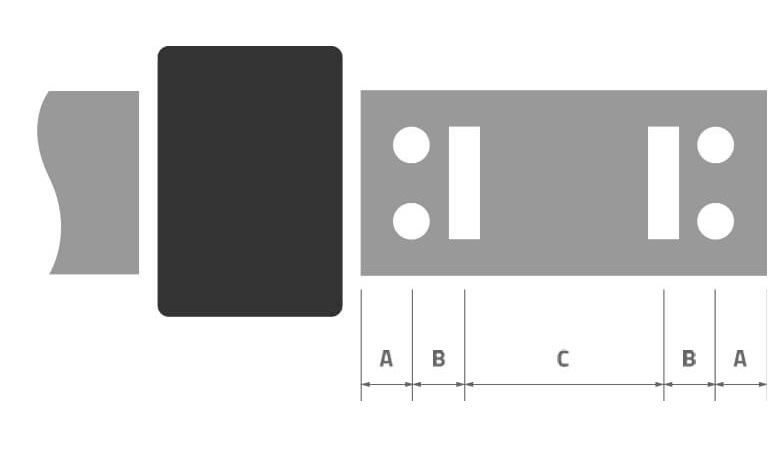

Material length setting: Applicable for multi-feeding length setting requirment. -
-

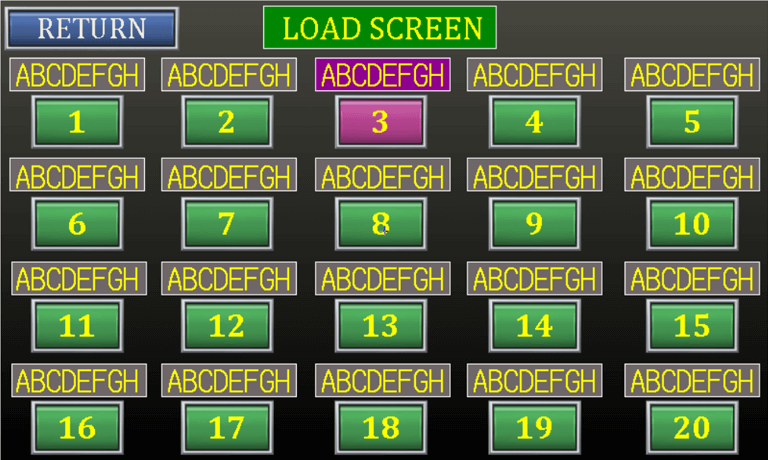

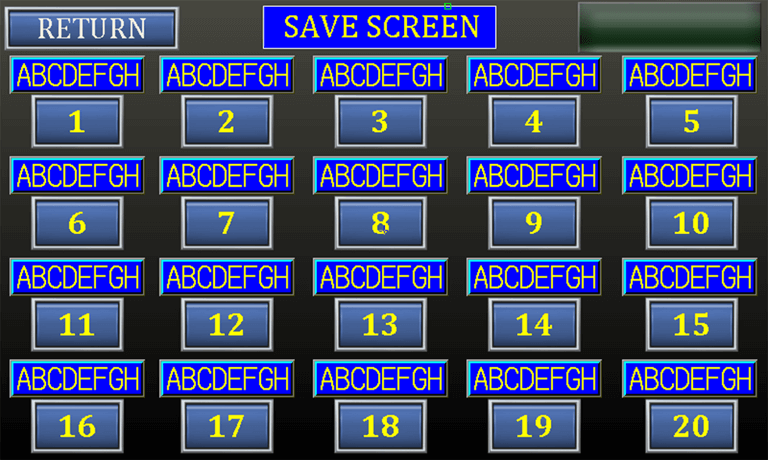

This function can record feeding length value to save or recall, and it is cooperation with dies number to record memory. -
Accessories
- • Programmable multi-pitch setting with cutting signal output function.
- (Cutting signal output function is able to control the cutting device.)
- • 7" Mitsubishi Touch panel
- • PLC controller - Mitsubishi (Made in Japan)
- • NC servo controller - Mitsubishi (Made in Japan)
- • Feeding rolls air release.
- Gear box driven type device.
