MLA4 Series

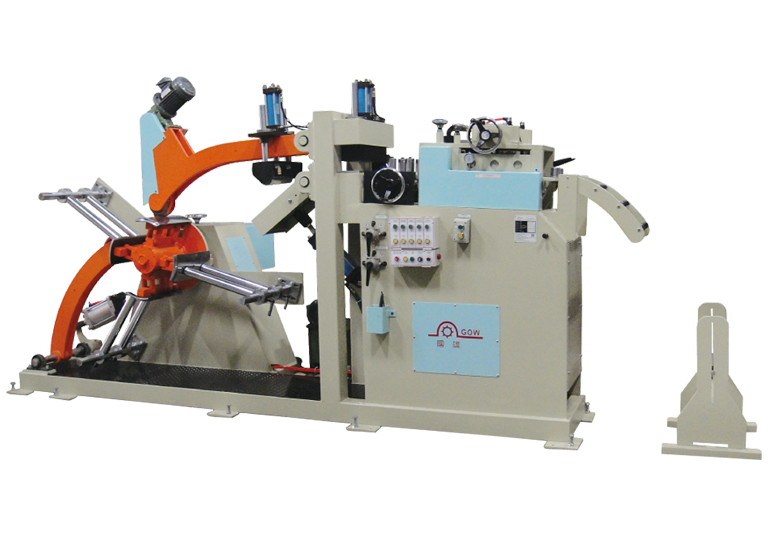

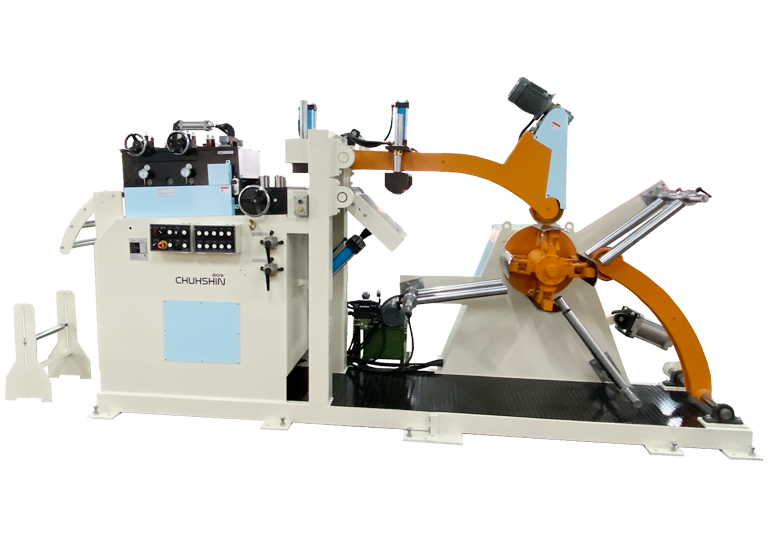

2 in 1 Heavy Duty Uncoiler & Straightener
Integrating an uncoiler and straightener into a 2 in 1 compact design, the machine is equipped with a material guiding device, feeding device, and coil leading-edge flattening mechanism to effectively reduce material loading time and improve operational convenience. Combined with a high-rigidity frame structure and proven straightening technology, it ensures stable operation and consistent straightening quality, further enhancing production efficiency. It is widely suitable for various metal sheet stamping applications.
Features
- Friendly operation controlled by adopting the independent control cabinet.
- Customer can optional the dual inverter driving motorsto reduce the scratching problem of the material surface.

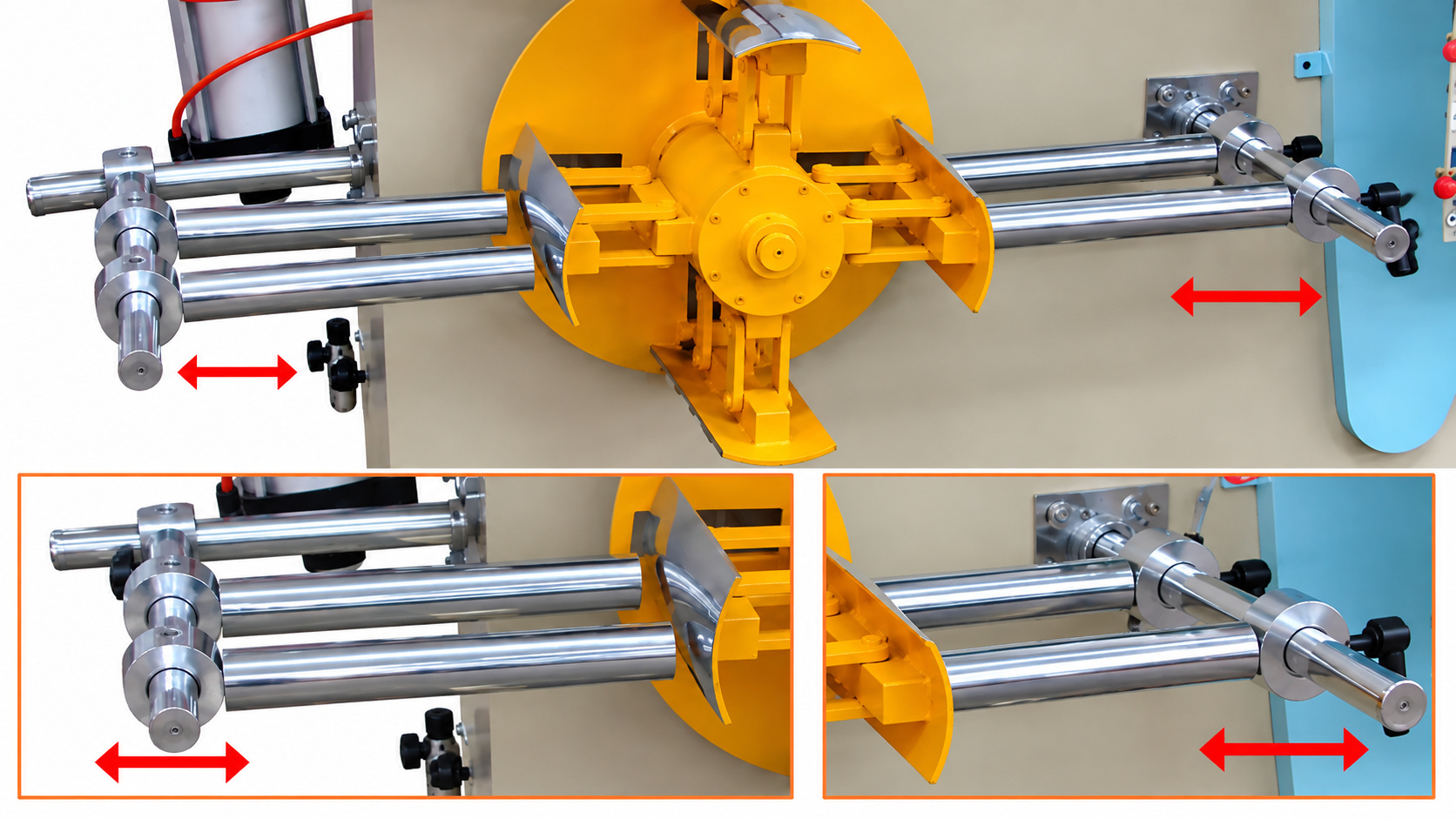

- Custom-made accessories for pneumatic snubber arm, hydraulic expansion device…etc. It is welcome for any your special demand to create your own suitable machine.
Specifications
MLA4 Series for 0.8~4.0 mm
| Modle | MLA4-200 | MLA4-300 | MLA4-400 | MLA4-500 | MLA4-600 | MLA4-700 | MLA4-800 | |
|---|---|---|---|---|---|---|---|---|
| Width of Material | mm | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
| Thickness of Material | mm | 0.8 ~ 4.0 | 0.8 ~ 4.0 | 0.8 ~ 4.0 | 0.8 ~ 4.0 | 0.8 ~ 4.0 | 0.8 ~ 4.0 | 0.8 ~ 4.0 |
| Feeding Upper Rolls | 84 x 1 pcs | 84 x 1 pcs | 84 x 1 pcs | 84 x 1 pcs | 96 x 1 pcs | 96 x 1 pcs | 96 x 1 pcs | |
| Feeding Lower Rolls | mm | 114 x 1 pcs | 114 x 1 pcs | 114 x 1 pcs | 114 x 1 pcs | 114 x 1 pcs | 114 x 1 pcs | 114 x 1 pcs |

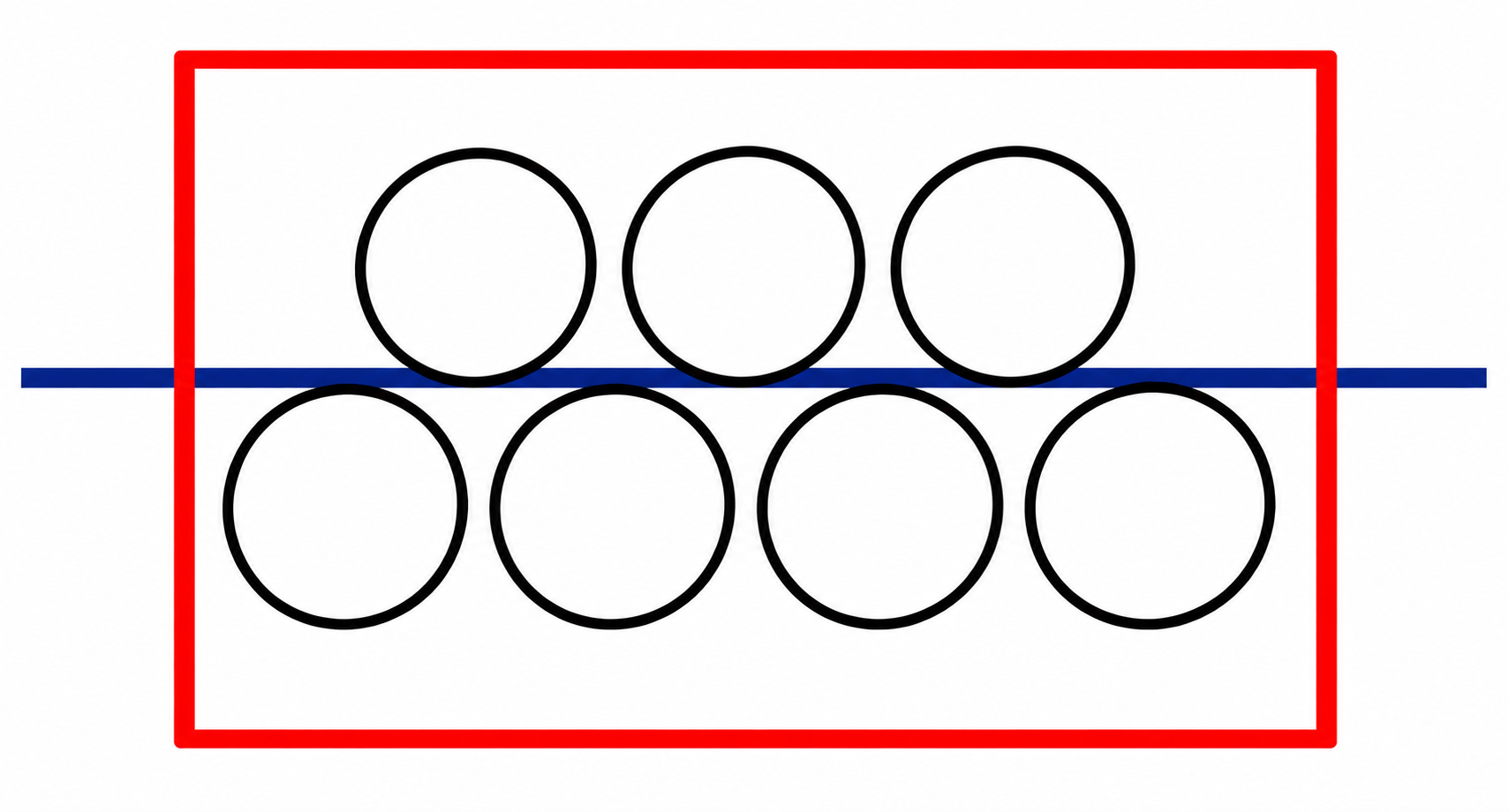

| Straightener Rolls | mm | 84 x 7 pcs | 84 x 7 pcs | 84 x 7 pcs | 84 x 7 pcs | 96 x 7 pcs | 96 x 7 pcs | 96 x 7 pcs |
| Straightener Motor | HP | 2 | 3 | 3 | 3 | 5 | 5 | 5 |
| Straightener Inverter | kW | 2.2 | 2.2 | 3.7 | 3.7 | 3.7 | 3.7 | 5.5 |
Uncoiler Specifications
| Width of Material | mm | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
|---|---|---|---|---|---|---|---|---|
| Max. Coil Weight | kg | 2000 | 3000 | 3000 | 3000 | 5000 | 5000 | 5000 |
| Coil I.D. | mm | Ø450 ~ 520 | Ø450 ~ 520 | Ø450 ~ 520 | Ø450 ~ 520 | Ø450 ~ 520 | Ø480 ~ 520 | Ø480 ~ 520 |
| Max. Coil O.D. | mm | 1200 (Option : 1500) | 1200 (Option : 1500) | 1200 (Option : 1500) | 1200 (Option : 1500) | 1200 (Option : 1500) | 1200 (Option : 1500) | 1200 (Option : 1500) |
| Uncoiler Expansion | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |
| Uncoiler Motor (Option： Manual Forward and Reverse) | HP | 1 | 2 | 2 | 3 | 3 | 3 | 5 |
| Uncoiler Inverter (Option ) | kW | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | 3.7 |
Specialty
- ● Height efficiency
- ● Height stability
Accessories
- ● Straightener inverter.
- ● Straightener dial gauge.
- ● Hydraulic expansion device.
- ● Uncoiler forward rotation and reverse rotation device.
- ● Snubber arm.
- ● Carry over guide.
- ● Peeler.
- ● Pre - bender.
- ● Touch loop control sensor.
- ● Material holder.
- ● A frame type coil guide.

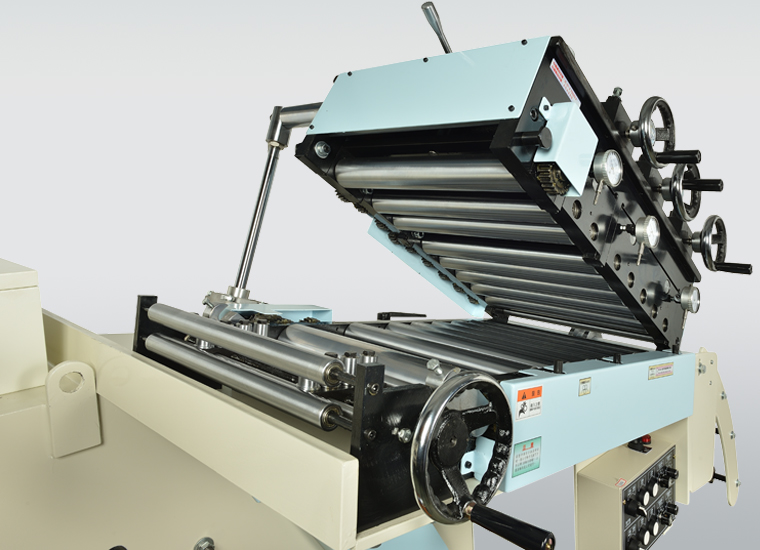

- Flip – Top Straightener head device
- Ultrasonic speed loop control device.
- Photoelectric sensor
- Quick fixed coil guide.

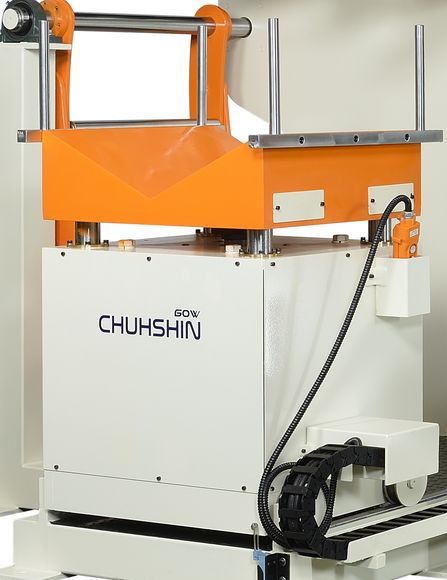

- Coil car (Coil loading assisting device)
