TXT Series

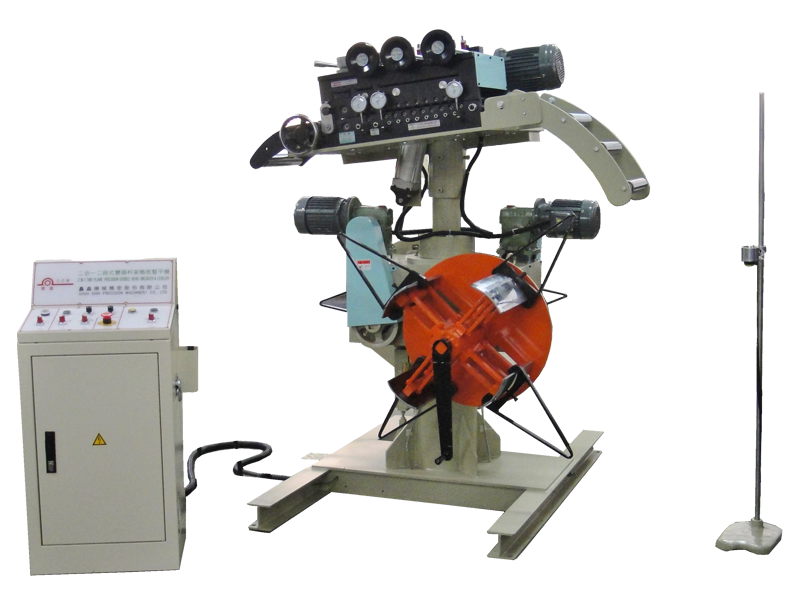

2 IN 1 Twin Type Two Plane Surface Uncoiler & Leveler
Featuring an innovative two-stage precision straightening design with different roller configurations at each stage, the machine effectively reduces material curvature and straightening issues caused by changes in coil outer diameter, improving material flatness and straightening stability to meet the demands of precision stamping applications.
The integrated design of the double-head uncoiler and straightener effectively saves installation space. Equipped with a lift-up straightening head, it allows easy roller cleaning and maintenance, improves operating convenience, reduces material surface defects, and enhances production efficiency and operational safety.
Features
- Twin type uncoiler & leveler is designed for save the space.

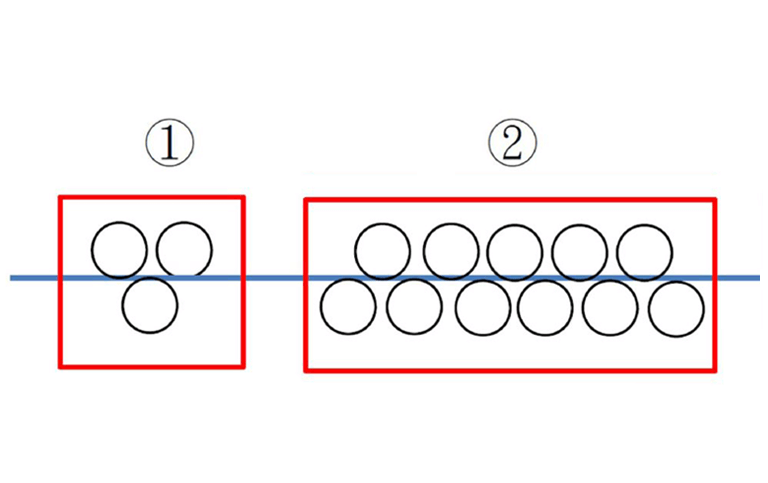

- The unique 2 section leveling designed for solving the high flatness and leveling stability of material requirement.

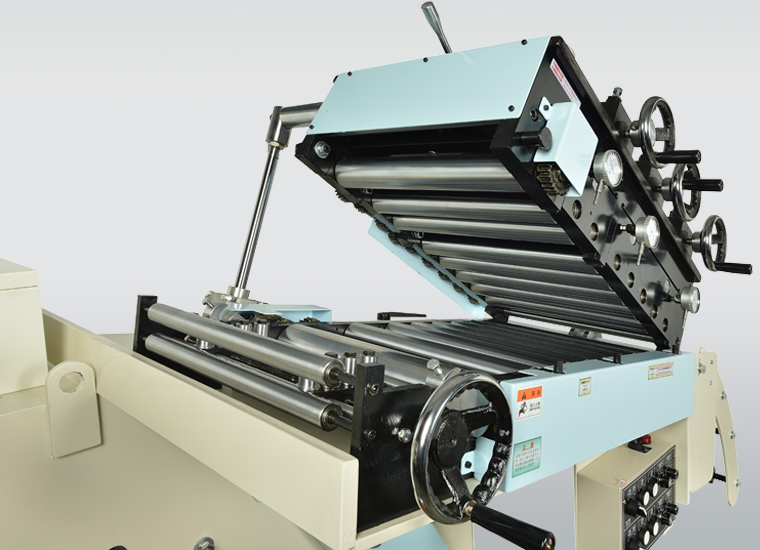

- Flip – Top leveler head device designed for easy maintenance operation.
- Adopting the dual inverter driving motors to reduce thes cratching problem of the material surface.
- Manual type in feed coil guiding device to simplify the coil loading operation.
- Custom-made accessories for pneumatic snubber arm, hydraulic expansion device…etc. It is welcome for any your special demand to create your own suitable machine.
Specifications
TXT Series for 0.3~1.2 mm
| Modle | TXT-200 | TXT-300 | TXT-400 | TXT-500 | |
|---|---|---|---|---|---|
| Width of Material | mm | 200 | 300 | 400 | 500 |
| Thickness of Material | mm | 0.3 ~ 1.2 | 0.3 ~ 1.2 | 0.3 ~ 1.2 | 0.3 ~ 1.2 |
| Feeding Upper Rolls | mm | 60 x 1 pcs | 60 x 1 pcs | 60 x 1 pcs | 60 x 1 pcs |
| Feeding Lower Rolls | mm | 60 x 1 pcs | 60 x 1 pcs | 60 x 1 pcs | 60 x 1 pcs |
| Leveler Rolls | mm | 40 x 14 pcs | 40 x 14 pcs | 40 x 14 pcs | 40 x 14 pcs |
| Leveler Motor | HP | 1 | 2 | 2 | 2 |
| Leveler Inverter | kW | 0.75 | 1.5 | 1.5 | 1.5 |
Uncoiler Specifications
| Width of Material | mm | 200 | 300 | 400 | 500 |
|---|---|---|---|---|---|
| Max. Coil Weight | kg | 1000 | 1000 | 1500 | 2000 |
| Coil I.D. | mm | Ø300 ~ 520 | Ø450 ~ 520 (Option : Ø300 ~ 520) | Ø450 ~ 520 | Ø450 ~ 520 |
| Max. Coil O.D. | mm | 1200 | 1200 | 1200 | 1200 |
| Uncoiler Expansion | Manual | Manual (Option : Hydraulic) | Manual (Option : Hydraulic) | Manual (Option : Hydraulic) | |
| Uncoiler Motor | HP | 1/2 | 1/2 | 1 | 1 |
| Uncoiler Inverter | kW | 0.75 | 0.75 | 0.75 | 1.5 |
Specialty
-
Flip – Top leveler head device - .
- ● Height leveling
- ● Height efficiency
- ● Height stability
- ● Saving space over 40%
Accessories
- Flip – Top leveler head device
- ● 2 points micro adjustment with 3 sets. (Attached withdial gauge)
- ● Manual in feed coil guide device.
- ● Touch loop control sensor.
- ● Motor driven Uncoiler & Leveler with inverter control.
- ● A frame type coil guide.
- Hydraulic expansion device.
- Ultrasonic speed loop control device.
- Photoelectric sensor
