GFS Series

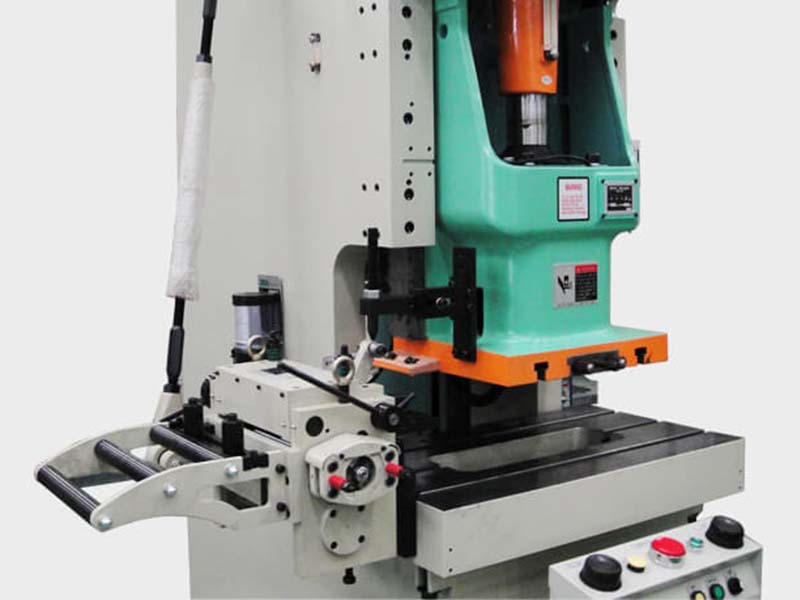

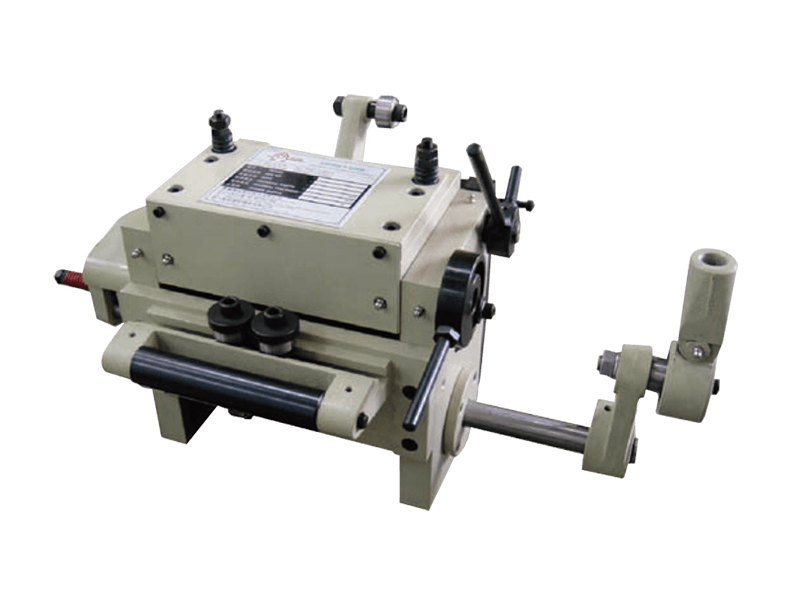

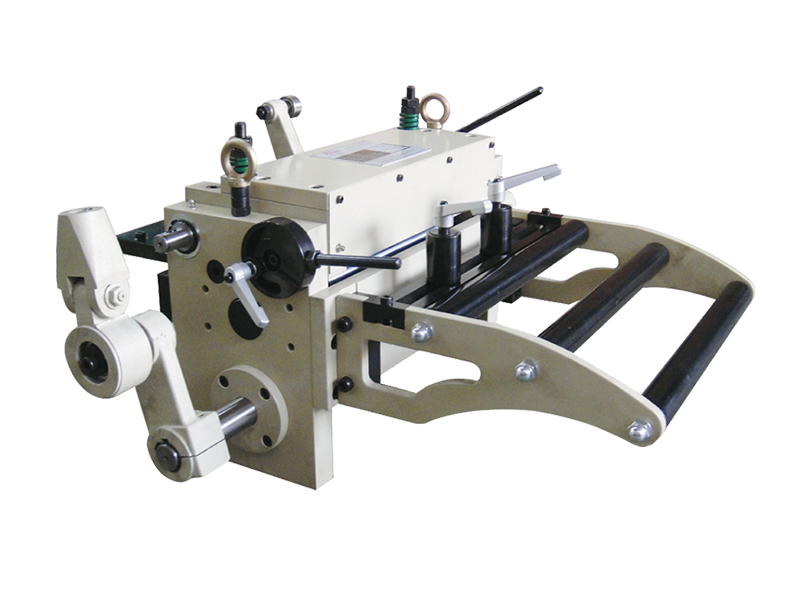

GFS Roll - Feeder Series
GFS High Speed Servo Feeder Series is High rigidity mechanical structure design and work with Mitsubishi Server system, friendly operation by adopting Human Machine Interface control, programmable multi-pitch setting function to support the different feeding length and feeding frequency requirement.
Features
- Adjustable driving shat designd is to prevent the impact damaged from press while the stamping job is running.
- The feeder is adopting the high precision finishing parts to offer the longest life term for ensuring the stable productivity performance.
- The feeder is capable is capable for 600 S.P.M.under the progressive tooling stamping job.
- Easy adjustment allows working with wide range of material thickness.
- The feeder is driven by press directly,saving the energy and cost for sure.
Specifications
| Model | Material width (mm) | Feed length (mm) | Material thickness (mm) | Pass thickness (mm) | Capacity of press (ton) |
|---|---|---|---|---|---|
| GFS-065NS | 60 | 50 | 0-1.6 | 55-100 | 5-20 |
| GFS-105NS | 100 | 50 | 0-1.6 | 55-100 | 5-20 |
| GFS-205NS | 200 | 50 | 0-1.6 | 55-100 | 20 |
| GFS-138NS | 130 | 80 | 0-1.6 | 60-120 | 10-60 |
| GFS-208NS | 200 | 80 | 0-1.6 | 60-120 | 20-60 |
| GFS-1310NS | 130 | 100 | 0-3.5 | 70-140 | 40-60 |
| GFS-2010NS | 200 | 100 | 0-3.5 | 70-140 | 40-80 |
| GFS-3010NS | 300 | 100 | 0-3.5 | 70-140 | 60-160 |
| GFS-4010NS | 400 | 100 | 0-3.5 | 70-140 | 80-260 |
| GFS-5010NS | 500 | 100 | 0-3.5 | 70-140 | 110-260 |
| GFS-6010NS | 600 | 100 | 0-3.5 | 70-140 | 160-260 |
| GFS-7010NS | 700 | 100 | 0-3.5 | 70-140 | 160-260 |
| GFS-1315NS | 130 | 150 | 0-3.5 | 70-140 | 50-60 |
| GFS-2015NS | 200 | 150 | 0-3.5 | 70-140 | 40-80 |
| GFS-3015NS | 300 | 150 | 0-3.5 | 70-140 | 60-160 |
| GFS-4015NS | 400 | 150 | 0-3.5 | 70-140 | 90-260 |
| GFS-5015NS | 500 | 150 | 0-3.5 | 70-140 | 110-260 |
| GFS-6015NS | 600 | 150 | 0-3.5 | 70-140 | 160-260 |
| GFS-7015NS | 700 | 150 | 0-3.5 | 70-140 | 160-260 |
| GFS-1320NS | 130 | 200 | 0-3.5 | 70-140 | 40-60 |
| GFS-2020NS | 200 | 200 | 0-3.5 | 70-140 | 40-80 |
| GFS-3020NS | 300 | 200 | 0-3.5 | 70-140 | 60-160 |
| GFS-4020NS | 400 | 200 | 0-3.5 | 70-140 | 80-260 |
| GFS-5020NS | 500 | 200 | 0-3.5 | 70-140 | 110-260 |
| GFS-6020NS | 600 | 200 | 0-3.5 | 70-140 | 160-260 |
| GFS-7020NS | 700 | 200 | 0-3.5 | 70-140 | 160-260 |
Specialty
- ● Height stability
Accessories
- ● Eccentric wheel unit. (Including Main driving shaft,Fixing bracket).
- ● Adjustable driving shaft.
- ● One way running device.
- Micro tuning adjuster
- PU roller (Top roller)
- Material two-face sided lubricator.
- Dual feeders, synchronism device.(For Push-Pull feeding requirement, it is required for a second feeder to be worked with)
