GFS Series
GFS Roll Feeder Series
GFS Roll Mechanical Roll Feeder adopts a mechanical synchronous drive design, working in synchronization with the press feed shaft to achieve precise material feeding. It features high speed, stable performance, and easy operation. Suitable for various types of sheet metal and high-speed continuous stamping lines, it provides efficient and reliable feeding performance.
Features
- Adjustable driving shat designd is to prevent the impact damaged from press while the stamping job is running.
- The feeder is adopting the high precision finishing parts to offer the longest life term for ensuring the stable productivity performance.
- The feeder is capable is capable for 600 S.P.M.under the progressive tooling stamping job.
- Easy adjustment allows working with wide range of material thickness.
- The feeder is driven by press directly,saving the energy and cost for sure.
Specifications
GFS Series Specification
| Model | Material width (mm) | Feed length (mm) | Material thickness (mm) | Pass thickness (mm) | Capacity of press (ton) |
|---|---|---|---|---|---|
| GFS-065NS | 60 | 50 | 0-1.6 | 55-100 | 5-20 |
| GFS-105NS | 100 | 50 | 0-1.6 | 55-100 | 5-20 |
| GFS-205NS | 200 | 50 | 0-1.6 | 55-100 | 20 |
| GFS-138NS | 130 | 80 | 0-1.6 | 60-120 | 10-60 |
| GFS-208NS | 200 | 80 | 0-1.6 | 60-120 | 20-60 |
| GFS-1310NS | 130 | 100 | 0-3.5 | 70-140 | 40-60 |
| GFS-2010NS | 200 | 100 | 0-3.5 | 70-140 | 40-80 |
| GFS-3010NS | 300 | 100 | 0-3.5 | 70-140 | 60-160 |
| GFS-4010NS | 400 | 100 | 0-3.5 | 70-140 | 80-260 |
| GFS-5010NS | 500 | 100 | 0-3.5 | 70-140 | 110-260 |
| GFS-6010NS | 600 | 100 | 0-3.5 | 70-140 | 160-260 |
| GFS-7010NS | 700 | 100 | 0-3.5 | 70-140 | 160-260 |
| GFS-1315NS | 130 | 150 | 0-3.5 | 70-140 | 50-60 |
| GFS-2015NS | 200 | 150 | 0-3.5 | 70-140 | 40-80 |
| GFS-3015NS | 300 | 150 | 0-3.5 | 70-140 | 60-160 |
| GFS-4015NS | 400 | 150 | 0-3.5 | 70-140 | 90-260 |
| GFS-5015NS | 500 | 150 | 0-3.5 | 70-140 | 110-260 |
| GFS-6015NS | 600 | 150 | 0-3.5 | 70-140 | 160-260 |
| GFS-7015NS | 700 | 150 | 0-3.5 | 70-140 | 160-260 |
| GFS-1320NS | 130 | 200 | 0-3.5 | 70-140 | 40-60 |
| GFS-2020NS | 200 | 200 | 0-3.5 | 70-140 | 40-80 |
| GFS-3020NS | 300 | 200 | 0-3.5 | 70-140 | 60-160 |
| GFS-4020NS | 400 | 200 | 0-3.5 | 70-140 | 80-260 |
| GFS-5020NS | 500 | 200 | 0-3.5 | 70-140 | 110-260 |
| GFS-6020NS | 600 | 200 | 0-3.5 | 70-140 | 160-260 |
| GFS-7020NS | 700 | 200 | 0-3.5 | 70-140 | 160-260 |
Specialty
- ● Height stability
Accessories

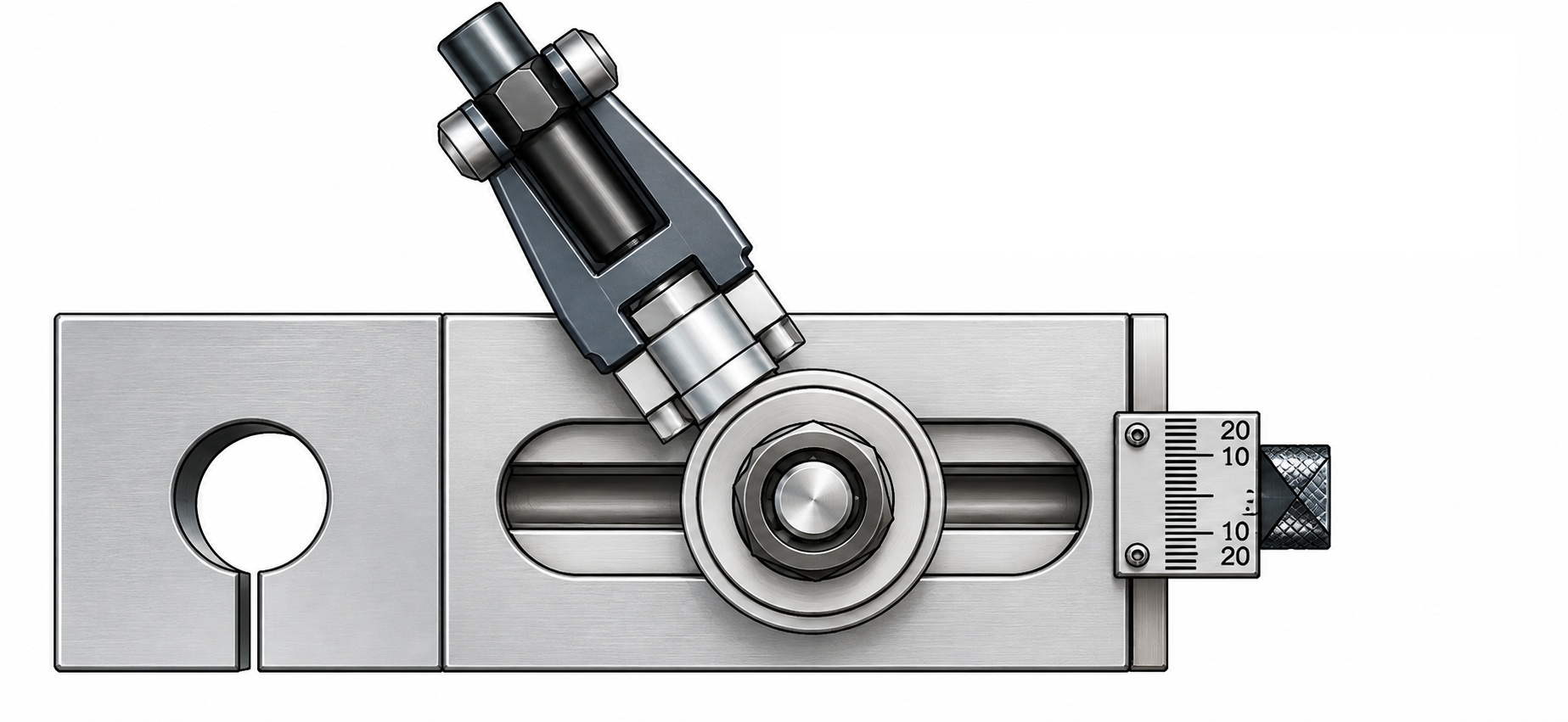

- ● Eccentric wheel unit. (Including Main driving shaft,Fixing bracket).
- ● Adjustable driving shaft.
- ● One way running device.
