NCE Series
3 IN 1 NCE Uncoiler/Straightener/Feeder Series (Economic And Convenient Type)
The 3 in 1 NCE Economical Compact Leveler Feeder Series integrates an uncoiler, leveler, and NC feeder into a single unit. Designed with simplicity, practicality, and high efficiency in mind, it effectively saves valuable factory floor space while reducing equipment configuration requirements.
The machine features a high-rigidity mechanical structure, combined with a servo control system and a user-friendly touch-screen interface. It performs coil unwinding, leveling, and automatic feeding prior to the stamping process, providing stable performance, accurate feeding, and convenient operation. Suitable for general steel coil stamping applications, the NCE Series offers a practical 3 in 1 feeding solution that combines production efficiency, space saving, and cost-effectiveness.
Features
- The new concept and design a reduced space requirement.
- High rigidity mechanical structure design and work with Mitsubishi servo control system to ensure the feeding accuracy.
- Friendly operation by adopting the human-machine interface control system.
- Auto feed monitoring function which can be a safe operation when the interlock with press stamping operation.
- Feeder rolls and straightener rolls have undergone special heat of HRC 60°for high precision leveling, rolls surface chromium-plating and then ground, high hardness, high wear-resistant characteristic and long service life cycle.

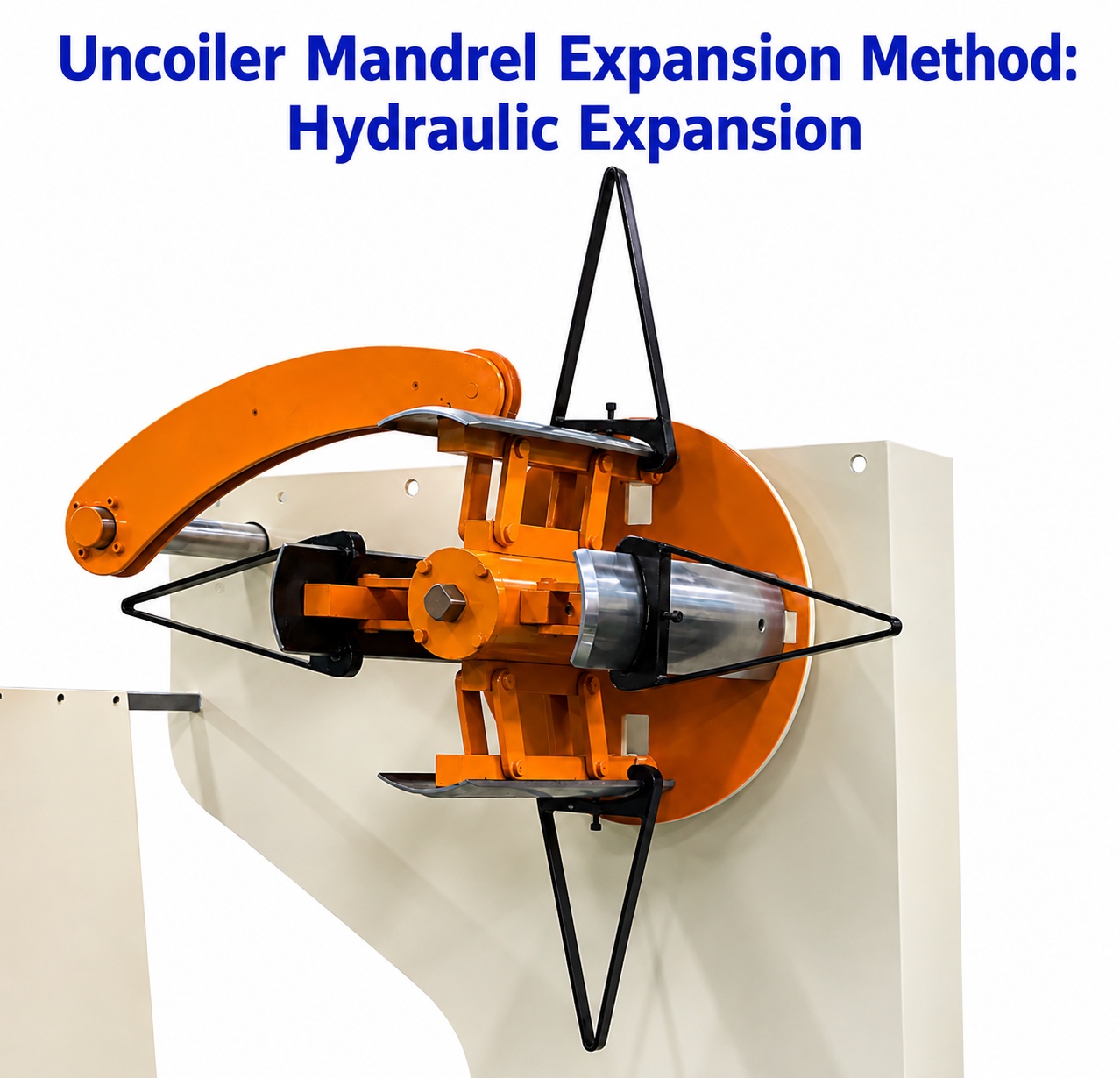

- Coordinate with the hydraulic expansion of uncoiler and flip-top straightener head design to increase the job efficiently.
Specifications
Straightener/Feeder Aspect
| Model | NCE-300 | NCE-400 | NCE-500 | |
|---|---|---|---|---|
| Width of Material | mm | 300 | 400 | 500 |
| Thickness of Material | mm | 0.4 ~ 3.2 | 0.4 ~ 3.2 | 0.4 ~ 3.2 |
| Feed Roll | mm | 72 x 2 pcs | 72 x 2 pcs | 72 x 2 pcs |
| Work Roll | mm | 51 x 7 pcs | 51 x 7 pcs | 51 x 7 pcs |
| Work Roll Arrangement | Upper 4 / Lower 3 | Upper 4 / Lower 3 | Upper 4 / Lower 3 | |
| Main Servo Motor | kW | 3.5 | 3.5 | 3.5 |
| Air Supply | kg/cm² | 5 | 5 | 5 |
| P. L. H Adjustment | mm | 1200 ±70 | 1200 ±70 | 1200 ±70 |
Uncoiler Aspect
| Width of Material | mm | 300 | 400 | 500 |
|---|---|---|---|---|
| Max. Coil Weight | kg | 1500 | 1500 | 2000 |
| Coil I. D. | mm | Ø450 ~ 520 | Ø450 ~ 520 | Ø450 ~ 520 |
| Max. Coil O. D. | mm | Ø1200 (Optional : 1500) | Ø1200 (Optional : 1500) | Ø1200 (Optional : 1500) |
| Uncoiler Expansion | Manual Type (Optional : Hydraulic) | Manual Type (Optional : Hydraulic) | Manual Type (Optional : Hydraulic) | |
| Uncoiler Motor | HP | 1 | 1 | 1 |
| Uncoiler Inverter | kW | 0.75 | 1.5 | 1.5 |
Major Dimension
| NCE-300 | NCE-400 | NCE-500 | |
|---|---|---|---|
| Machine Length (mm) | 3480 | 3480 | 3480 |
| Machine Width (mm) | 1240 | 1390 | 1540 |
| Machine Height (mm) | 2250 | 2250 | 2250 |
Straightening Performance
| Model | NCE-300 | NCE-400 | NCE-500 | |
|---|---|---|---|---|
| 0.4 | 300 | 400 | 500 | |
| 0.8 | 300 | 400 | 500 | |
| 1 | 300 | 400 | 500 | |
| 1.2 | 300 | 400 | 500 | |
| 1.5 | 300 | 400 | 400 | |
| Stock Thickness (mm) | 1.8 | 300 | 350 | 300 |
| 2 | 300 | 310 | 250 | |
| 2.3 | 260 | 250 | 130 | |
| 2.5 | 200 | 200 | - | |
| 2.8 | 150 | 150 | - | |
| 3 | 135 | 135 | - | |
| 3.2 | 120 | 120 | - |
Specialty
- • Saving space over 60%
- • Height efficiency
- • Feeding accuracy
- • Height stability
- • Height precision
-
Main menu : Can choose Chinese and English language menu -
Single Mode : For stamting testing run purpose and Single safe mode operation -
Press Mode : Continual operation mode under press control -
NC Mode : Continual operation mode under feeder control -
I/0 MONITORING SCREEN -
ALARM MESSAGE SCREEN
-
Material length setting: Applicable for multi-feeding length setting requirment. -
-
This function can record feeding length value to save or recall, and it is cooperation with dies number to record memory. -
Accessories
- • Programmable multi – pitch setting with cutting signal output function.( Cutting signal output function is able to control the cutting device. )
- • HMI touch screen control panel.
- • Two points micro adjustment (Attached with the dial gauge)
- • The straightener work rolls air release.
- • Uncoiler photoelectric sensor control and inverter control.
- • A-frame coil guide.
- • The straightener entrance used four points of material guide mechanism by manual type.
