NCF3 Series
3 IN 1 NCF Four Sections Precision Uncoiler/Leveler/Feeder Series
The 3 in 1 NCF Four-Stage Leveler Feeder Series integrates an uncoiler, four-stage leveling system, and NC servo feeder into a single unit. Specifically designed for ultra-high-precision metal stamping production lines, its integrated design effectively saves valuable factory floor space while improving overall production efficiency.

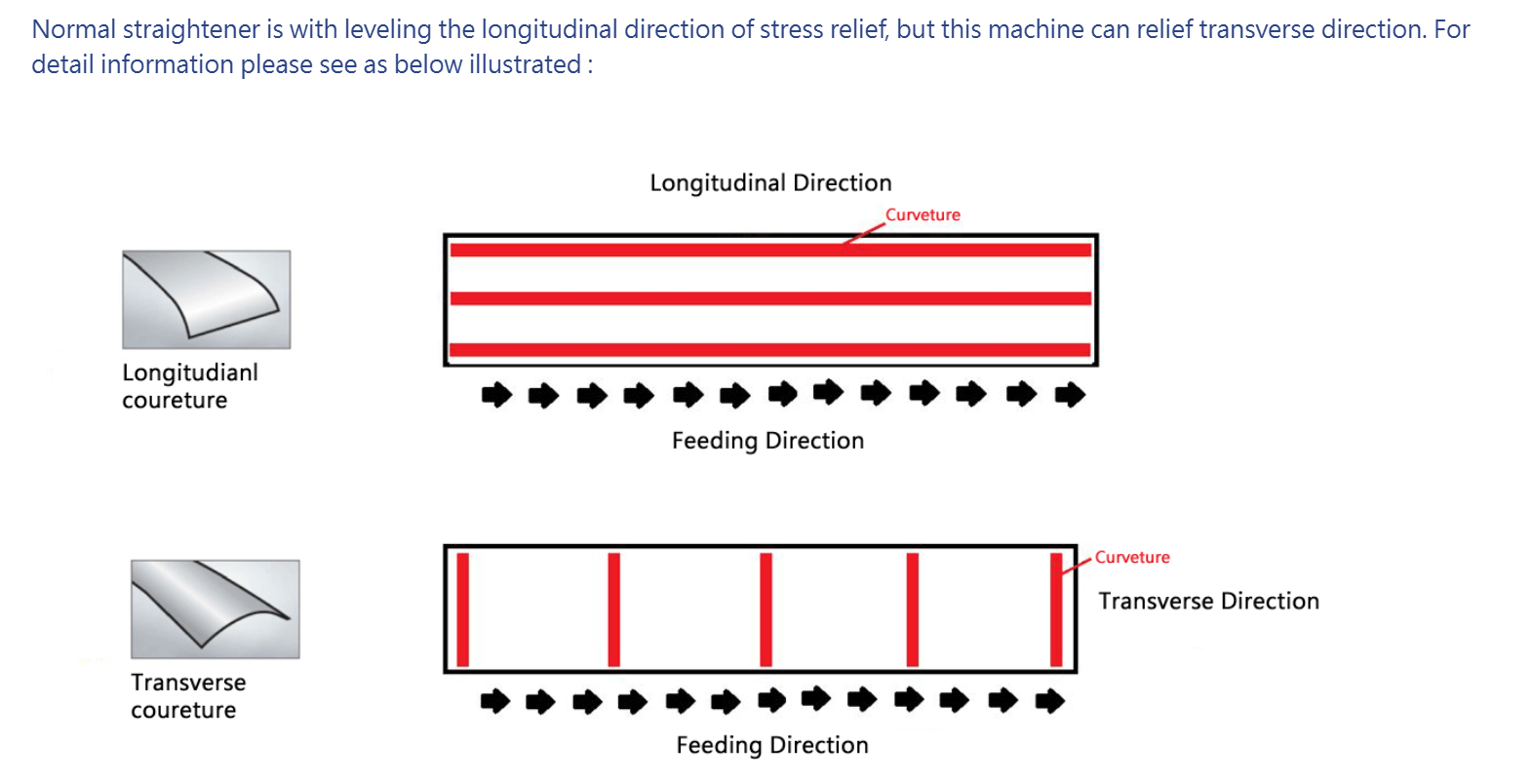

The machine features a unique four-stage leveling design that comprehensively enhances material leveling performance, minimizing the impact of inner and outer coil curvature on product quality while further improving material flatness, leveling accuracy, and feeding stability. It also incorporates a unique leveler head opening device and high-rigidity mechanical structure, combined with a user-friendly operation interface for more convenient and efficient operation. These features maximize machine performance to meet the demands of modern ultra-high-precision stamping production, making the NCF Series ideal for a wide range of precision metal stamping applications.
Features
- New concept and design reduces space requirements.
- The unique Patent design.(Taiwan & China)
- Flip – Top leveler head device for easy maintenance operation.
- High rigidity mechanical structure design and work with Mitsubishi servo control system to ensure the feeding accuracy.
- Friendly operation by adopting Human Machine Interface control system.
- Auto feed monitoring function which can be a safety operation when the unit interlock with press stamping operation.
- Feeder rolls and straightener rolls have undergone special heat treatment of HRC 60° for high precision leveling, rolls surface chromium-plating and then ground, high hardness, high wear-resistant characteristic and long service life cycle.
- Uncoiler hydraulic expansion design makes the job more efficiently.
- Collocation twin type uncoiler and coil car, save loading coil time increase efficiency.
Specifications
NCF3 Series for 0.5 ~ 3.0 mm
| Model | NCF3-300 | NCF3-400 | NCF3-500 | NCF3-600 | |
|---|---|---|---|---|---|
| Width of Material | mm | 300 | 400 | 500 | 600 |
| Thickness of Material | mm | 0.5 ~ 3.0 | 0.5 ~ 3.0 | 0.5 ~ 3.0 | 0.5 ~ 3.0 |
| Feed Roll | mm | 114 x 2 pcs | 114 x 2 pcs | 114 x 2 pcs | 114 x 2 pcs |
| Work Roll | mm | 60 x 24 pcs | 60 x 24 pcs | 60 x 24 pcs | 72 x 24 pcs |

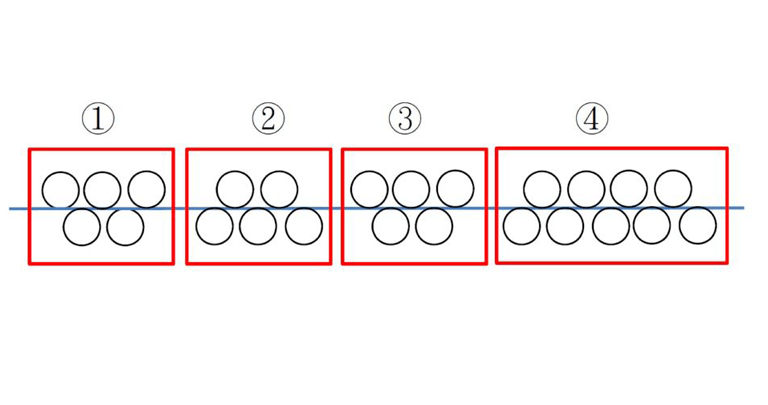

| Work Roll Arrangement | 1ˢᵗ Section:Upper 3 / Lower 2, 2ⁿᵈ Section: Upper 2 / Lower 3, 3ʳᵈ Section:Upper 3 / Lower 2, 4ᵗʰ Section:Upper 4 / Lower 5 | 1ˢᵗ Section:Upper 3 / Lower 2, 2ⁿᵈ Section: Upper 2 / Lower 3, 3ʳᵈ Section:Upper 3 / Lower 2, 4ᵗʰ Section:Upper 4 / Lower 5 | 1ˢᵗ Section:Upper 3 / Lower 2, 2ⁿᵈ Section: Upper 2 / Lower 3, 3ʳᵈ Section:Upper 3 / Lower 2, 4ᵗʰ Section:Upper 4 / Lower 5 | 1ˢᵗ Section:Upper 3 / Lower 2, 2ⁿᵈ Section: Upper 2 / Lower 3, 3ʳᵈ Section:Upper 3 / Lower 2, 4ᵗʰ Section:Upper 4 / Lower 5 | |
| Main Servo Motor | kW | 5.0 | 5.0 | 5.0 | 7.0 |
| Air Supply | kg/cm² | 5 | 5 | 5 | 5 |
| P. L. H Adjustment | mm | Cust. Demand High ±100 | Cust. Demand High ±100 | Cust. Demand High ±100 | Cust. Demand High ±100 |
NCF3 Uncoiler Specifications
| Width of Material | mm | 300 | 400 | 500 | 600 |
|---|---|---|---|---|---|
| Max. Coil Weight | kg | 2000 | 2000 | 3000 | 3000 |
| Coil I. D. | mm | Ø450 ~ 520 | Ø450 ~ 520 | Ø450 ~ 520 | Ø450 ~ 520 |
| Max. Coil O. D. | mm | Ø1200 or Ø1500 | Ø1200 or Ø1500 | Ø1200 or Ø1500 | Ø1200 or Ø1500 |
| Uncoiler Expansion | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |
| Uncoiler Motor | HP | 2 | 2 | 3 | 3 |
| Uncoiler Inverter | kW | 1.5 | 2.2 | 2.2 | 3.7 |
Specialty
-

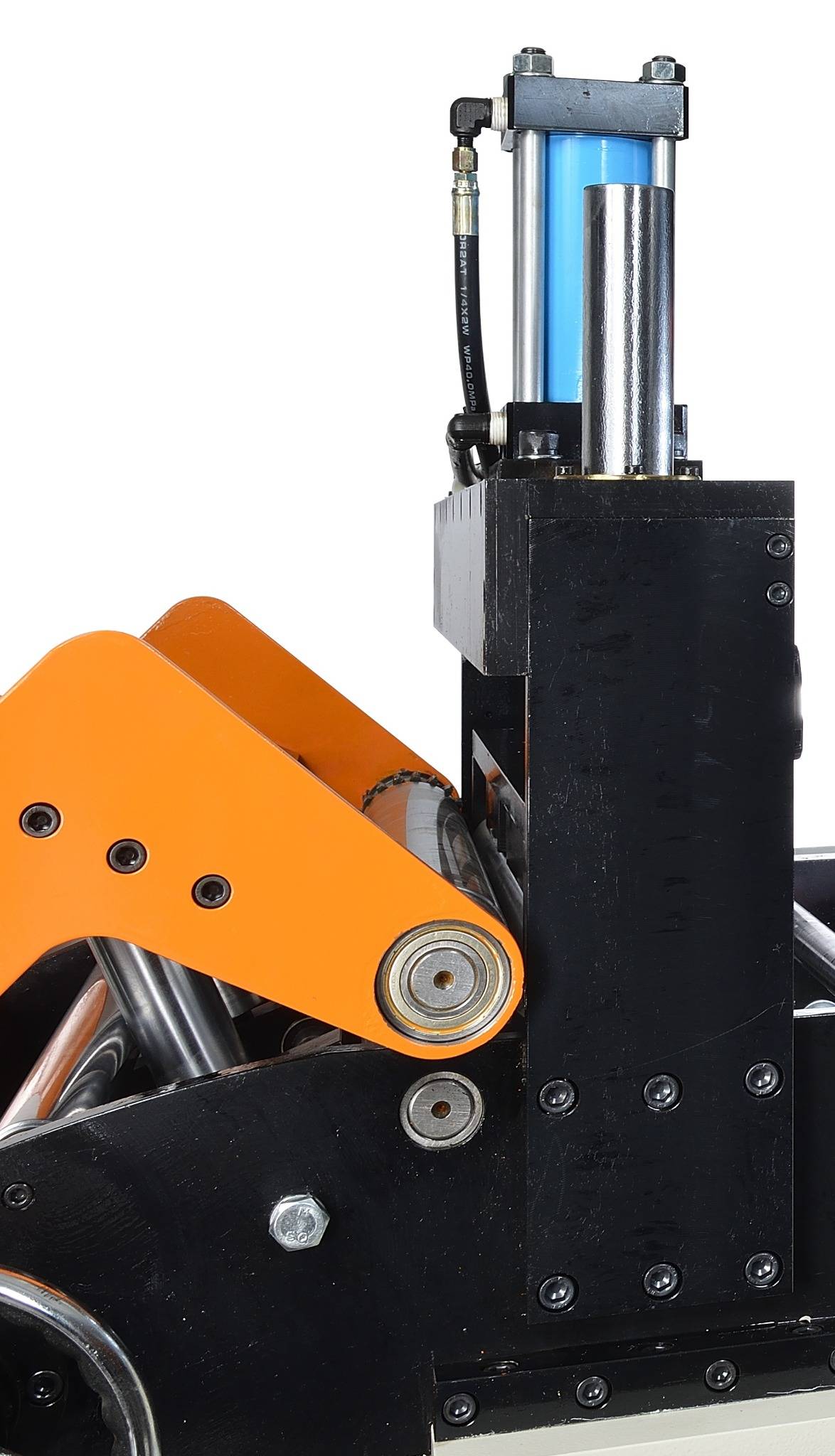

Flip – Top leveler head device. - .
- • Height leveling for thin material
- • Height stability
- • Height efficiency
- • Height precision
- • Feeding accuracy
- • Saving space over 70%
-
Main menu : Can choose Chinese and English language menu -
Single Mode : For stamting testing run purpose and Single safe mode operation -
Press Mode : Continual operation mode under press control -
NC Mode : Continual operation mode under feeder control -
I/0 MONITORING SCREEN -
ALARM MESSAGE SCREEN
-
Material length setting: Applicable for multi-feeding length setting requirment. -
-
This function can record feeding length value to save or recall, and it is cooperation with dies number to record memory. -
Accessories
- Leveling Features
- • Programmable multi – pitch setting with cutting signal output function. (Cutting signal output function is able to control the cutting device.)
- • HMI touch screen control panel.
- • 2 points micro adjustment (Attached with dial gauge)
- • Flip – Top leveler head device.
- • Leveler work rolls air release.
- • Motor drive uncoiler with inverter control.
- • Uncoiler photoelectric sensor control unit.
- • Uncoiler hydraulic mandrel expansion device.
- • Manual coil guide.
- • Snubber arm.

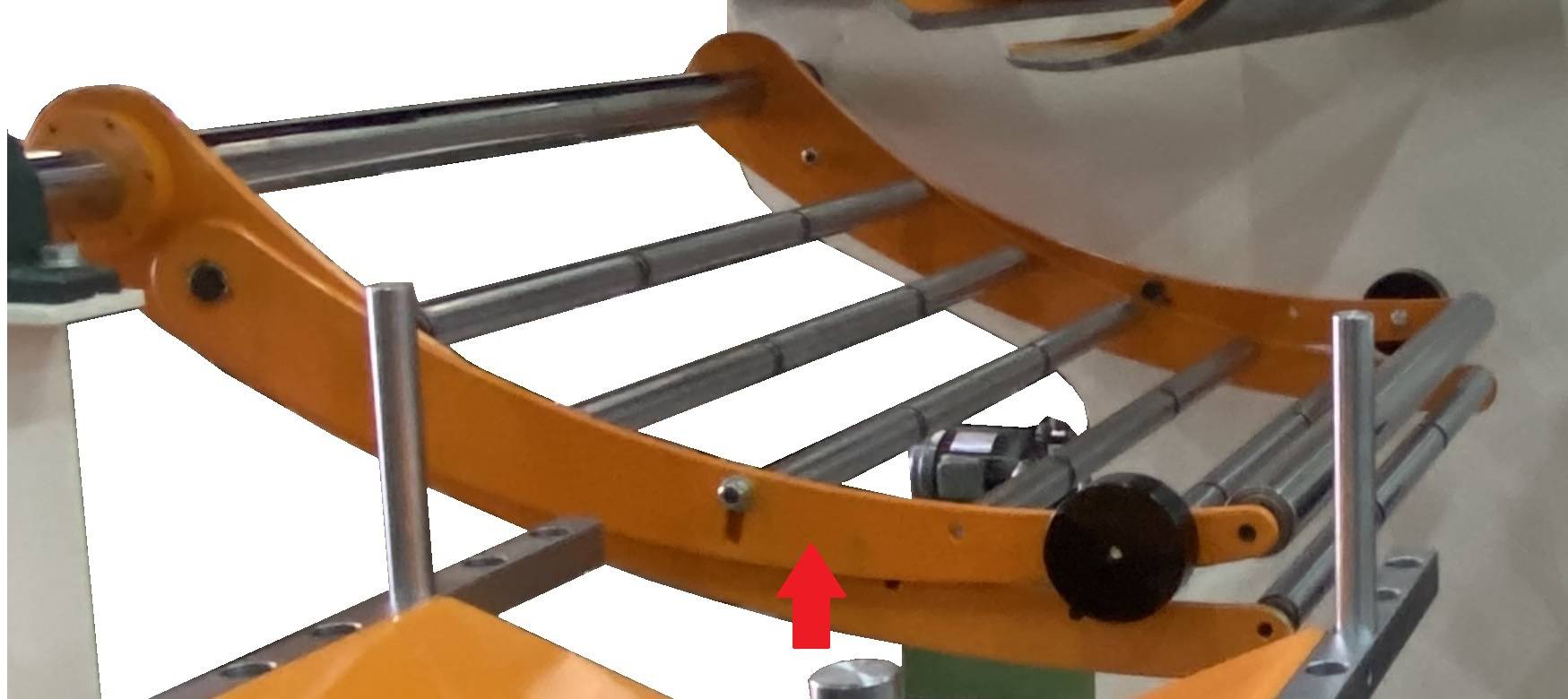

- • Carry over guide.
- • Peeler.
