NCJ6 Series

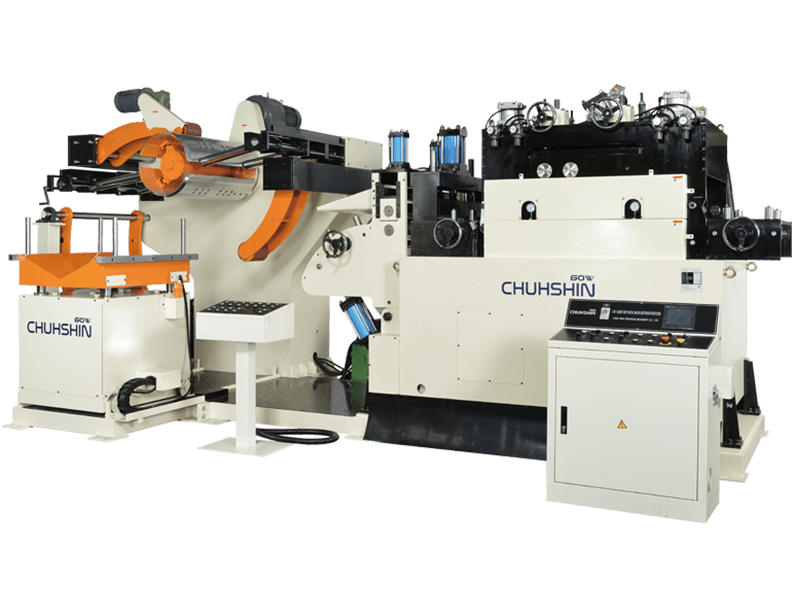

3 IN 1 NCJ Heavy Duty Uncoiler / Straightener / Feeder Series
The 3-in-1 NCJ Series integrates an uncoiler, leveler, and NC servo feeder into a single compact unit. Featuring a high-rigidity mechanical structure, it is specifically designed for high-tensile heavy-gauge metal stamping production lines. Its integrated design enhances machine performance while effectively saving valuable factory floor space.
Before the stamping process, the machine performs coil unwinding, precision leveling, and high-accuracy NC automatic feeding, significantly improving production efficiency and reducing manual labor requirements. Equipped with a user-friendly operation interface, the NCJ Series offers simple operation and stable performance, fully meeting the modern stamping industry's demands for high productivity, high precision, and exceptional reliability. It is widely suitable for stamping high-tensile steel sheets, heavy-gauge steel, and other heavy-gauge metal materials.
Features
- High rigidity mechanical structure design and work with Mitsubishi servo control system to ensure the feeding accuracy.
- Multi-functions touch panel designed, easy to configure and operation increase efficiency with pressing machine high perform connection operation.
- Special clamping peeler device, offering the solution easier to solve the customer in feeding material problem.
- Straightener / Precision leveler adopting screw lift designed by motor drive to easy adjustment the 3 IN 1 feeder machine pass line high as press machine change different dies.
- Feeder rolls and straightener rolls have undergone special heat treatment of HRC 60° for high precision leveling, rolls surface chromium-plating and then ground, high hardness, high wear-resistant characteristic and long service life cycle.
- Uncoiler hydraulic expansion design makes the job more efficiently.
- Collocation twin type uncoiler and coil car, save loading coil time increase efficiency.
Specifications
NCJ6 Series for 1.0 ~ 6.0 mm
| Model | NCJ6-400 | NCJ6-600 | NCJ6-800 | NCJ6-1000 | NCJ6-1250 | |
|---|---|---|---|---|---|---|
| Width of Material | mm | 400 | 600 | 800 | 1000 | 1250 |
| Thickness of Material | mm | 1.0 ~ 6.0 | 1.0 ~ 6.0 | 1.0 ~ 6.0 | 1.0 ~ 6.0 | 1.0 ~ 6.0 |
| Feed Roll | mm | 144 x 4 pcs | 144 x 4 pcs | 144 x 4 pcs | 144 x 4 pcs | 144 x 4 pcs |
| Work Roll | mm | 114 x 7 pcs | 114 x 7 pcs | 114 x 7 pcs | 114 x 7 pcs | 114 x 7 pcs |
| Work Roll Arrangement | Upper 4 / Lower 3 | Upper 4 / Lower 3 | Upper 4 / Lower 3 | Upper 4 / Lower 3 | Upper 4 / Lower 3 | |
| Main Servo Motor | kW | 7.0 | 7.0 | 11 | 11 | 15 |
| Air Supply | kg/cm² | 5 | 5 | 5 | 5 | 5 |
| P. L. H Adjustment | mm | Cust. Demand High ±100 | Cust. Demand High ±100 | Cust. Demand High ±100 | Cust. Demand High ±100 | Cust. Demand High ±100 |
NCJ6 Uncoiler Specifications
| Width of Material | mm | 400 | 600 | 800 | 1000 | 1250 |
|---|---|---|---|---|---|---|
| Max. Coil Weight | kg | 3000 | 5000 | 8000 | 8000 | 10000 |
| Coil I. D. | mm | Ø460 ~ 520 | Ø460 ~ 520 | Ø480 ~ 520 | Ø480 ~ 520 | Ø480 ~ 520 |
| Max. Coil O. D. | mm | Ø1200 or Ø1500 (Optional) | Ø1200 or Ø1500 (Optional) | Ø1200 or Ø1500 (Optional) | Ø1200 or Ø1500 (Optional) | Ø1200 or Ø1500 (Optional) |
| Uncoiler Expansion | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |
| Uncoiler Motor | HP | 3 | 5 | 7.5 | 7.5 | 10 |
| Uncoiler Inverter | kW | 3.7 | 3.7 | 5.5 | 5.5 | 7.5 |
Specialty
-

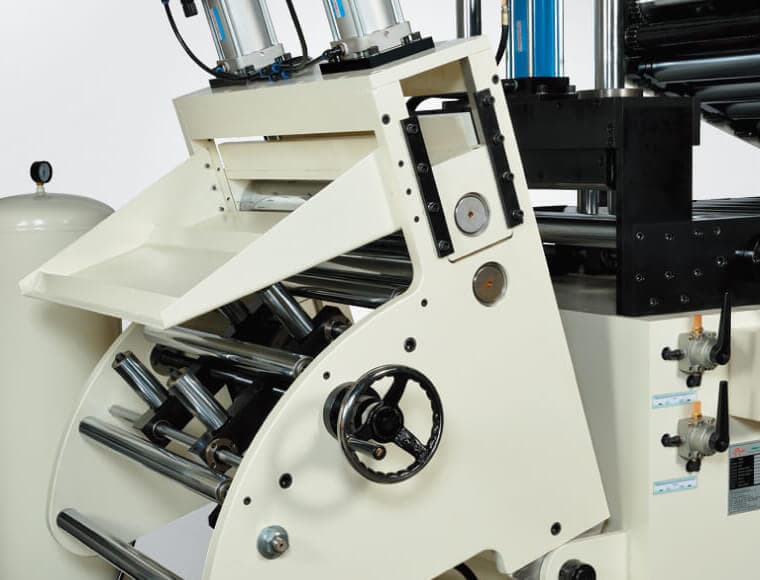

Clamping peeler device. -

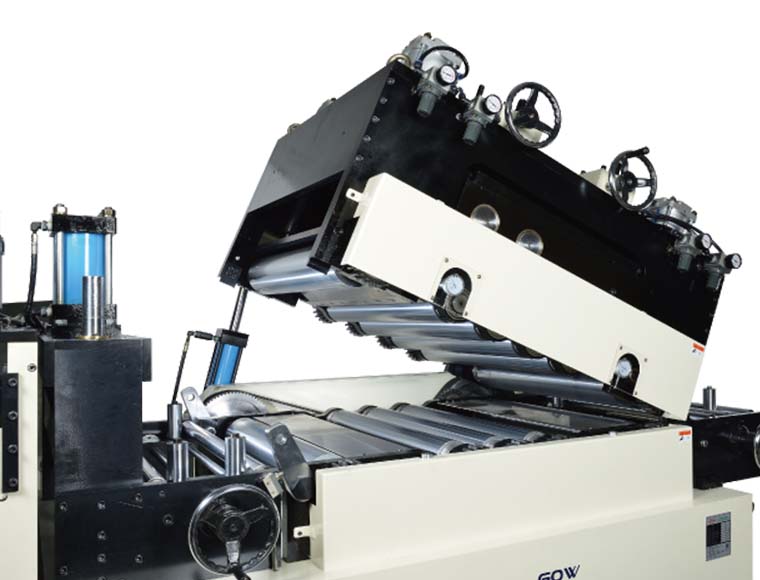

Flip – Top straightener head device. (Optional ) - • For high tensile material
- • Height efficiency
- • Feeding accuracy
- • Saving space over 70%
- • Height stability
- • Height precision
- • New Clamping peeler device
-

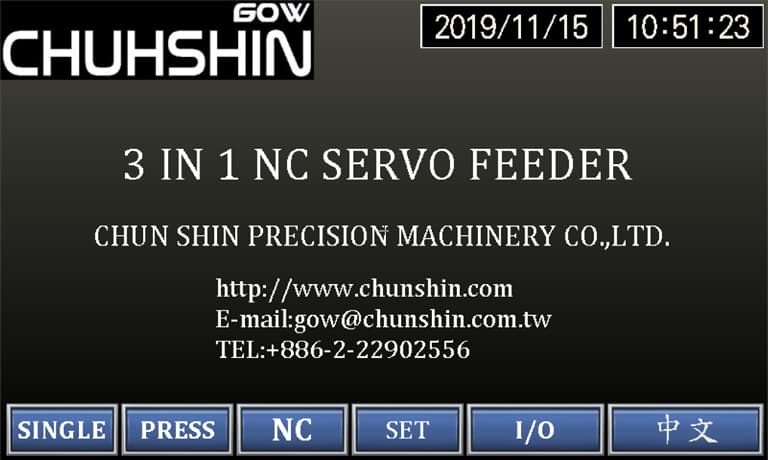

Main menu : Can choose Chinese and English language menu -

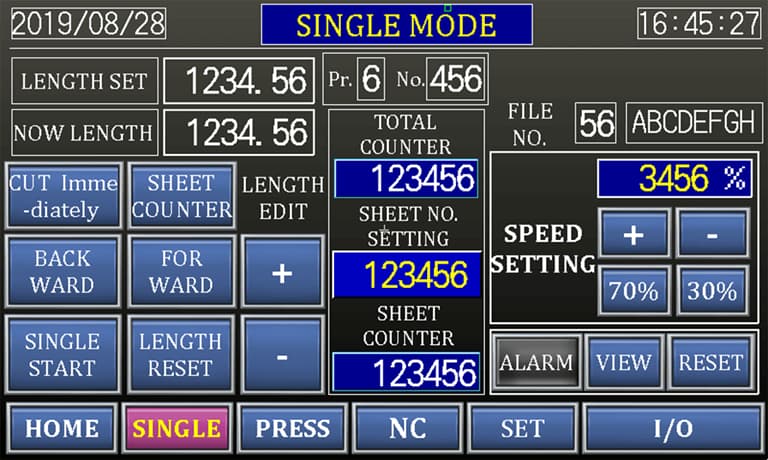

Single Mode : For stamting testing run purpose and Single safe mode operation -

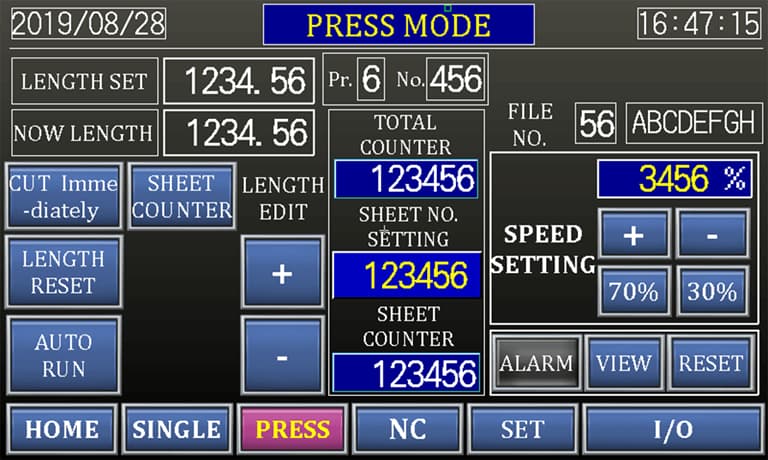

Press Mode : Continual operation mode under press control -

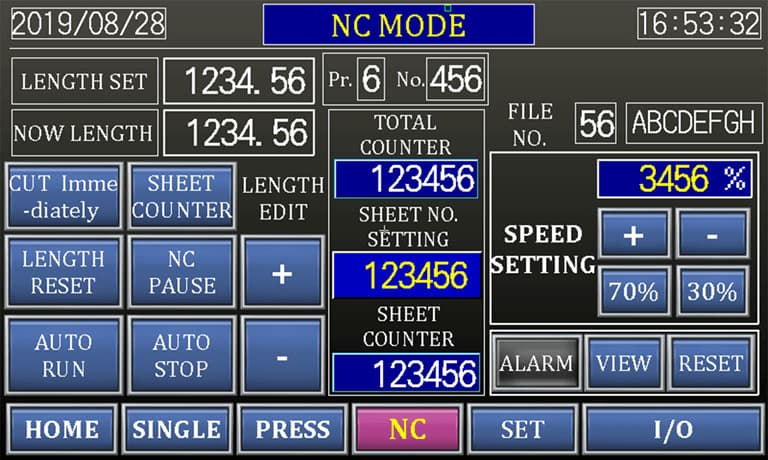

NC Mode : Continual operation mode under feeder control -

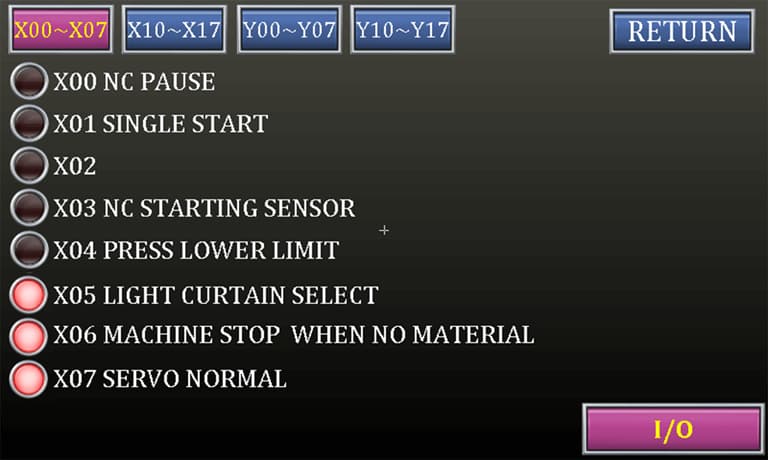

I/0 MONITORING SCREEN -

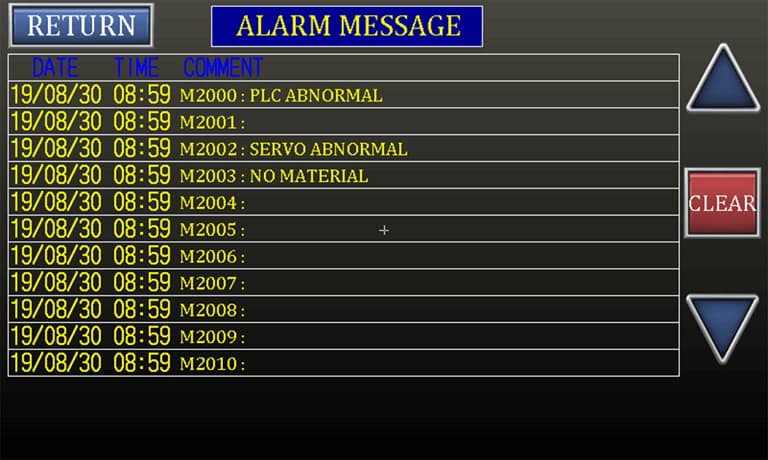

ALARM MESSAGE SCREEN
-

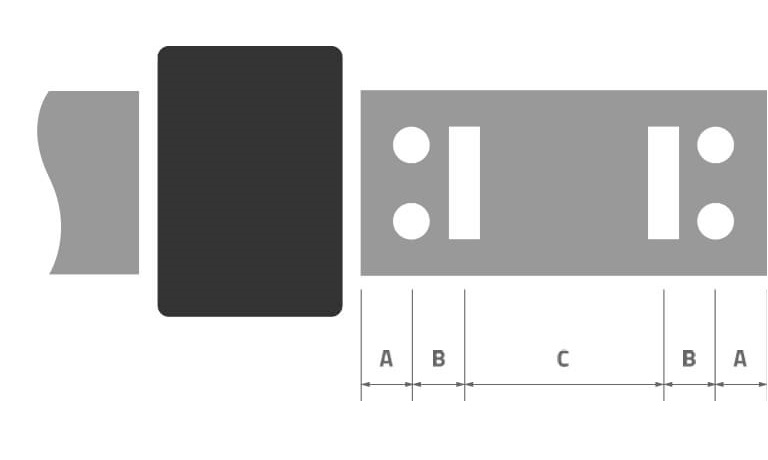

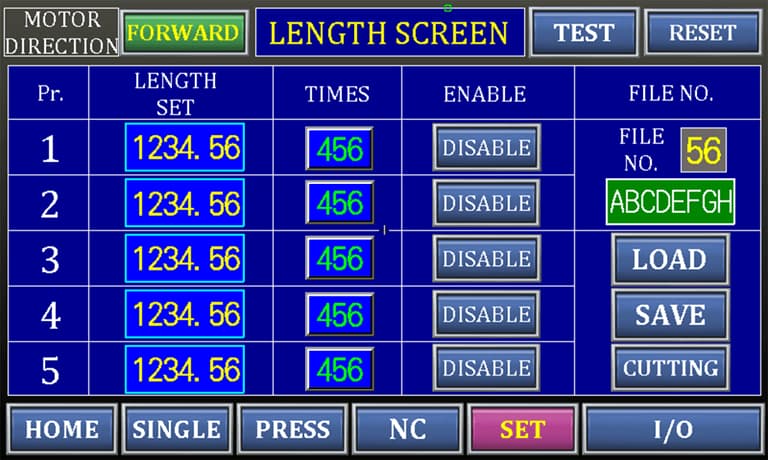

Material length setting: Applicable for multi-feeding length setting requirment. -
-

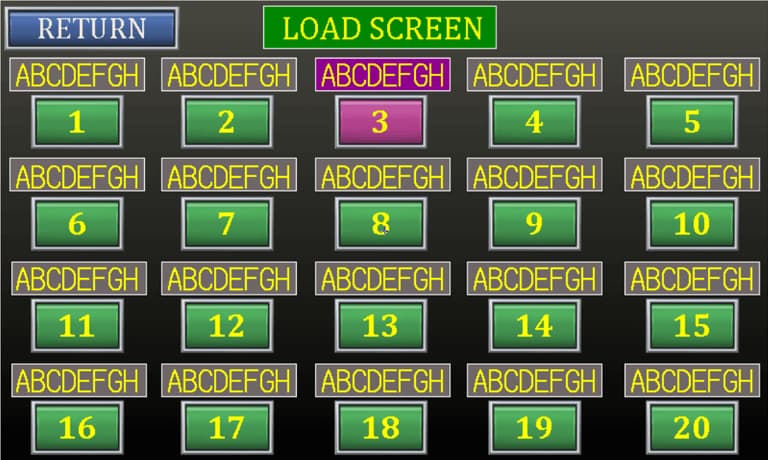

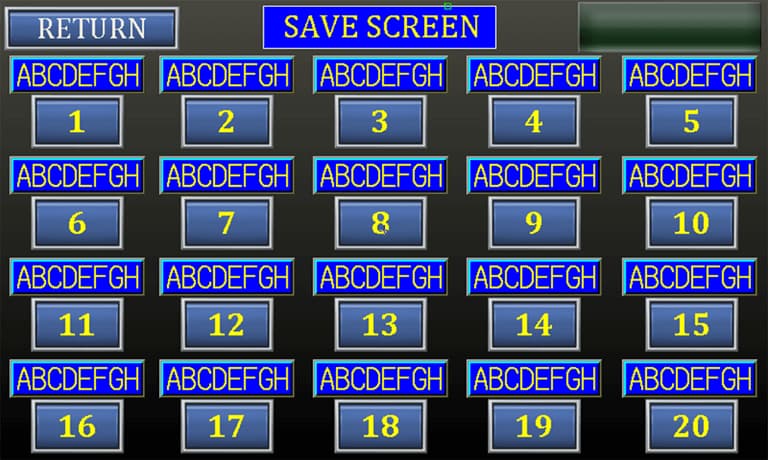

This function can record feeding length value to save or recall, and it is cooperation with dies number to record memory. -
Accessories
- • Programmable multi – pitch setting with cutting signal output function. (Cutting signal output function is able to control the cutting device.)
- • HMI touch screen control panel.
- • 2 points micro adjustment (Attached with dial gauge)
- • Straightener work rolls air release.
- • Motor drive uncoiler with inverter control.
- • Uncoiler photoelectric sensor control unit.
- • Uncoiler hydraulic mandrel expansion device.
- • Manual coil guide.
- • Snubber arm.
- • Carry over guide.
- • Carry over clamp.
- • Clamping Peeler Device.
- • Pre – bender.
- • Coil car (Coil loading assisting device).
- • Motorized pass line high adjustment device.
