NCJ4 Series

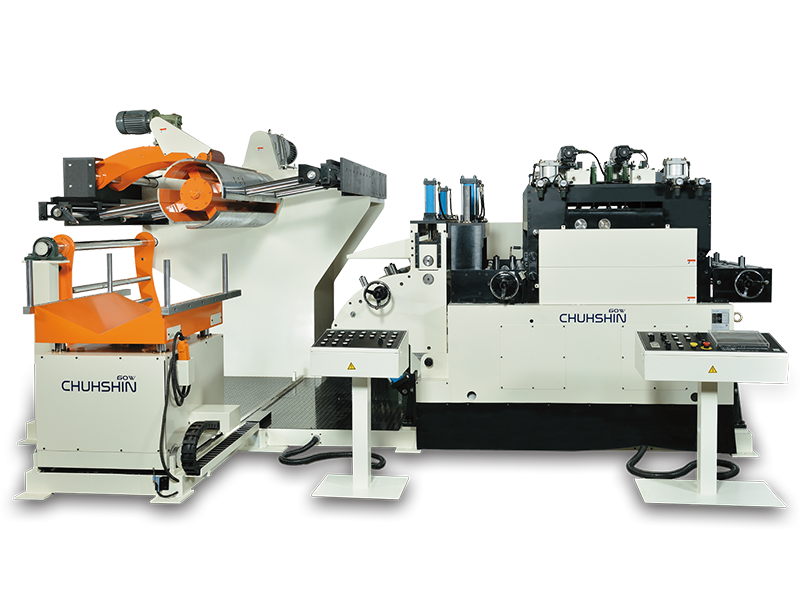

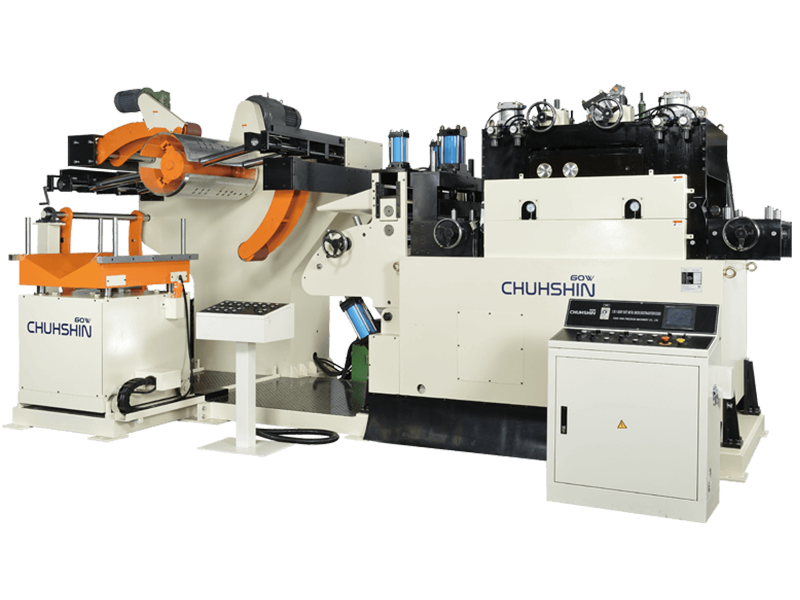

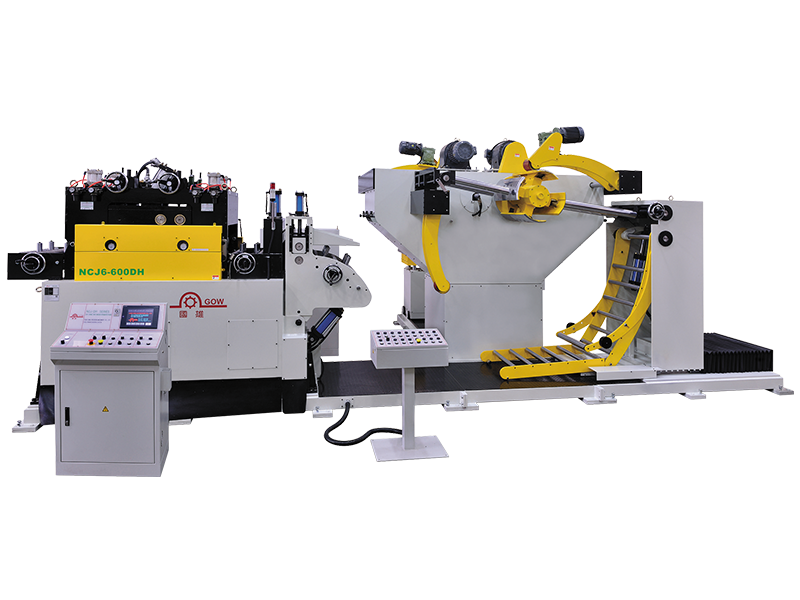

3 IN 1 NCJ Heavy Duty Uncoiler / Straightener / Feeder Series
Solutions
AI IndustryDisplay Panel IndustryElectronics IndustryMedical IndustryHome Appliance IndustryHardware Industry
The 3 IN 1 NCJ machine is a high-efficiency integrated system that combines feeding, leveling, and cutting functions into a single unit, specifically designed for metal processing production lines. It automates material handling and is suitable for various metals such as steel, aluminum, and stainless steel.
Features
- High rigidity mechanical structure design and work with Mitsubishi servo control system to ensure the feeding accuracy.
- Multi-functions touch panel designed, easy to configure and operation increase efficiency with pressing machine high perform connection operation.
- Special clamping peeler device, offering the solution easier to solve the customer in feeding material problem.
- Straightener / Precision leveler adopting screw lift designed by motor drive to easy adjustment the 3 IN 1 feeder machine pass line high as press machine change different dies.
- Feeder rolls and straightener rolls have undergone special heat treatment of HRC 60° for high precision leveling, rolls surface chromium-plating and then ground, high hardness, high wear-resistant characteristic and long service life cycle.
- Uncoiler hydraulic expansion design makes the job more efficiently.
- Collocation twin type uncoiler and coil car, save loading coil time increase efficiency.
Specifications
NCJ4 Series for 0.8 ~ 4.5 mm
| Model | NCJ4-400 | NCJ4-600 | NCJ4-800 | NCJ4-1000 | NCJ4-1250 | |
|---|---|---|---|---|---|---|
| Width of Material | mm | 400 | 600 | 800 | 1000 | 1250 |
| Thickness of Material | mm | 0.8 ~ 4.5 | 0.8 ~ 4.5 | 0.8 ~ 4.5 | 0.8 ~ 4.5 | 0.8 ~ 4.5 |
| Feed Roll | mm | 136 x 4 pcs | 136 x 4 pcs | 136 x 4 pcs | 136 x 4 pcs | 136 ~ 4 pcs |
| Work Roll | mm | 80 x 7 pcs | 80 x 7 pcs | 80 x 7 pcs | 80 x 7 pcs | 80 x 7 pcs |
| Work Roll Arrangement | Upeer 4 / Lower 3 | Upeer 4 / Lower 3 | Upeer 4 / Lower 3 | Upeer 4 / Lower 3 | Upeer 4 / Lower 3 | |
| Main Servo Motor | kW | 5.0 | 7.0 | 7.0 | 11 | 11 |
| Air Supply | kg/cm² | 5 | 5 | 5 | 5 | 5 |
| P. L. H Adjustment | mm | Cust. Demand High ±100 | Cust. Demand High ±100 | Cust. Demand High ±100 | Cust. Demand High ±100 | Cust. Demand High ±100 |
Uncoiler Specifications
| Width of Material | mm | 400 | 600 | 800 | 1000 | 1250 |
|---|---|---|---|---|---|---|
| Max. Coil Weight | kg | 3000 | 5000 | 8000 | 8000 | 10000 |
| Coil I. D. | mm | Ø460 ~ 520 | Ø460 ~ 520 | Ø480 ~ 520 | Ø480 ~ 520 | Ø480 ~ 520 |
| Max. Coil O. D. | mm | Ø1200 or Ø1500 (Optional) | Ø1200 or Ø1500 (Optional) | Ø1200 or Ø1500 (Optional) | Ø1200 or Ø1500 (Optional) | Ø1200 or Ø1500 (Optional) |
| Uncoiler Expansion | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |
| Uncoiler Motor | HP | 3 | 5 | 7.5 | 7.5 | 10 |
| Uncoiler Inverter | kW | 3.7 | 3.7 | 5.5 | 5.5 | 7.5 |
Specialty
- • For high tensile material
- • Height efficiency
- • Feeding accuracy
- • Saving space over 70%
- • Height stability
- • Height precision

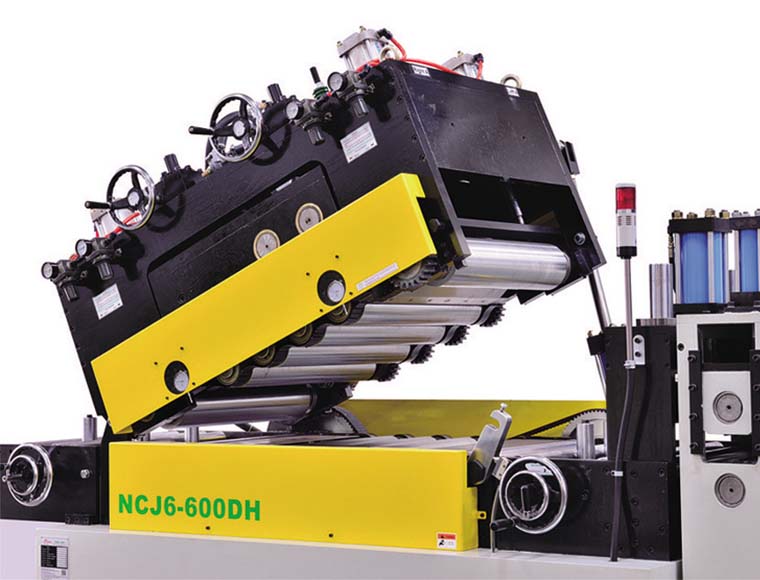

- • Flip-Top Straightener Head Device

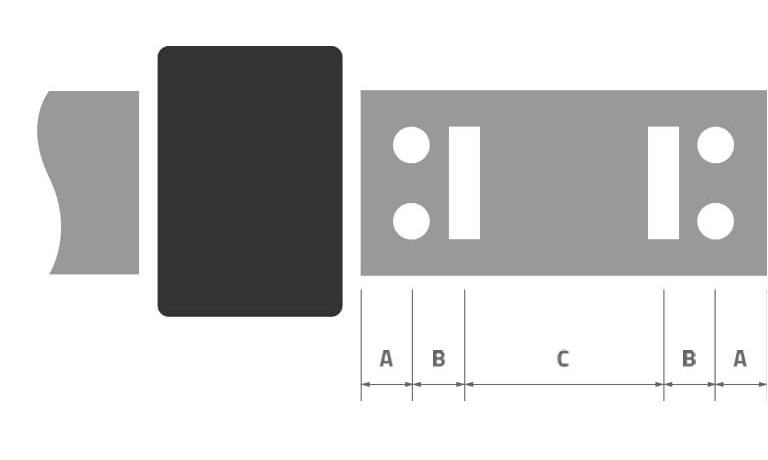

- • New Clamping peeler device
-

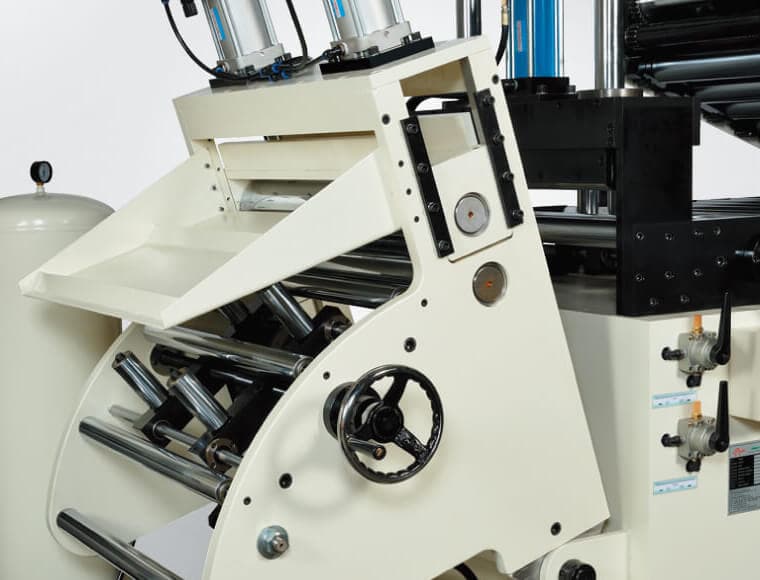

Clamping peeler device
-

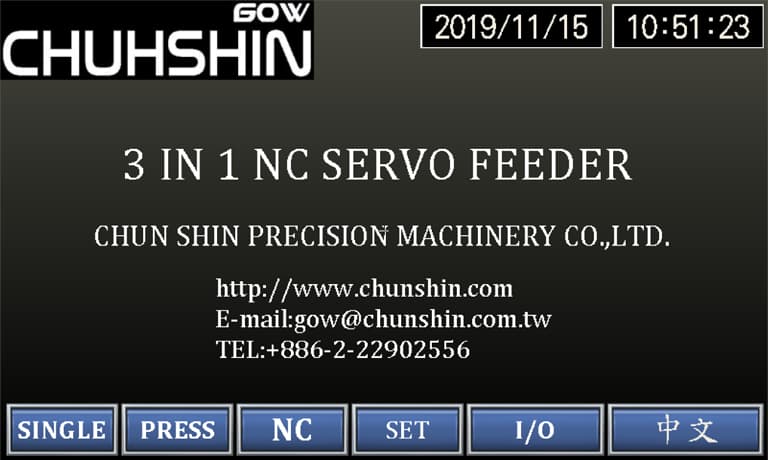

Main menu : Can choose Chinese and English language menu -

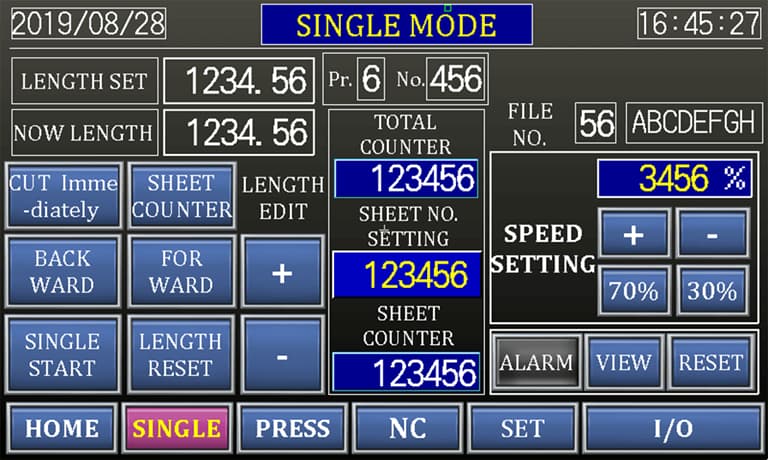

Single Mode : For stamting testing run purpose and Single safe mode operation -

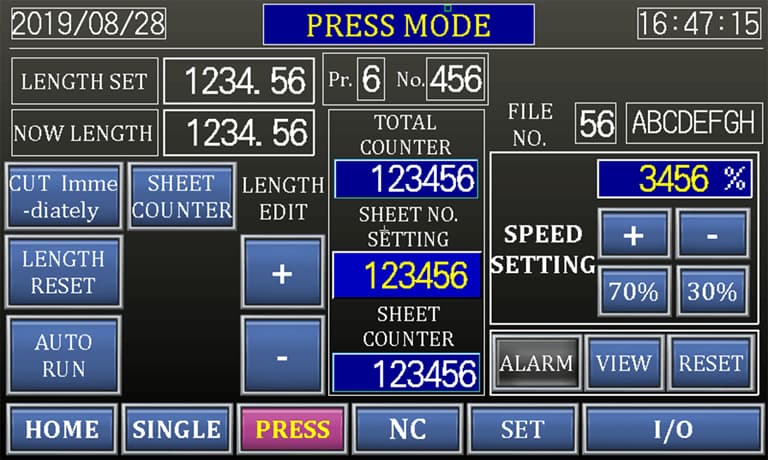

Press Mode : Continual operation mode under press control -

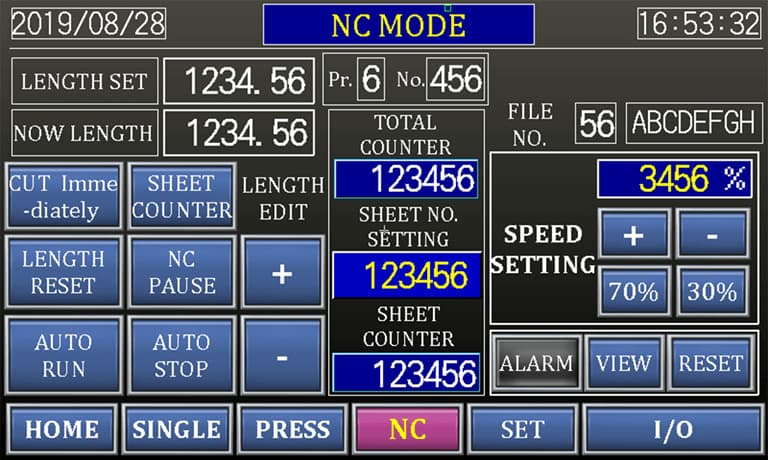

NC Mode : Continual operation mode under feeder control -

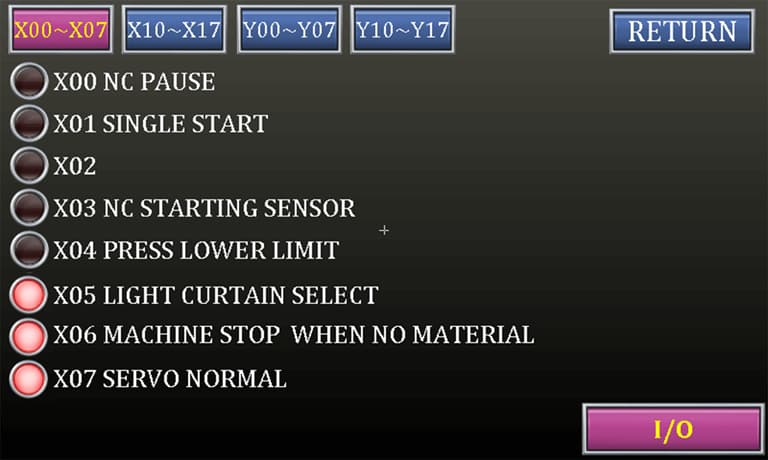

I/0 MONITORING SCREEN -

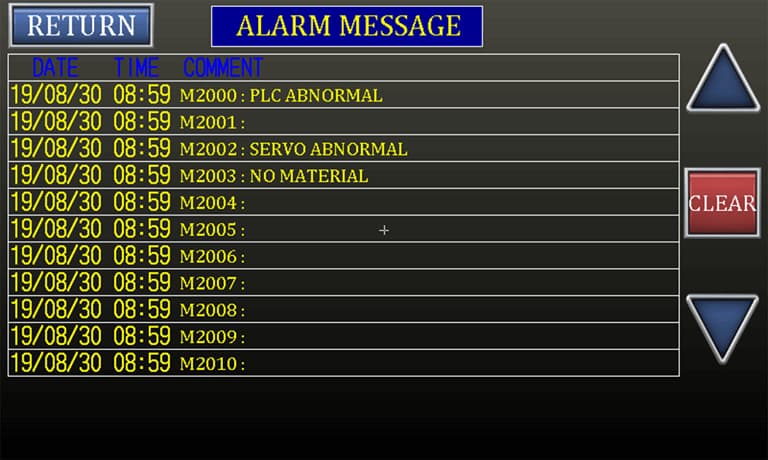

ALARM MESSAGE SCREEN
-

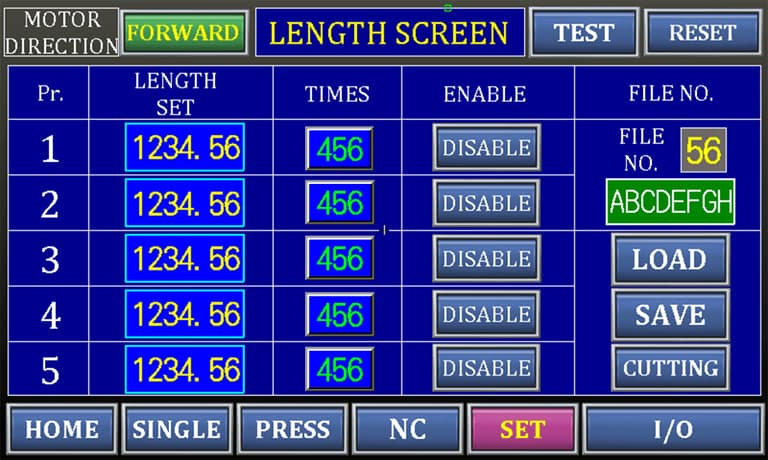

Material length setting: Applicable for multi-feeding length setting requirment. -
-

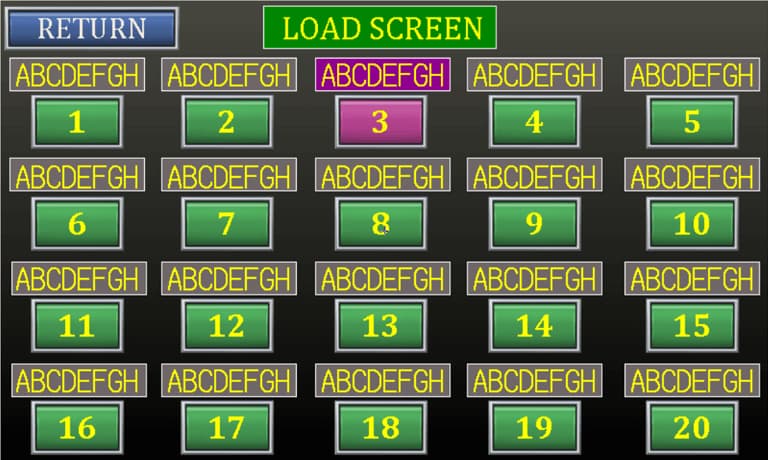

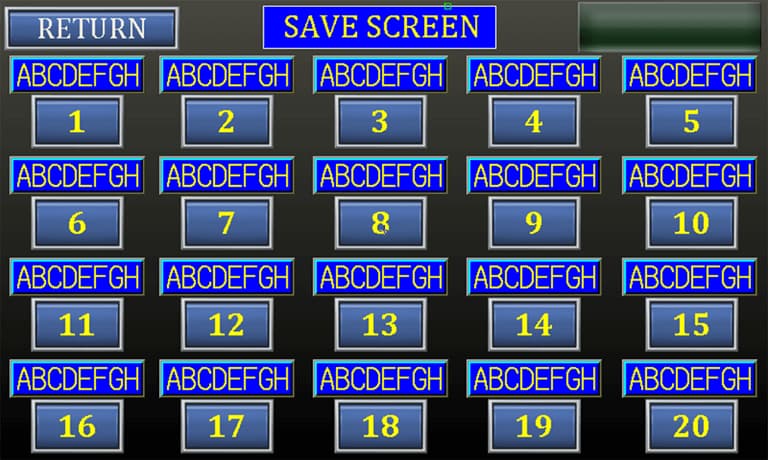

This function can record feeding length value to save or recall, and it is cooperation with dies number to record memory. -
Accessories
- • Programmable multi – pitch setting with cutting signal output function. (Cutting signal output function is able to control the cutting device.)
- • HMI touch screen control panel.
- • 2 points micro adjustment (Attached with dial gauge)
- • Straightener work rolls air release.
- • Motor drive uncoiler with inverter control.
- • Uncoiler photoelectric sensor control unit.
- • Uncoiler hydraulic mandrel expansion device.
- • Manual coil guide.
- • Snubber arm.
- • Carry over guide.
- • Carry over clamp.
- • Peeler.
- • Pre – bender.
- • Coil car (Coil loading assisting device).
- • Motorized pass line high adjustment device.
