NCT5 Series

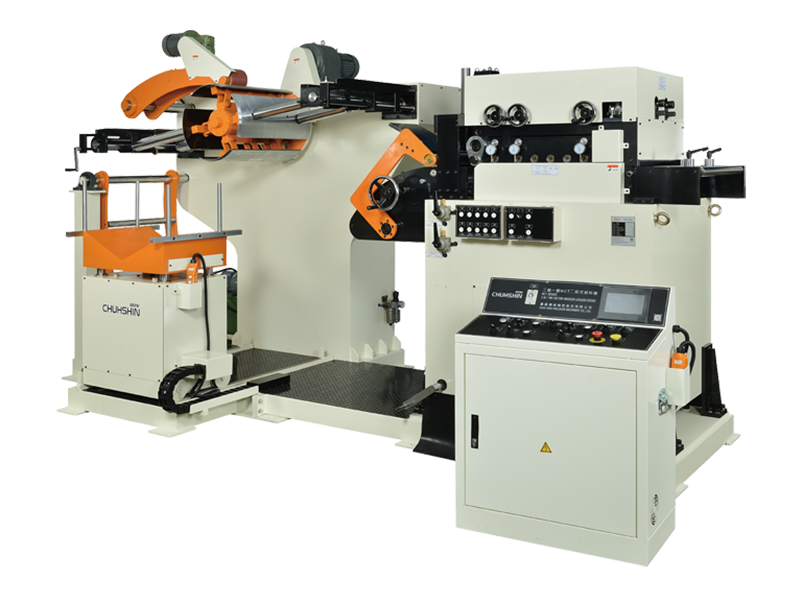

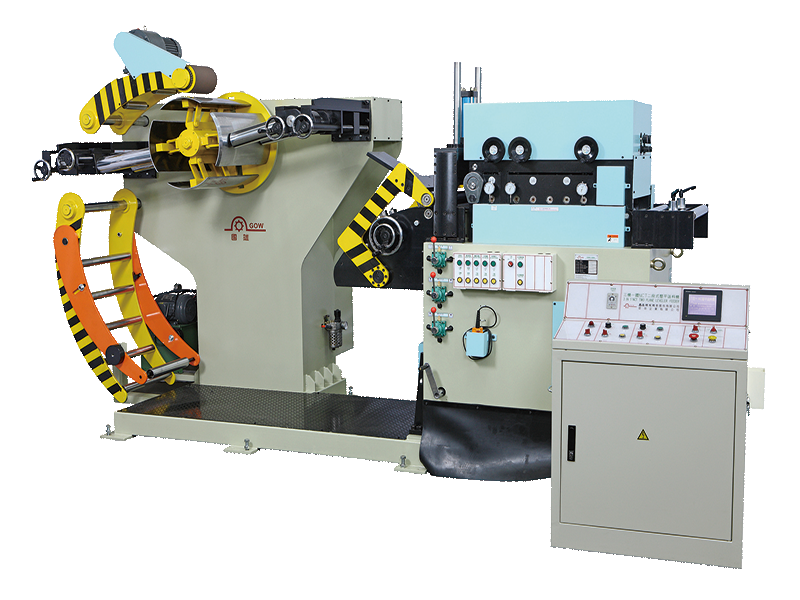

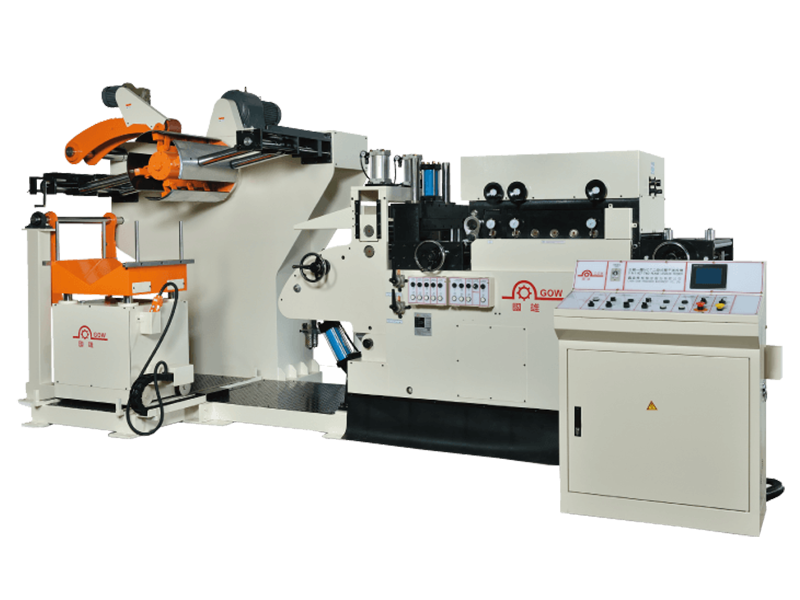

3 IN 1 NCT Two Sections Uncoiler / Leveler / Feeder Series
Solutions
AI IndustryDisplay Panel IndustryElectronics IndustryMedical IndustryHome Appliance IndustryHardware Industry
The 3 IN 1 NCT machine is a high-efficiency integrated system that combines feeding, leveling, and cutting functions into a single unit, specifically designed for metal processing production lines. It automates material handling and is suitable for various metals such as steel, aluminum, and stainless steel.
Features
- New concept and design reduces space requirements.
- The unique 2 sections leveling design for solving the high flatness and leveling stability of material requirement.
- Flip - Top leveler head device for easy maintenance operation.
- High rigidity mechanical structure design and work with Mitsubishi servo control system to ensure the feeding accuracy.
- Friendly operation by adopting Human Machine Interface control system.
- Auto feed monitoring function which can be a safety operation when the unit interlock with press stamping operation.
- Feeder rolls and straightener rolls have undergone special heat treatment of HRC 600 for high precision leveling, rolls surface chromium-plating and then ground, high hardness, high wear-resistant characteristic and long service life cycle.
- Uncoiler hydraulic expansion design makes the job more efficiently.

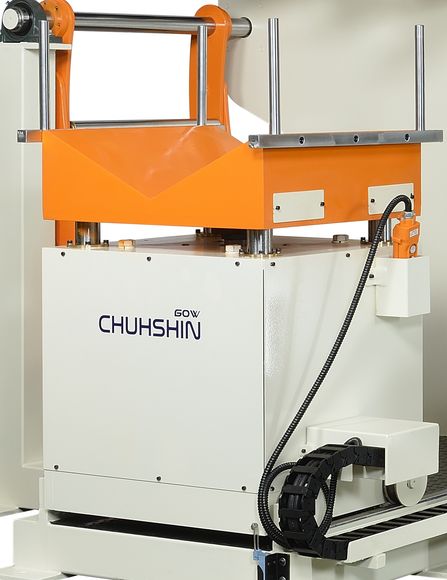

- Collocation twin type uncoiler and coil car, save loading coil time increase efficiency.
Specifications
NCT5 Series for 1.0 ~ 5.0 mm
| Model | NCT5-300 | NCT5-400 | NCT5-500 | NCT5-600 | NCT5-700 | NCT5-800 | NCT5-900 | NCT5-1000 | |
|---|---|---|---|---|---|---|---|---|---|
| Width of Material | mm | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Thickness of Material | mm | 1.0 ~ 5.0 | 1.0 ~ 5.0 | 1.0 ~ 5.0 | 1.0 ~ 5.0 | 1.0 ~ 5.0 | 1.0 ~ 5.0 | 1.0 ~ 5.0 | 1.0 ~ 5.0 |
| Feed Roll | mm | 114 x 2 pcs | 114 x 2 pcs | 114 x 2 pcs | 132 x 2 pcs | 132 x 2 pcs | 132 x 2 pcs | 132 x 2 pcs | 132 x 2 pcs |
| Work Roll | mm | 84 x 12 pcs | 84 x 12 pcs | 84 x 12 pcs | 96 x 12 pcs | 96 x 12 pcs | 96 x 12 pcs | 114 x 12 pcs | 114 x 12 pcs |

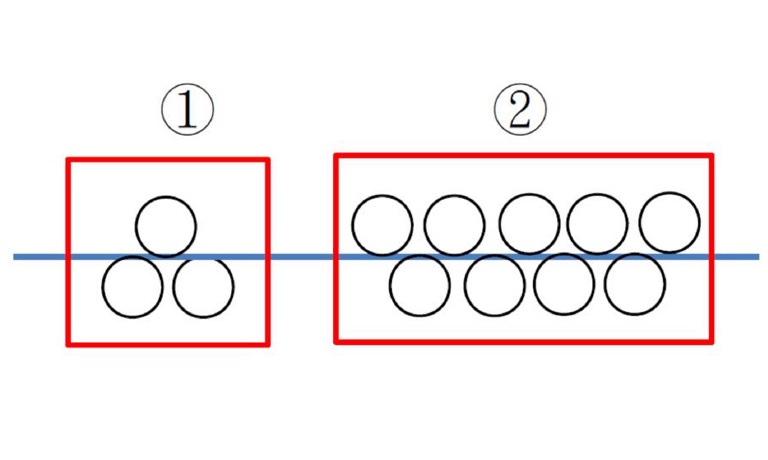

| Work Roll Arrangement | 1ˢᵗ Section:Upper 1 / Lower 2, 2ⁿᵈ Section: Upeer 5 / Lower 4 | 1ˢᵗ Section:Upper 1 / Lower 2, 2ⁿᵈ Section: Upeer 5 / Lower 4 | 1ˢᵗ Section:Upper 1 / Lower 2, 2ⁿᵈ Section: Upeer 5 / Lower 4 | 1ˢᵗ Section:Upper 1 / Lower 2, 2ⁿᵈ Section: Upeer 5 / Lower 4 | 1ˢᵗ Section:Upper 1 / Lower 2, 2ⁿᵈ Section: Upeer 5 / Lower 4 | 1ˢᵗ Section:Upper 1 / Lower 2, 2ⁿᵈ Section: Upeer 5 / Lower 4 | 1ˢᵗ Section:Upper 1 / Lower 2, 2ⁿᵈ Section: Upeer 5 / Lower 4 | 1ˢᵗ Section:Upper 1 / Lower 2, 2ⁿᵈ Section: Upeer 5 / Lower 4 | |
| Main Servo Motor | kW | 5.0 | 5.0 | 5.0 | 7.0 | 7.0 | 7.0 | 11.0 | 11.0 |
| Air Supply | kg/cm² | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |

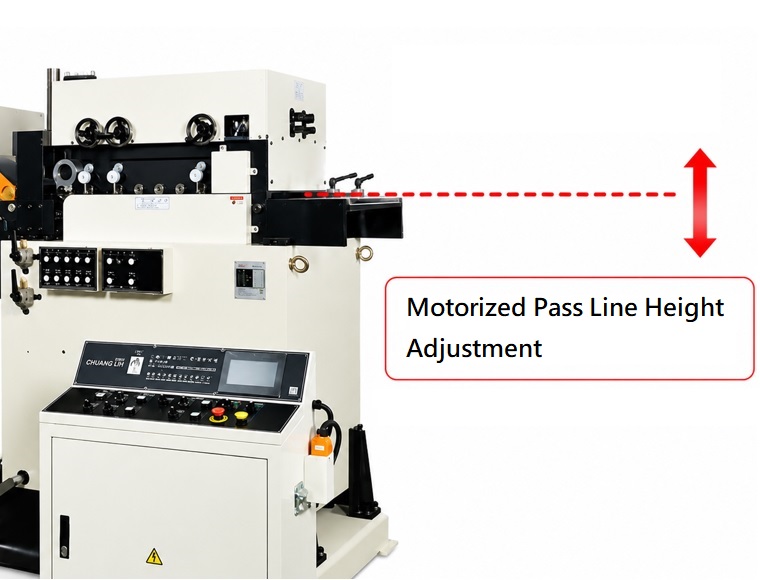

| P. L. H Adjustment | mm | Cust. Demand High ±100 | Cust. Demand High ±100 | Cust. Demand High ±100 | Cust. Demand High ±100 | Cust. Demand High ±100 | Cust. Demand High ±100 | Cust. Demand High ±100 | Cust. Demand High ±100 |
Uncoiler Specifications
| Width of Material | mm | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
|---|---|---|---|---|---|---|---|---|---|
| Max. Coil Weight | kg | 1500 | 2000 | 2000 | 3000 | 3000 | 5000 | 5000 | 5000 |
| Coil I. D. | mm | Ø450 ~ 520 | Ø450 ~ 520 | Ø450 ~ 520 | Ø450 ~ 520 | Ø480 ~ 520 | Ø480 ~ 520 | Ø480 ~ 520 | Ø480 ~ 520 |
| Max. Coil O. D. | mm | Ø1200 or Ø1500 | Ø1200 or Ø1500 | Ø1200 or Ø1500 | Ø1200 or Ø1500 | Ø1200 or Ø1500 | Ø1200 or Ø1500 | Ø1200 or Ø1500 | Ø1200 or Ø1500 |
| Uncoiler Expansion | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |
| NCT1~NCT3 Uncoiler Motor & Inverter | HP | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 5 |
| kW | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 3.7 | 3.7 | 3.7 | |
| NCT4~NCT6 Uncoiler Motor & Inverter | HP | 1 | 2 | 2 | 3 | 3 | 5 | 5 | 5 |
| kW | 1.5 | 2.2 | 2.2 | 3.7 | 3.7 | 3.7 | 5.5 | 5.5 |
Specialty
- • Saving space over 60%
- • Height stability
- • Height efficiency
- • Height precision
- • Feeding accuracy
-

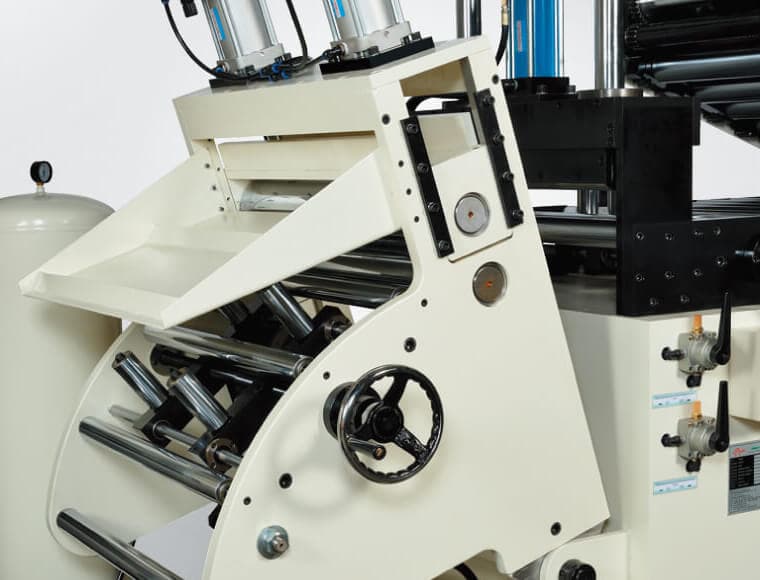

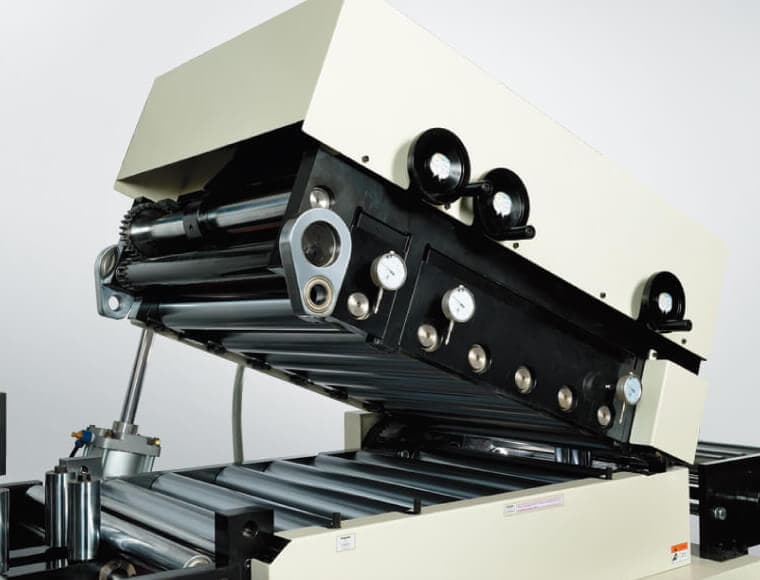

Flip – Top leveler head device.
-

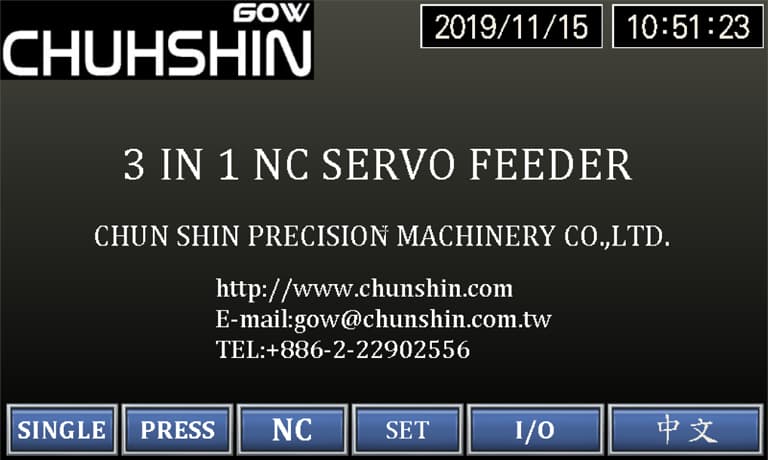

Main menu : Can choose Chinese and English language menu -

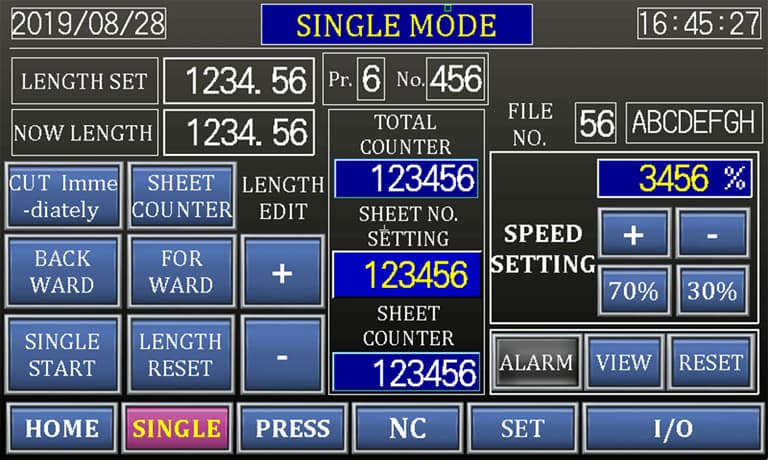

Single Mode : For stamting testing run purpose and Single safe mode operation -

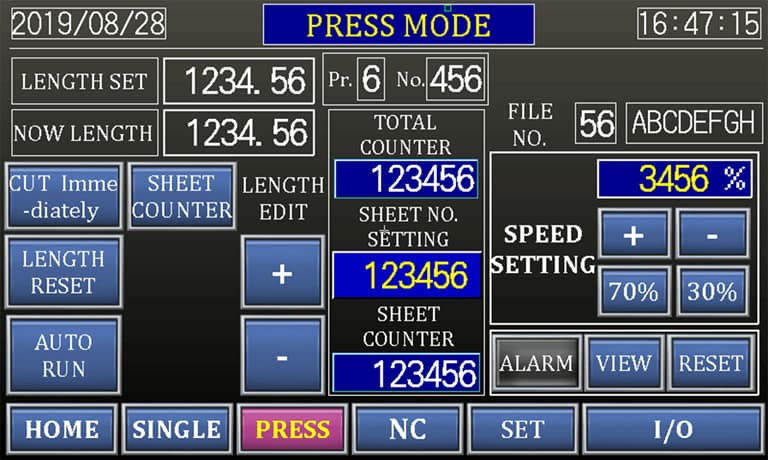

Press Mode : Continual operation mode under press control -

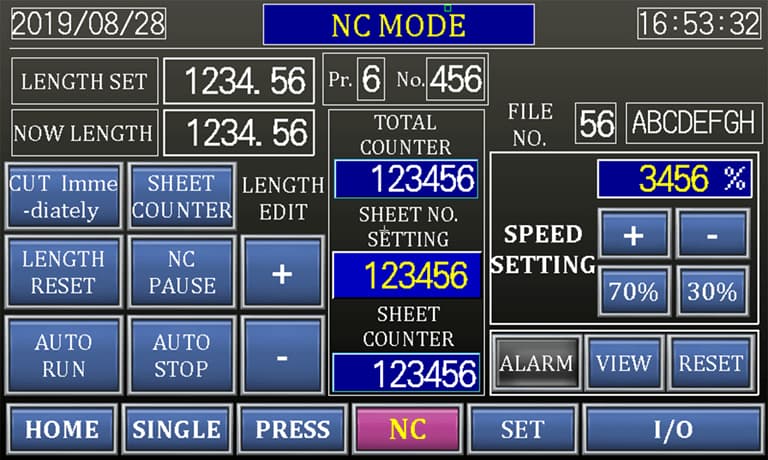

NC Mode : Continual operation mode under feeder control -

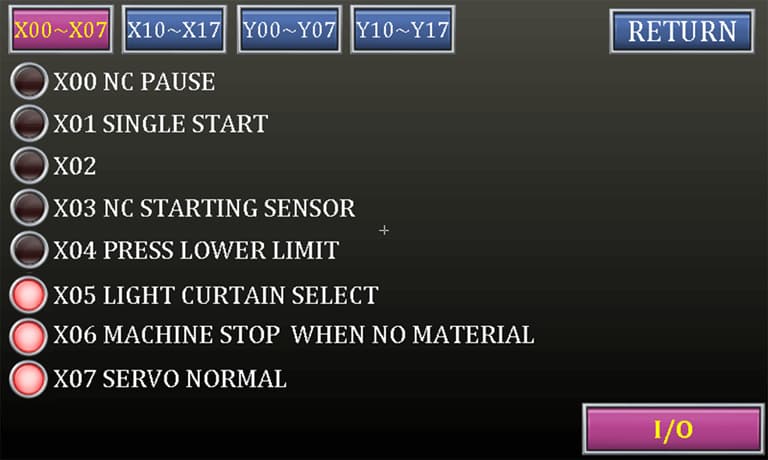

I/0 MONITORING SCREEN -

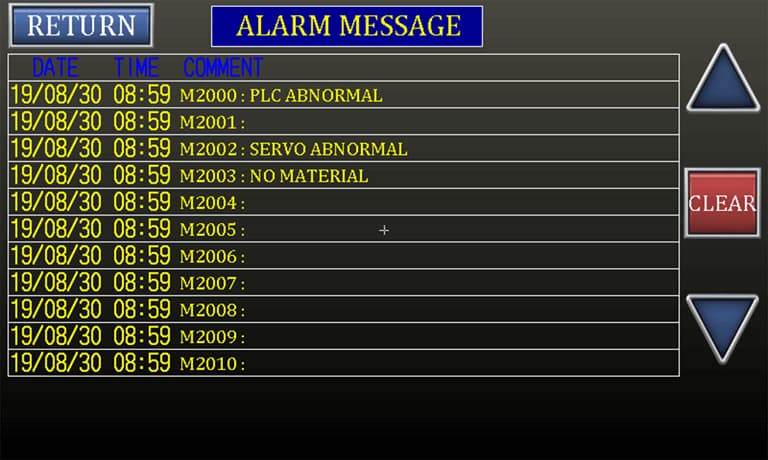

ALARM MESSAGE SCREEN
-

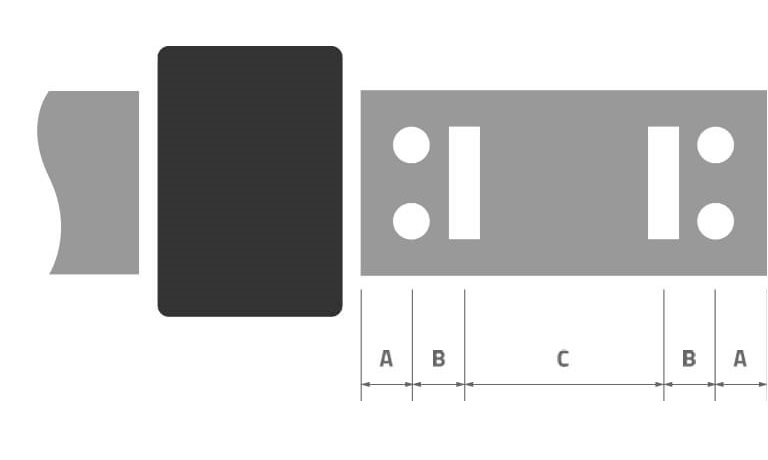

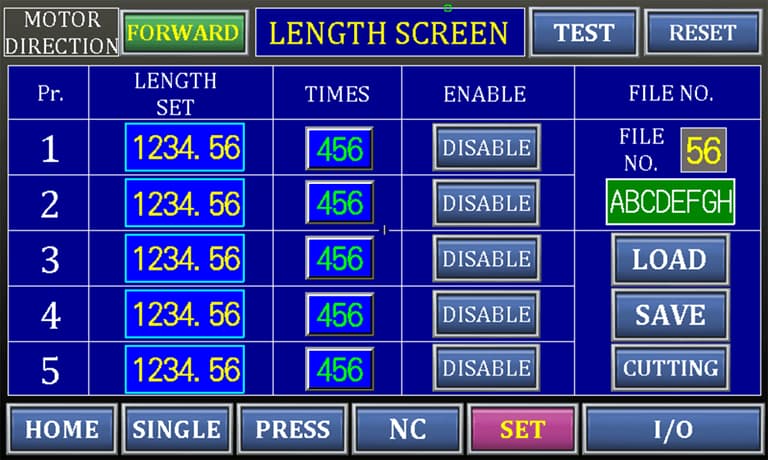

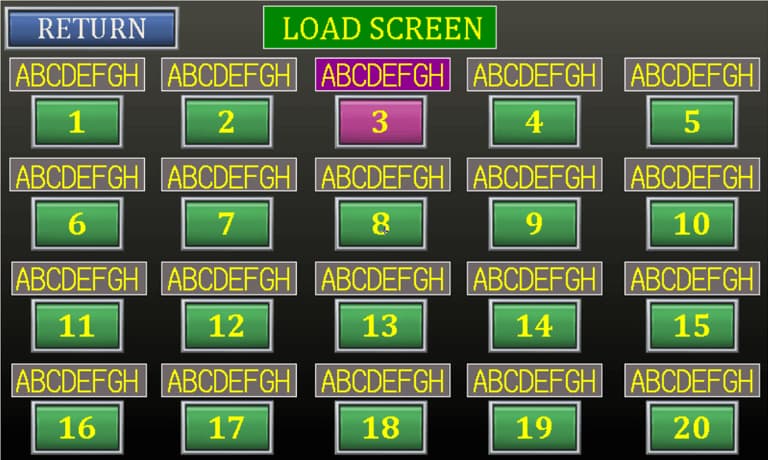

Material length setting: Applicable for multi-feeding length setting requirment. -
-

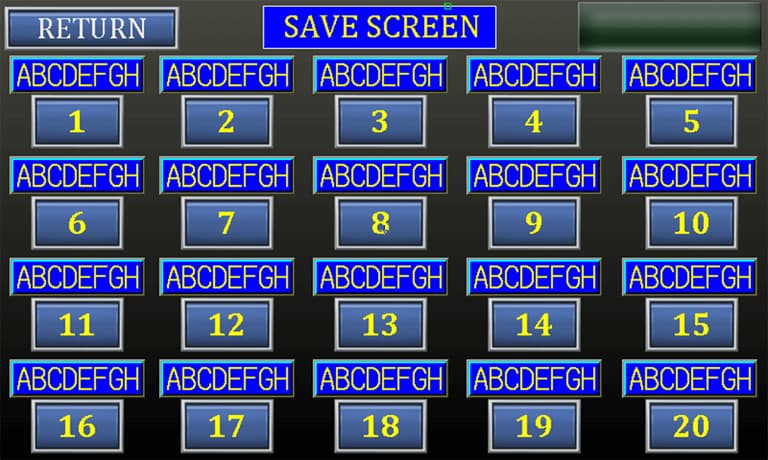

This function can record feeding length value to save or recall, and it is cooperation with dies number to record memory. -
Accessories
- • Programmable multi – pitch setting with cutting signal output function.(Cutting signal output function is able to control the cutting device)
- • HMI touch screen control panel.
- • 2 points micro adjustment(Attached with dial gauge)
- • Straightener work rolls air release.
- • Motor drive uncoiler with inverter control.
- • Uncoiler photoelectric sensor control unit.
- • Uncoiler hydraulic mandrel expansion device.
- • Manual coil guide.
- • Snubber arm.
- • Carry over guide.
- • Carry over clamp. (Applicable to NCT above) Peeler.
- • Pre – bender. (Applicable to NCT4 above)
