MLAT4 系列
2 IN 1 Two Plane Surface Heavy Duty Uncoiler & Leveler
Solutions
Display Panel Industry
The unique two section leveling designed for solving the high flatness and leveling stability of material requirement, save the spot space and reduce the cratching problem, save the in feeding expend time, improve the working efficiency and safety.
Features
- 2 in 1 uncoiler & straightener is designed for save the space.
- The unique 2 section leveling designed for solving the high flatness and leveling stability of material requirement.
- Flip - Top leveler head device designed for easy maintenance operation.
- Manual type in feed coil guiding device to simplify the coil loading operation.
- Custom-made accessories: It is welcome for any your special demand to create your own suitable machine.
Specifications
MLAT4 Series
| Modle | MLAT4-300 | MLAT4-400 | MLAT4-500 | MLAT4-600 | MLAT4-700 | MLAT4-800 | |
|---|---|---|---|---|---|---|---|
| Width of Material | mm | 300 | 400 | 500 | 600 | 700 | 800 |
| Thickness of Material | mm | 0.8 ~ 4.0 | 0.8 ~ 4.0 | 0.8 ~ 4.0 | 0.8 ~ 4.0 | 0.8 ~ 4.0 | 0.8 ~ 4.0 |
| Feeding Upper Rolls | mm | 84 x 1 pcs | 84 x 1 pcs | 84 x 1 pcs | 96 x 1 pcs | 96 x 1 pcs | 96 x 1 pcs |
| Feeding Lower Rolls | mm | 114 x 1 pcs | 114 x 1 pcs | 114 x 1 pcs | 114 x 1 pcs | 114 x 1 pcs | 114 x 1 pcs |
| Leveler Rolls | mm | 84 x 14 pcs | 84 x 14 pcs | 84 x 14 pcs | 96 x 14 pcs | 96 x 14 pcs | 96 x 14 pcs |
| Leveler Motor | HP | 3 | 5 | 5 | 5 | 7.5 | 7.5 |
| Leveler Inverter | kW | 3.7 | 3.7 | 3.7 | 5.5 | 5.5 | 7.5 |
Uncoiler
| Width of Material | mm | 300 | 400 | 500 | 600 | 700 | 800 |
|---|---|---|---|---|---|---|---|
| Max. Coil Weight | kg | 3000 | 3000 | 5000 | 5000 | 5000 | 8000 |
| Coil I.D. | mm | Ø450 ~ 520 | Ø450 ~ 520 | Ø450 ~ 520 | Ø450 ~ 520 | Ø450 ~ 520 | Ø450 ~ 520 |
| Max. Coil O.D. | mm | 1200 or 1500 | 1200 or 1500 | 1200 or 1500 | 1200 or 1500 | 1200 or 1500 | 1200 or 1500 |
| Uncoiler Expansion | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |
| Uncoiler Motor (Manual Forward and Reverse) | HP | 2 | 3 | 3 | 5 | 5 | 5 |
Specialty
- ● Height leveling
- ● Height efficiency
- ● Height stability
- ● Saving space over 30%
- ● Flip-top leveler head device
Accessories
- ● Hydraulic expansion device.
- ● Uncoiler forward rotation and reverse rotation device.
- ● Manual coil guide.
- ● Snubber arm.
- ● Carry over guide.
- ● Pre - bender.
- ● 2 points micro adjustment with 3 sets. (Attached with dial gauge)
- ● Touch loop control sensor.
- ● A frame type coil guide.
- Flip – Top leveler head device
- Ultrasonic speed loop control device.
- Quick fixed coil guide.
- Photoelectric sensor

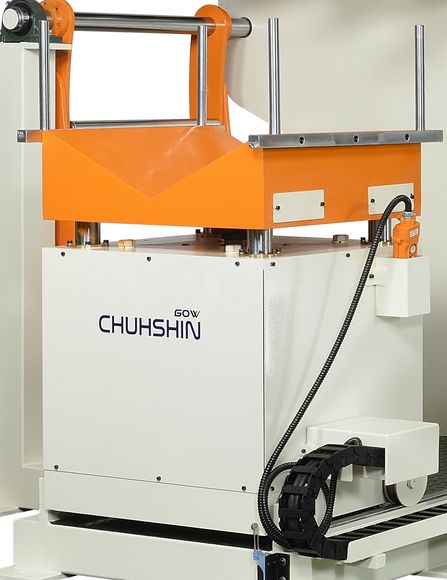

- Coil car (Coil loading assisting device)
- Manual coil guide device
