MLAT 系列

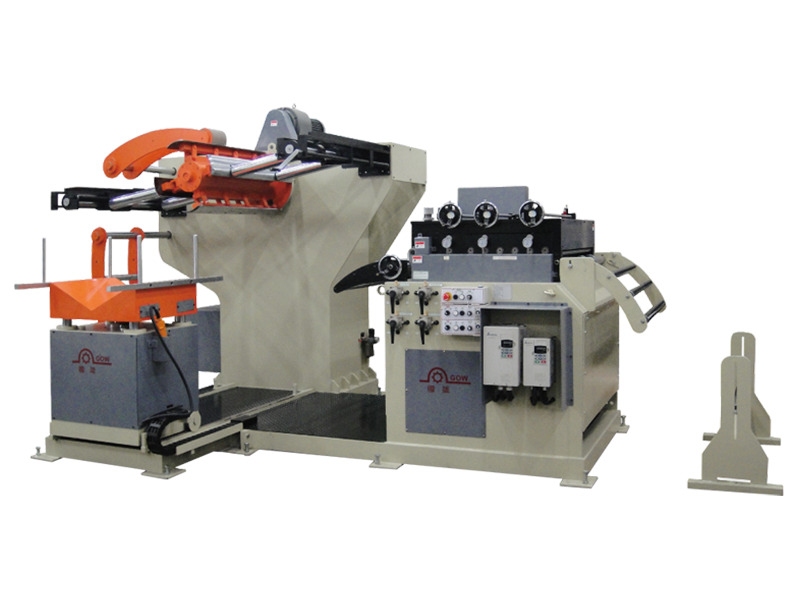

2 IN 1 Two Plane Surface Uncoiler & Leveler
Solutions
Display Panel Industry
The unique two section leveling designed for solving the high flatness and leveling stability of material requirement, save the spot space and reduce the cratching problem, save the in feeding expend time, improve the working efficiency and safety.
Features
- 2 in 1 uncoiler & straightener is designed for save the space.

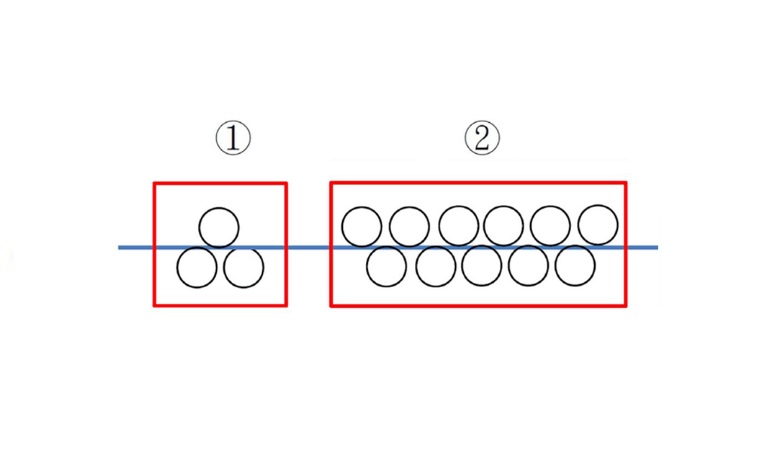

- The unique 2 section leveling designed for solving the high flatness and leveling stability of material requirement.
- Flip - Top leveler head device designed for easy maintenance operation.
- Adopting the dual inverter driving motors to reduce the scratching problem of the material surface.
- Manual type in feed coil guiding device to simplify the coil loading operation.
- Custom-made accessories: It is welcome for any your special demand to create your own suitable machine.
Specifications
MLAT 系列
| Modle | MLAT-500 | MLAT-600 | MLAT-700 | MLAT-800 | MLAT-900 | MLAT-1000 | |
|---|---|---|---|---|---|---|---|
| Width of Material | mm | 500 | 600 | 700 | 800 | 900 | 1000 |
| Thickness of Material | mm | 0.5 ~ 3.0 | 0.5 ~ 3.0 | 0.5 ~ 3.0 | 0.5 ~ 3.0 | 0.5 ~ 3.0 | 0.5 ~ 3.0 |
| Feeding Upper Rolls | mm | 60 x 1 pcs | 60 x 1 pcs | 66 x 1 pcs | 66 x 1 pcs | 72 x 1 pcs | 72 x 1 pcs |
| Feeding Lower Rolls | mm | 78 x 1 pcs | 78 x 1 pcs | 78 x 1 pcs | 78 x 1 pcs | 78 x 1 pcs | 78 x 1 pcs |
| Leveler Rolls | mm | 60 x 14 pcs | 60 x 14 pcs | 66 x 14 pcs | 66 x 14 pcs | 72 x 14 pcs | 72 x 14 pcs |
| Leveler Motor | HP | 2 | 3 | 3 | 5 | 5 | 7.5 |
| Leveler Inverter | kW | 1.5 | 2.2 | 2.2 | 3.7 | 3.7 | 5.5 |
Uncoiler
| Width of Material | mm | 500 | 600 | 700 | 800 | 900 | 1000 |
|---|---|---|---|---|---|---|---|
| Max. Coil Weight | kg | 2000 | 2000 | 3000 | 3000 | 5000 | 5000 |
| Coil I.D. | mm | Ø450 ~ 520 | Ø450 ~ 520 | Ø480 ~ 520 | Ø480 ~ 520 | Ø480 ~ 520 | Ø480 ~ 520 |
| Max. Coil O.D. | mm | 1200 (Option : 1500) | 1200 (Option : 1500) | 1200 (Option : 1500) | 1200 (Option : 1500) | 1200 (Option : 1500) | 1200 (Option : 1500) |
| Uncoiler Expansion | Manual or Hydraulic | Manual or Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |
| Uncoiler Motor | HP | 1 | 1 | 2 | 2 | 3 | 3 |
| Uncoiler Inverter | kW | 0.75 | 1.5 | 1.5 | 2.2 | 2.2 | 3.7 |
Specialty
- ● Height leveling
- ● Height efficiency
- ● Height stability
- ● Saving space over 50%
- ● Flip-top leveler head device
-
Flip – Top leveler head device
Accessories
- ● Flip - Top leveler head device.
- ● Manual in feed coil guide device.
- ● Motor driven Uncoiler & Leveler with inverter control.
- ● 2 points micro adjustment with 3 sets. (Attached with dial gauge)
- ● Snubber arm.
- ● Manual coil guide.
- ● Touch loop control sensor.
- ● A frame type coil guide.
- Hydraulic expansion device.
- Ultrasonic speed loop control device.
- Photoelectric sensor
- Coil car (Coil loading assisting device)
