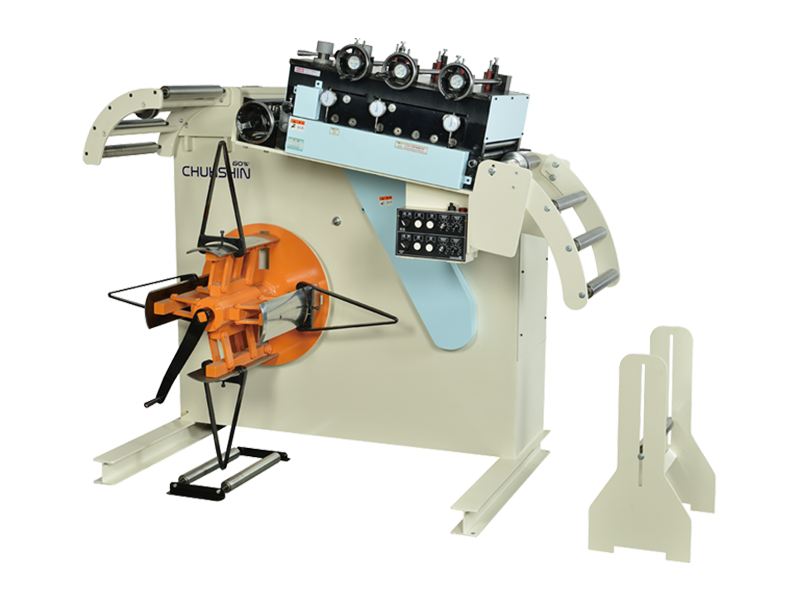

GXT Series
2 IN 1 Two Sections Precision Uncoiler & Leveler
Solutions
AI IndustryDisplay Panel IndustryElectronics IndustryMedical IndustryHome Appliance Industry

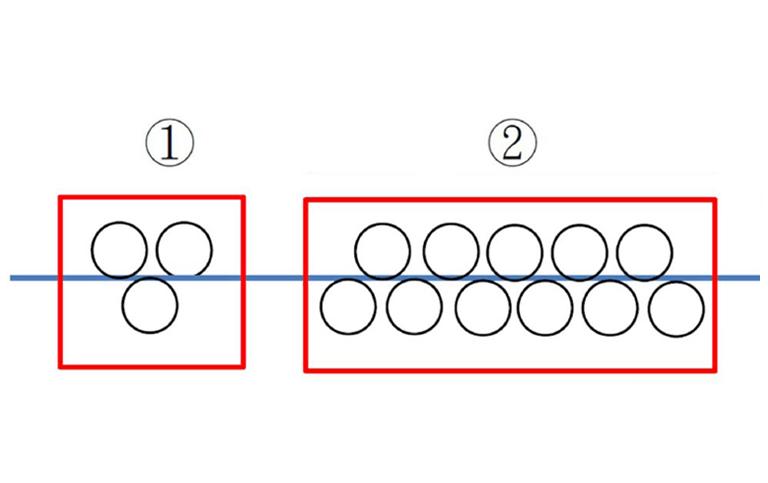

The innovative two-stage precision straightening design, featuring different roller configurations at each stage, effectively addresses straightening issues caused by changes in coil outer diameter. It improves material flatness and straightening stability to meet the requirements of precision stamping applications.
The integrated 2-in-1 decoiler and straightener design, combined with an opening straightener head, facilitates roller cleaning, maintenance, and material threading for greater operating convenience. Various models are available to accommodate different material specifications, effectively saving floor space, reducing defect rates, and improving production efficiency and operational safety.
Features
- 2 in 1 uncoiler & straightener is designed for save the space.
- The unique 2 section leveling designed for solving the high flatness and leveling stability of material requirement.
- Adopting the dual inverter driving motors to reduce thes cratching problem of the material surface.
- Manual type in feed coil guiding device to simplify the coil loading operation.
- Flip – Top leveler head device designed for easy maintenance operation.
- Custom-made accessories for pneumatic snubber arm, hydraulic expansion device…etc. It is welcome for any your special demand to create your own suitable machine.
Specifications
GXT Series for 0.3~1.2 mm
| Modle | GXT-200 | GXT-300 | GXT-400 | GXT-500 | GXT-600 | GXT-700 | GXT-800 | |
|---|---|---|---|---|---|---|---|---|
| Width of Material | mm | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
| Thickness of Material | mm | 0.3 ~ 1.2 | 0.3 ~ 1.2 | 0.3 ~ 1.2 | 0.3 ~ 1.2 | 0.3 ~ 1.2 | 0.3 ~ 1.2 | 0.3 ~ 1.2 |
| Feeding Upper Rolls | mm | 60 x 1 pcs | 60 x 1 pcs | 60 x 1 pcs | 60 x 1 pcs | 60 x 1 pcs | 60 x 1 pcs | 60 x 1 pcs |
| Feeding Lower Rolls | mm | 60 x 1 pcs | 60 x 1 pcs | 60 x 1 pcs | 60 x 1 pcs | 60 x 1 pcs | 78 x 1 pcs | 78 x 1 pcs |
| Leveler Rolls | mm | 40 x 14 pcs | 40 x 14 pcs | 40 x 14 pcs | 40 x 14 pcs | 40 x 14 pcs | 51 x 14 pcs | 51 x 14 pcs |
| Leveler Motor | HP | 1 | 2 | 2 | 2 | 3 | 3 | 5 |
| Leveler Inverter | kW | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 3.7 |
Uncoiler Specifications
| Width of Material | mm | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
|---|---|---|---|---|---|---|---|---|
| Max. Coil Weight | kg | 1000 | 1000 | 1500 | 2000 | 2000 | 3000 | 3000 |
| Coil I.D. | mm | Ø300 ~ 520 | Ø450 ~ 520 (Option : Ø300 ~ 520) | Ø450 ~ 520 | Ø450 ~ 520 | Ø450 ~ 520 | Ø480 ~ 520 | Ø480 ~ 520 |
| Max. Coil O.D. | mm | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 |
| Uncoiler Expansion | Manual | Manual (Option : Hydraulic) | Manual (Option : Hydraulic) | Manual (Option : Hydraulic) | Manual (Option : Hydraulic) | Hydraulic | Hydraulic | |
| Uncoiler Motor | HP | 1/2 | 1/2 | 1 | 1 | 1 | 2 | 2 |
| Uncoiler Inverter | kW | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 | 2.2 |
Specialty
-

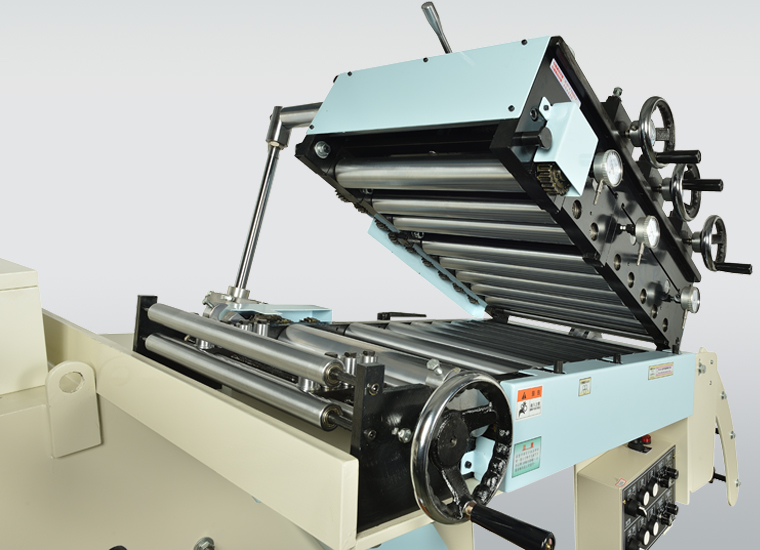

Flip – Top leveler head device - .
- ● Height leveling
- ● Height efficiency
- ● Height stability
- ● Saving space over 40%
Accessories
- Flip – Top leveler head device
- ● 2 points micro adjustment with 3 sets. (Attached withdial gauge)
- ● Manual in feed coil guide device.
- ● Touch loop control sensor.
- ● Motor driven Uncoiler & Leveler with inverter control.
- ● A frame type coil guide.
- Hydraulic expansion device.
- Quick fixed coil guide.
- Ultrasonic speed loop control device.
- Photoelectric sensor

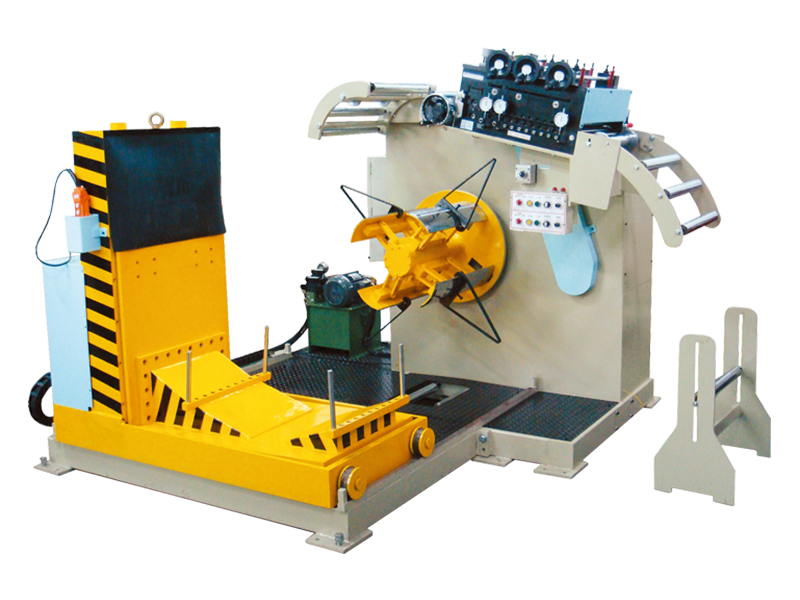

- Coil car (Coil loading assisting device)
