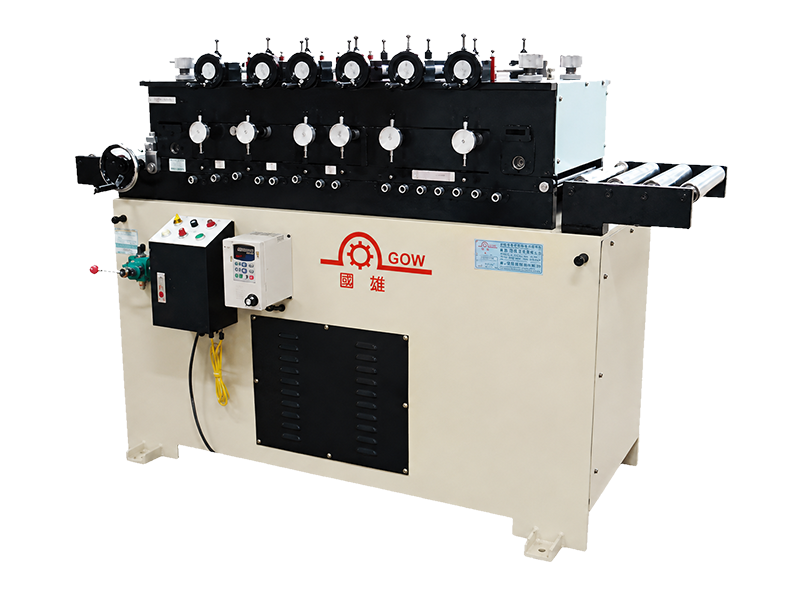

CLT Series
Four Plane Surface Precision Leveler
Solutions
Display Panel Industry
The exclusive Four-Plane Surface High Precision Uncoiler & Leveler Series.
Specially designed for thin materials, it is capable of flattening both transverse and longitudinal bowing perfectly.
Features
- The unique patent design leveler (Taiwan & China)
- For high flatness required production, the unique four plane leveling design can not only make the precise flatness to front-rear side of the material but also left –right side of the material

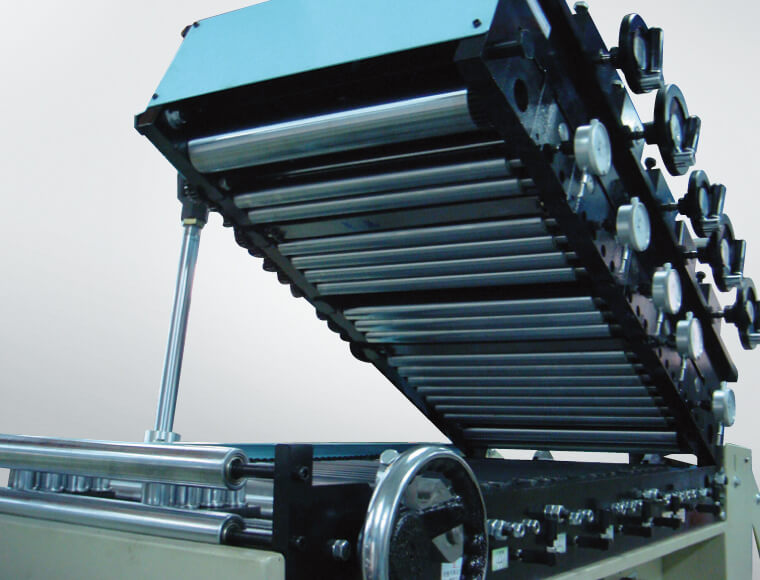

- Flip – Top leveler head device designed for easy maintenance operation.
Specifications
CLT Series
| Modle | CLT-200 | CLT-300 | CLT-400 | CLT-500 | CLT-600 | |
|---|---|---|---|---|---|---|
| Width of Material | mm | 200 | 300 | 400 | 500 | 600 |
| Thickness of Material | mm | 0.5 ~ 3.0 | 0.5 ~ 3.0 | 0.5 ~ 3.0 | 0.5 ~ 3.0 | 0.5 ~ 3.0 |
| Feeding Upper Rolls | mm | 60 x 2 pcs | 60 x 2 pcs | 60 x 2 pcs | 60 x 2 pcs | 60 x 2 pcs |
| Feeding Lower Rolls | mm | 78 x 2 pcs | 78 x 2 pcs | 78 x 2 pcs | 78 x 2 pcs | 78 x 2 pcs |
| Leveler Roll | mm | 60 x 28 pcs | 60 x 28 pcs | 60 x 28 pcs | 60 x 28 pcs | 60 x 28 pcs |
| Leveler Motor | HP | 2 | 3 | 3 | 3 | 5 |
| Leveler Inverter | kW | 2.2 | 2.2 | 3.7 | 3.7 | 3.7 |
Specialty
- ● Height leveling for thin material
- ● Height efficiency
- ● Feeding accuracy
- ● Height precision.
- ● Flip – Top leveler head device.
-
Flip – Top leveler head device
-

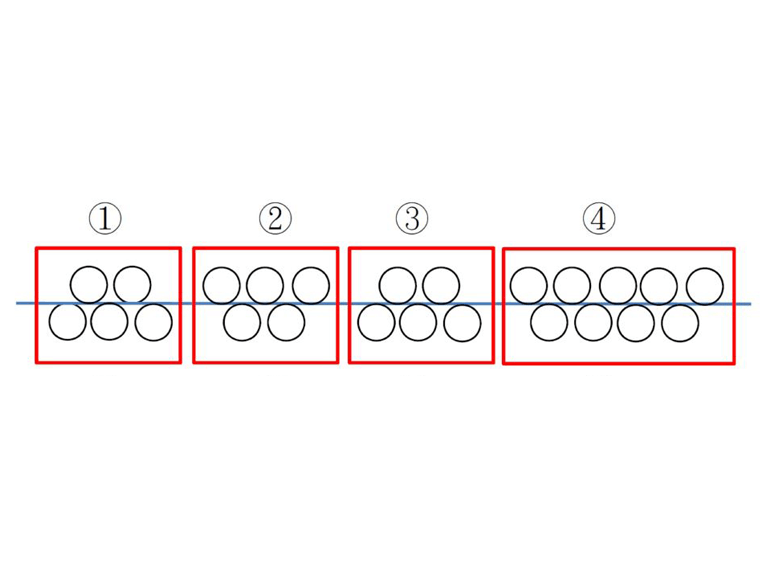

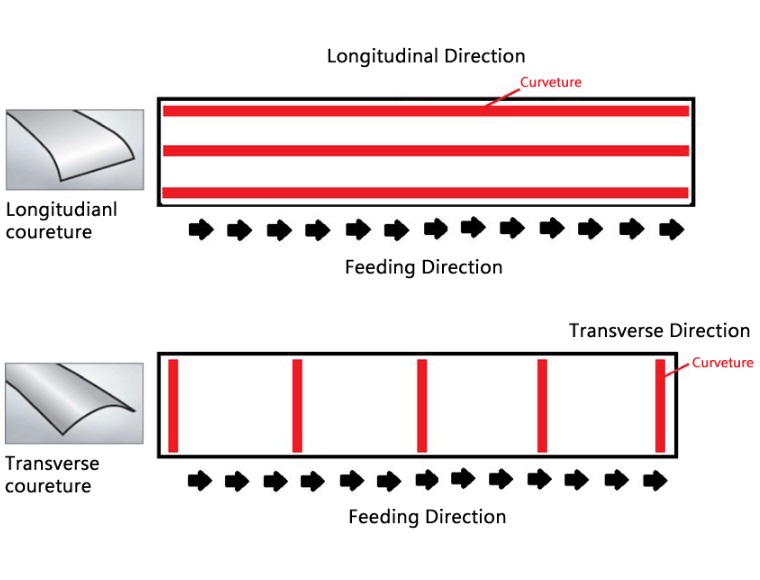

Normal straightener is levelling the longitudinal direction of stress relief but this machine can relief transverse direction, detail information please see as below illustrate : -
Accessories
- ● Flip – Top leveler head device.
- ● 2 points micro adjustment with 6 sets. (attached with dial gauge)
- ● touch loop control sensor.
- Ultrasonic speed loop control device.
- Photoelectric sensor.
