NC–RL Series

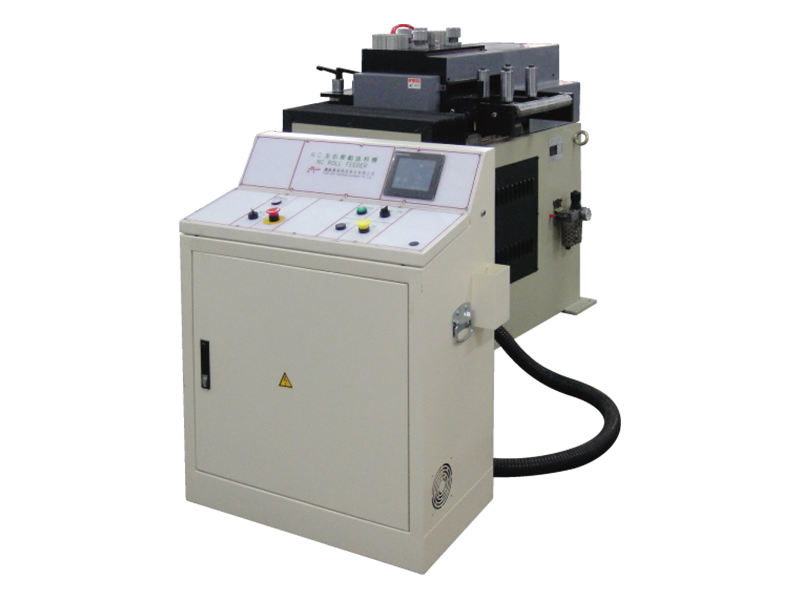

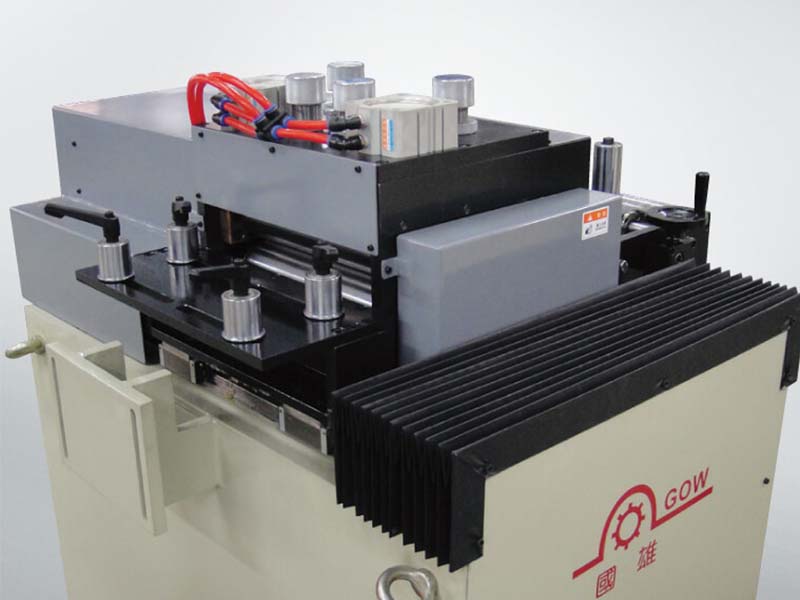

NC–RL Zig–Zag Servo - Feeder Series
NC–RL High Speed Servo Feeder Series is High rigidity mechanical structure design and work with Mitsubishi Server system, friendly operation by adopting Human Machine Interface control, programmable multi-pitch setting function to support the different feeding length and feeding frequency requirement.
Features
- High rigidity mechanical structure design and work with Mitsubishi servo control system to ensure the feeding accuracy.
- Friendly operation by adopting Human Machine Interface control.
- Programmable multi-pitch setting function to support the different feeding length and feeding frequency requirement.
- Auto feed monitoring function which can be a safety operation when the unit interlock with press stamping operation.

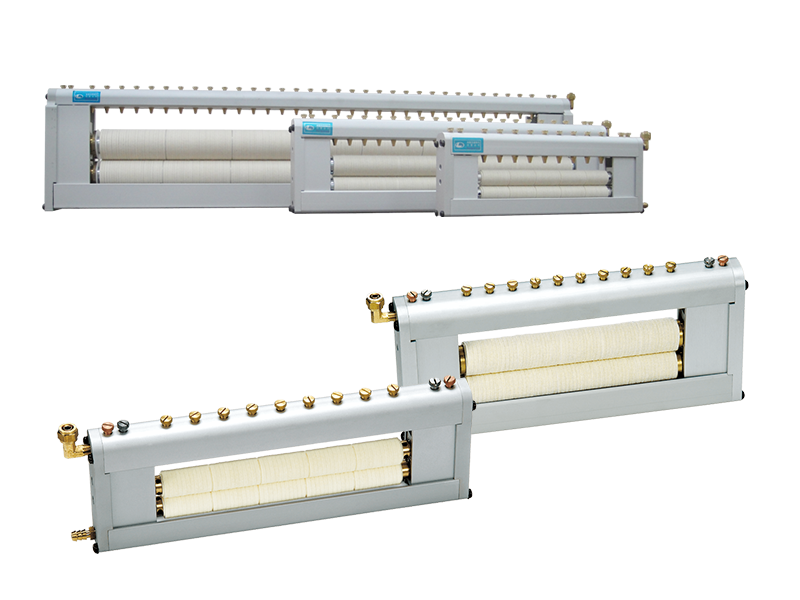

- Applicable for selecting the optional 4 feeding rolls to meet the thicker material request, to ensure the feeding accuracy.

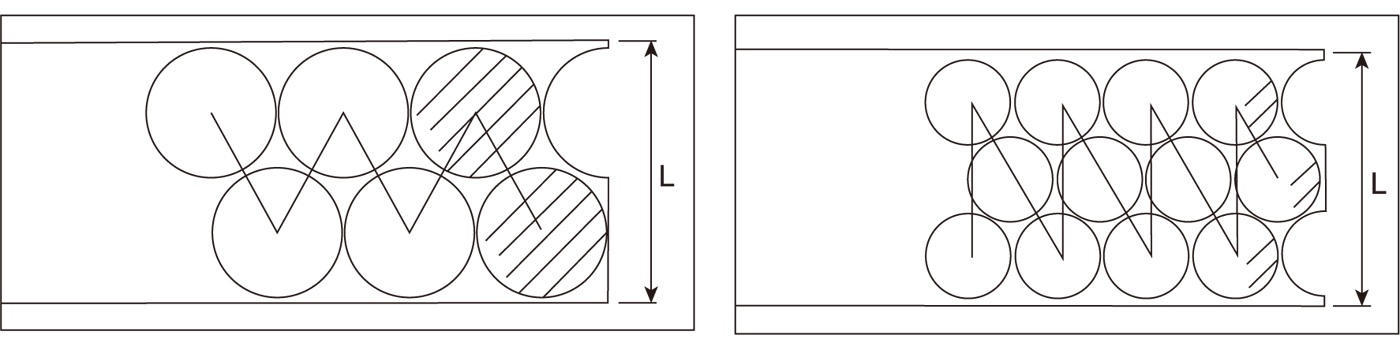

- Zig–Zag motion feeding feature is to achieve the material cost saving and that is performing better than the conventional feeders.

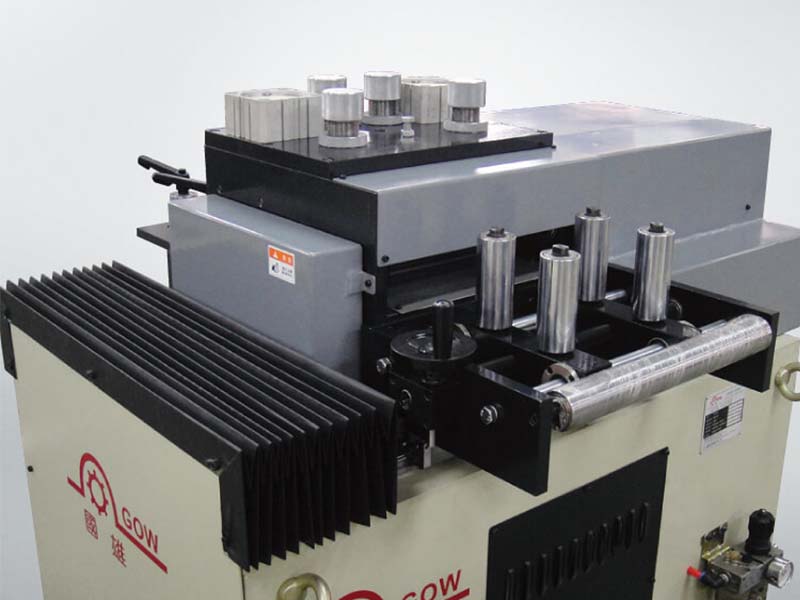

- The unit is made under the one-piece body construction design and adopting the linear slide rails, ball screw driving device to achieve the highest working stability.
Specifications
NC–RL Zig–Zag Series
| Model | NC-200RL | NC-300RL | NC-400RL | NC-500RL | NC-600RL | |
|---|---|---|---|---|---|---|
| Width of Material | mm | 200 | 300 | 400 | 500 | 600 |
| Thickness of Material | mm | 0.1 ~ 3.0 (Option: 4 or 6) | 0.1 ~ 3.0 (Option: 4 or 6) | 0.1 ~ 3.0 (Option: 4 or 6) | 0.1 ~ 3.0 (Option: 4 or 6) | 0.1 ~ 3.0 (Option: 4 or 6) |
| Feed Roll Up | mm | 112 x 1 (Pu Roll) | 112 x 1 (Pu Roll) | 112 x 1 (Pu Roll) | 112 x 1 (Pu Roll) | 112 x 1 (Pu Roll) |
| Work Roll Down | mm | 112 x 1 | 112 x 1 | 112 x 1 | 112 x 1 | 112 x 1 |
| Servo Motor | kW | 2 | 2 | 3.5 | 5.0 | 5.0 |
| Speed | spm | 0 ~ 9999.99 | 0 ~ 9999.99 | 0 ~ 9999.99 | 0 ~ 9999.99 | 0 ~ 9999.99 |
Specialty
- ● Air release
- ● Material cost saving
- ● Height stability
- ● Special software program demand
- ● High efficiency
- ● Feeding accuracy
- ● Customer demand
-

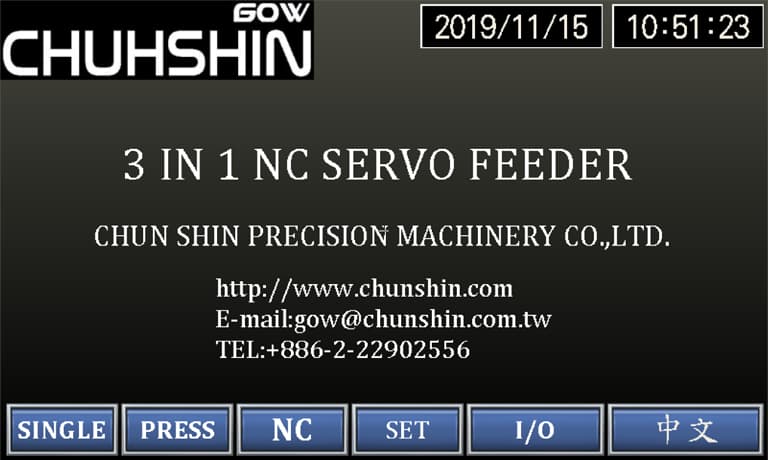

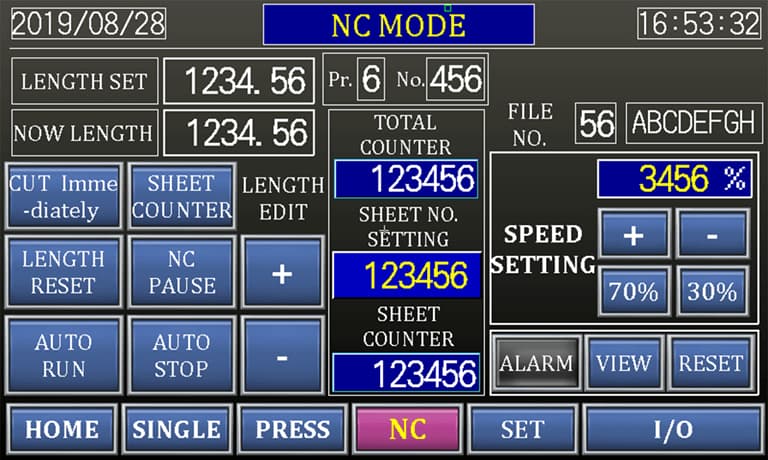

Main menu : Can choose Chinese and English language menu -

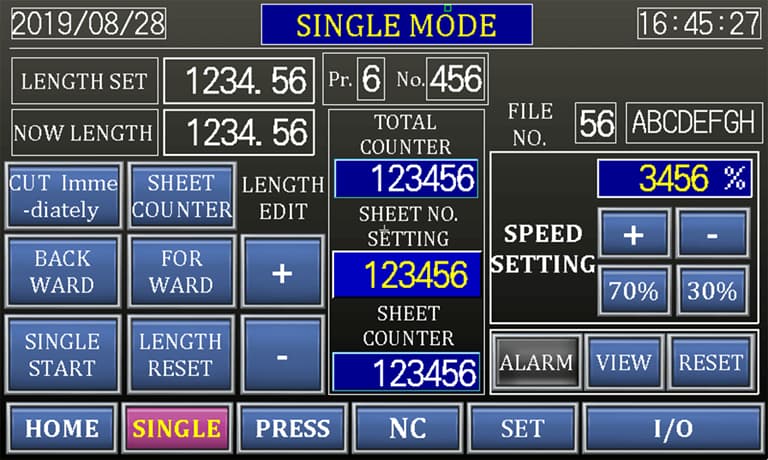

Manual Mode：For stamting testing run purpose -

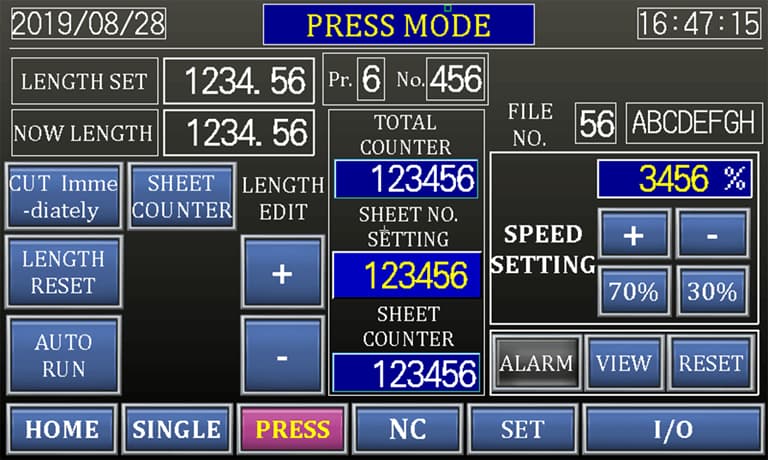

Press Mode：Continual operation mode under press control -
Material length setting
-
Action method
Accessories
- ● 5.7 “Mitsubishi Touch panel
- ● Zig-Zag motion controlled by servo motor system; Linear slide rails/2 pieces; Boll screw/1 piece. Programmable for 5 rows movement control.
- ● PLC controller - Mitsubishi (Made in Japan)
- ● NC servo controller - Mitsubishi (Made in Japan)
- ● Feeding rolls air release
- Micro-Adjusted lubricator
- Gear box driven type device.(Applicable to material thickness above 3 ~ 4 mm)
- Special software demand.
- Four feeding rolls set unit with gear box driving device.(Applicable to material thickness above 5 ~ 6 mm)
