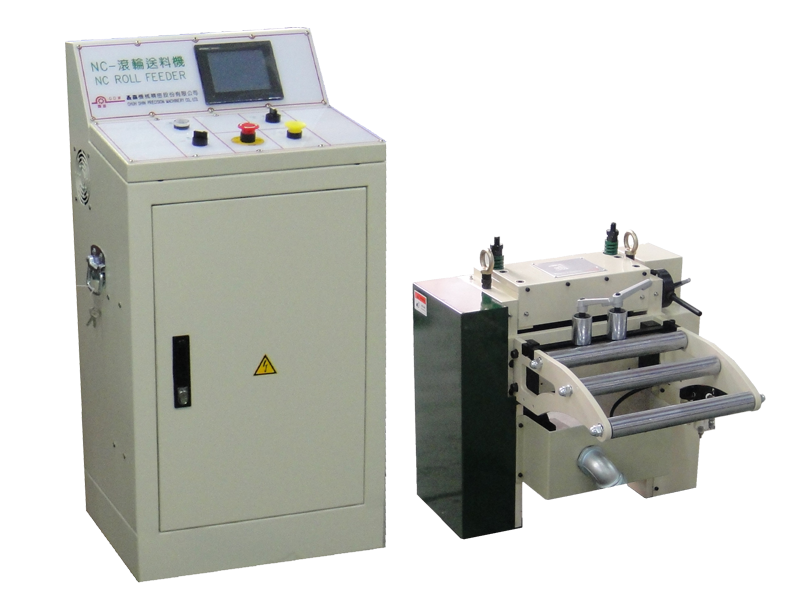

HNC High Speed Servo - Feeder Series

Solutions Display Panel Industry Electronics Industry Home Appliance Industry Hardware Industry

HNC High Speed Servo Feeder Series is High rigidity mechanical structure design and work with Mitsubishi Server system, friendly operation by adopting Human Machine Interface control, programmable multi-pitch setting function to support the different feeding length and feeding frequency requirement.

Features

High rigidity mechanical structure design and work with Mitsubishi servo control system to ensure the feeding accuracy.

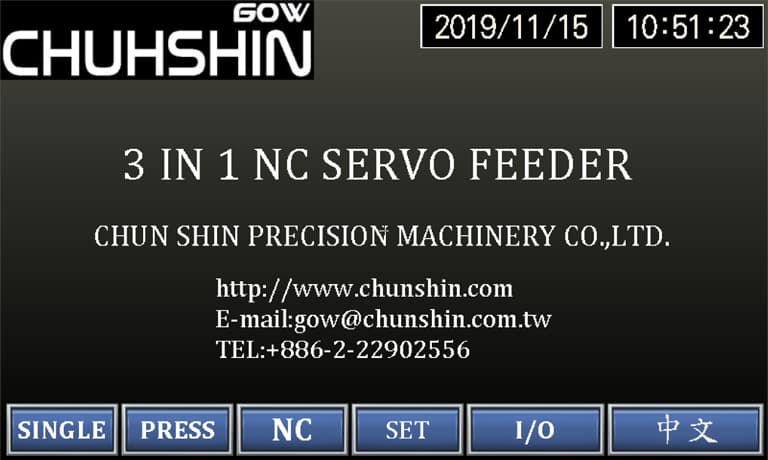

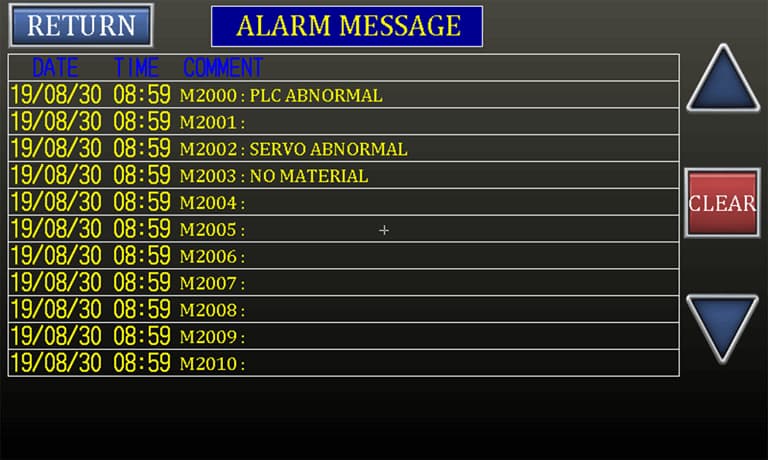

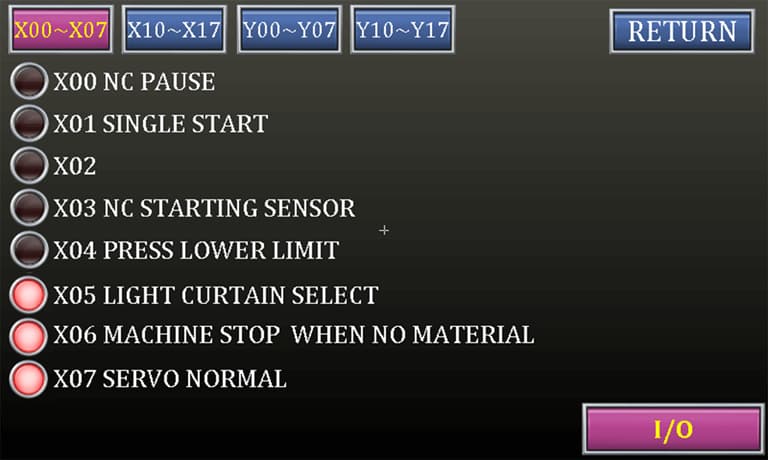

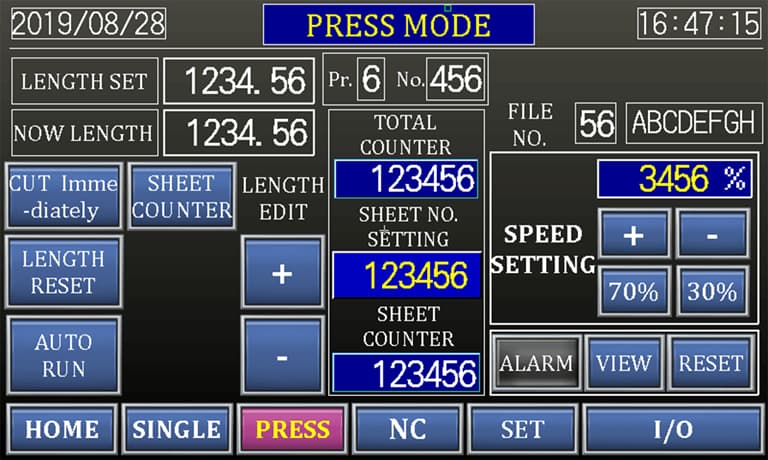

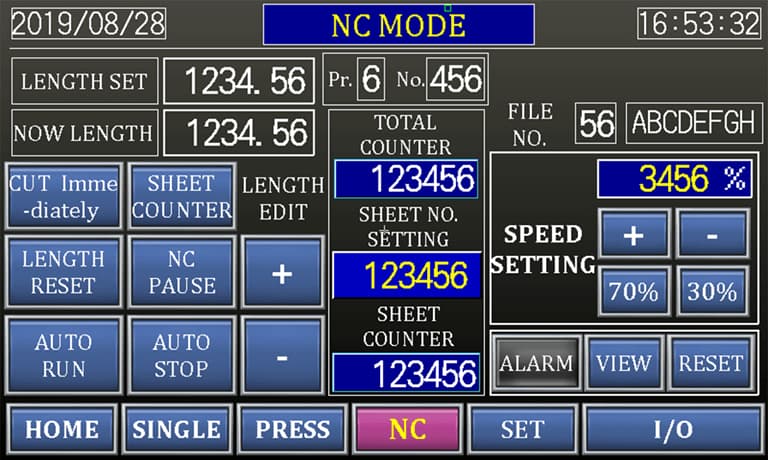

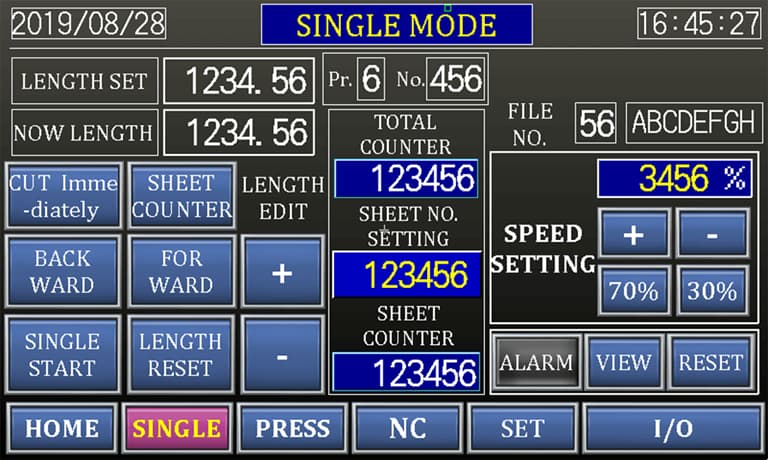

Friendly operation by adopting Human Machine Interface control.
Auto feed monitoring function which can be a safety operation when the unit interlock with press stamping operation

Specifications

HNC High Speed Servo

Model		HNC-150	HNC-200	HNC-300	HNC-400	HNC-500	HNC-600
Width of Material	mm	150	200	300	400	500	600
Thickness of Material	mm	0.1 ~ 2.0	0.1 ~ 2.0	0.1 ~ 2.0	0.1 ~ 2.0	0.1 ~ 2.0	0.1 ~ 2.0
Feed Roll Up	mm	72 x 1 (Pu Roll)	72 x 1 (Pu Roll)	112 x 1 (Pu Roll)	112 x 1 (Pu Roll)	112 x 1 (Pu Roll)	112 x 1 (Pu Roll)
Work Roll Down	mm	72 x 1	72 x 1	112 x 1	112 x 1	112 x 1	112 x 1
Servo Motor	kW	2	3.5	3.5	5.0	5.0	7.0
Speed	spm	400 ~ 600	400 ~ 600	400 ~ 600	400 ~ 600	400 ~ 600	400 ~ 600
