NC-F Series

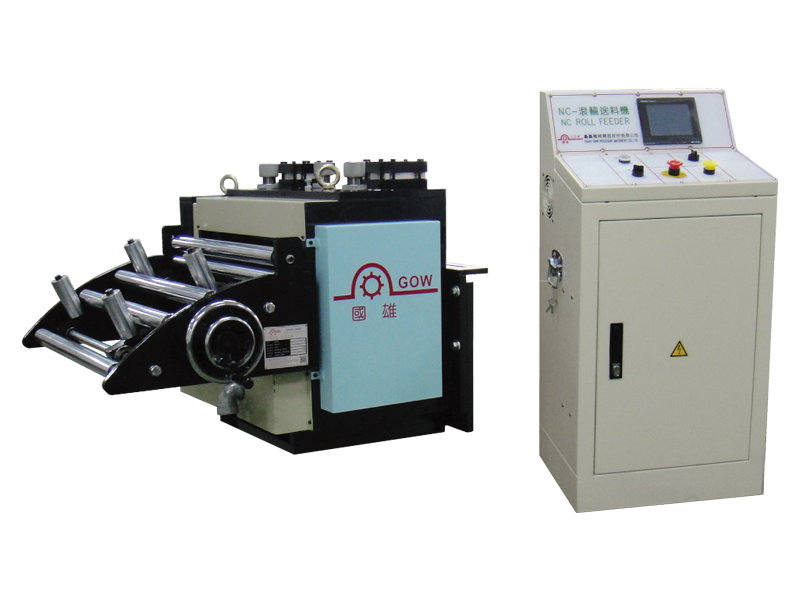

NC–F Servo Feeder Double Feed Rolls Thick Material Type
NC-F Servo Feeder Series is High rigidity mechanical structure design and work with Mitsubishi Server system, friendly operation by adopting Human Machine Interface control, programmable multi-pitch setting function to support the different feeding length and feeding frequency requirement.
Features
- High rigidity mechanical structure design and work with Mitsubishi servo control system to ensure the feeding accuracy.
- Friendly operation by adopting Human Machine Interface control.
- Programmable multi-pitch setting function to support the different feeding length and feeding frequency requirement.
- Auto feed monitoring function which can be a safety operation when the unit interlock with press stamping operation.
- Applicable for selecting the optional 4 feeding rolls to meet the thicker material request, to ensure the feeding accuracy.
Specifications
NC-F Series
| Model | NC-150 | NC-200 | NC-300 | NC-300S | NC-400 | NC-500 | NC-600 | NC-800 | NC-1000 | NC-1250 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Width of Material | mm | 150 | 200 | 300 | 300 | 400 | 500 | 600 | 800 | 1000 | 1250 |
| Thickness of Material | mm | 0.1 ~ 2.0 | 0.1 ~ 2.0 | 0.1 ~ 2.0 | 0.1 ~ 3.0 (Option: 4 or 6) | 0.1 ~ 3.0 (Option: 4 or 6) | 0.1 ~ 3.0 (Option: 4 or 6) | 0.1 ~ 3.0 (Option: 4 or 6) | 0.1 ~ 3.0 (Option: 4 or 6) | 0.1 ~ 3.0 (Option: 4 or 6) | 0.1 ~ 3.0 (Option: 4 or 6) |
| Feed Roll Up | mm | 72 x 1 (Pu Roll) | 72 x 1 (Pu Roll) | 72 x 1 (Pu Roll) | 112 x 1 (Pu Roll) | 112 x 1 (Pu Roll) | 112 x 1 (Pu Roll) | 112 x 1 (Pu Roll) | 112 x 1 (Pu Roll) | 112 x 1 (Pu Roll) | 112 x 1 (Pu Roll) |
| Work Roll Down | mm | 72 x 1 | 72 x 1 | 72 x 1 | 112 x 1 | 112 x 1 | 112 x 1 | 112 x 1 | 112 x 1 | 112 x 1 | 112 x 1 |
| Servo Motor | kW | 1.0 | 1.0 | 1.0 | 2.0 | 2.0 | 3.5 | 3.5 | 5.0 | 5.0 | 7.0 |
| Feed Length | mm | 1 ~ 9999.99 | 1 ~ 9999.99 | 1 ~ 9999.99 | 1 ~ 9999.99 | 1 ~ 9999.99 | 1 ~ 9999.99 | 1 ~ 9999.99 | 1 ~ 9999.99 | 1 ~ 9999.99 | 1 ~ 9999.99 |
| P.L.H Adjustment | mm | 156 ~ 226 | 156 ~ 226 | 156 ~ 226 | 187 ~ 367 | 187 ~ 367 | 187 ~ 367 | 187 ~ 367 | 187 ~ 367 | 187 ~ 367 | 187 ~ 367 |
Specialty
- ● Air release
- ● Feeding accuracy
- ● Height stability
- ● Customer demand
- ● Special software program demand
-

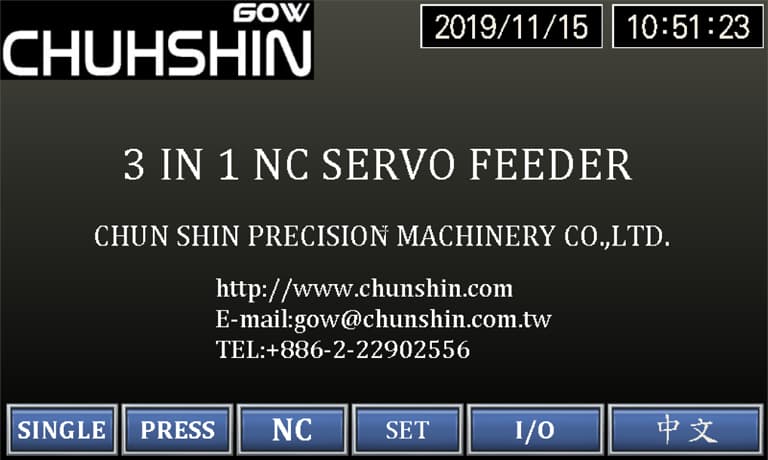

Main menu : Can choose Chinese and English language menu -

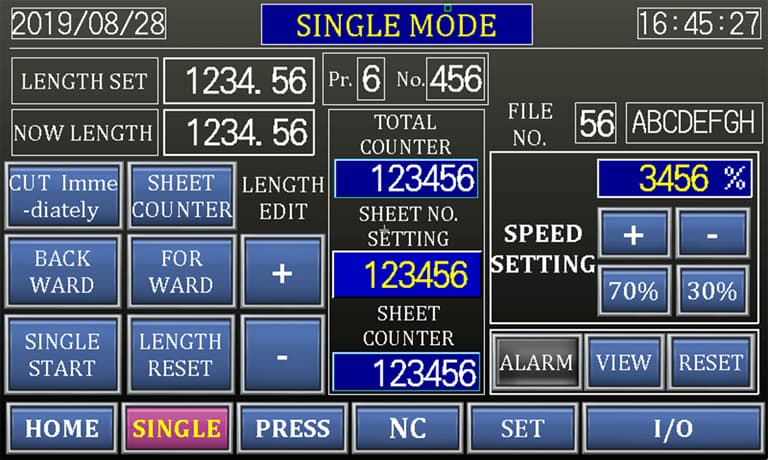

Single Mode : For stamting testing run purpose and Single safe mode operation -

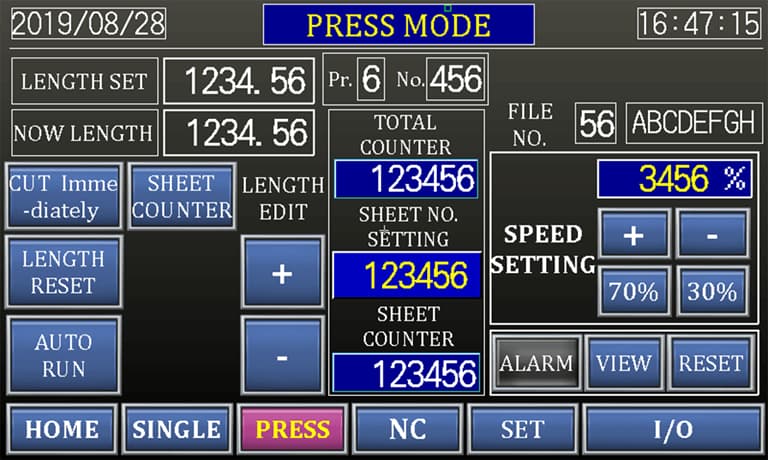

Press Mode：Continual operation mode under press control -

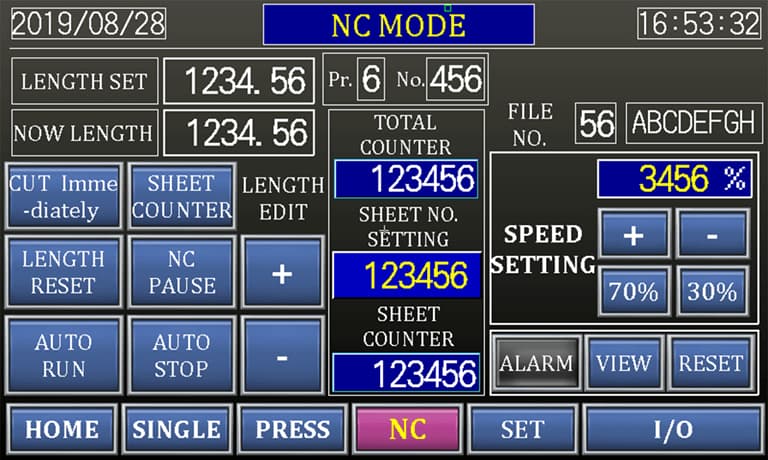

NC Mode：Continual operation mode under feeder control -

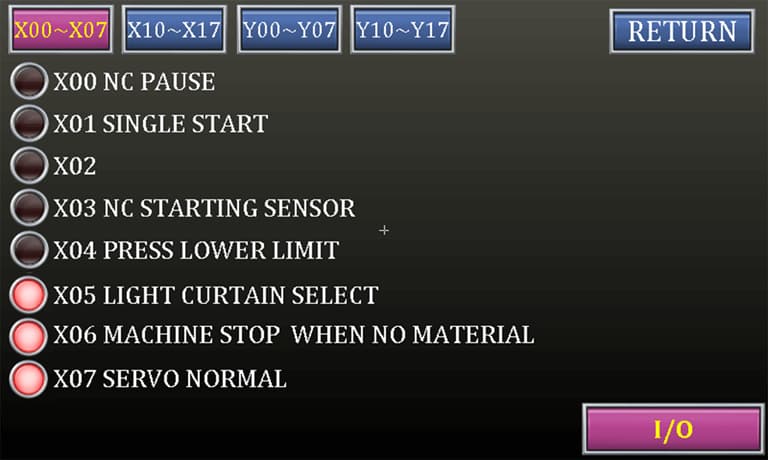

I/0 MONITORING SCREEN -

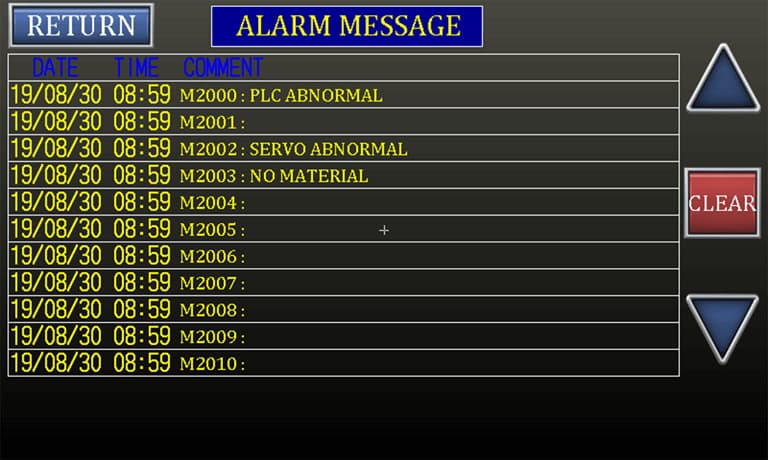

ALARM MESSAGE SCREEN
-

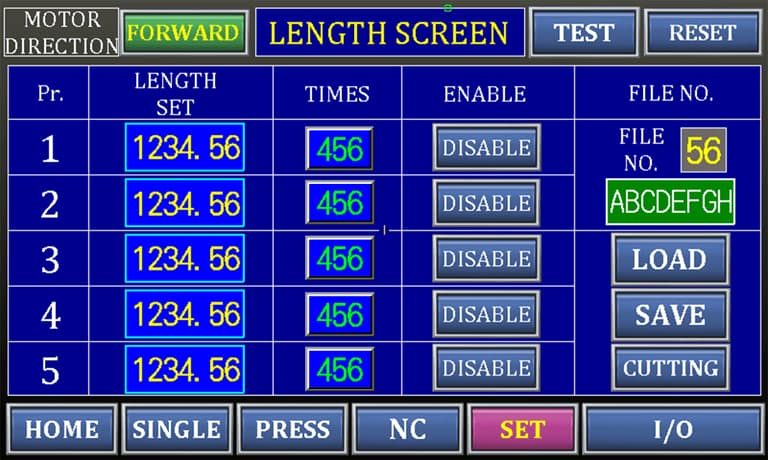

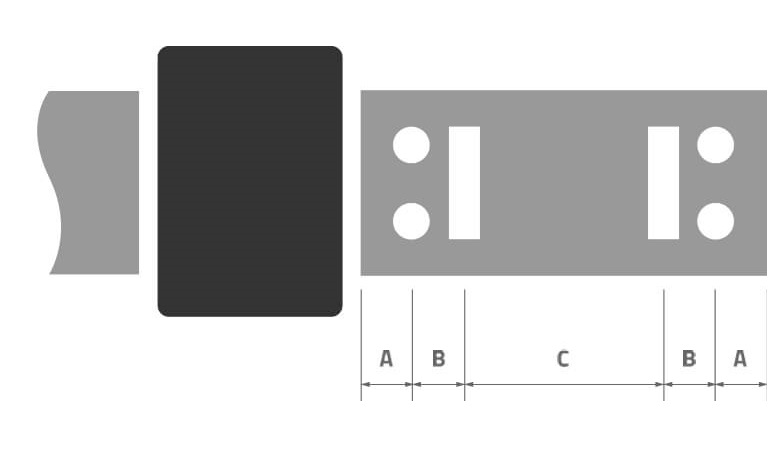

Material length setting: Applicable for multi-feeding length setting requirment. -
-

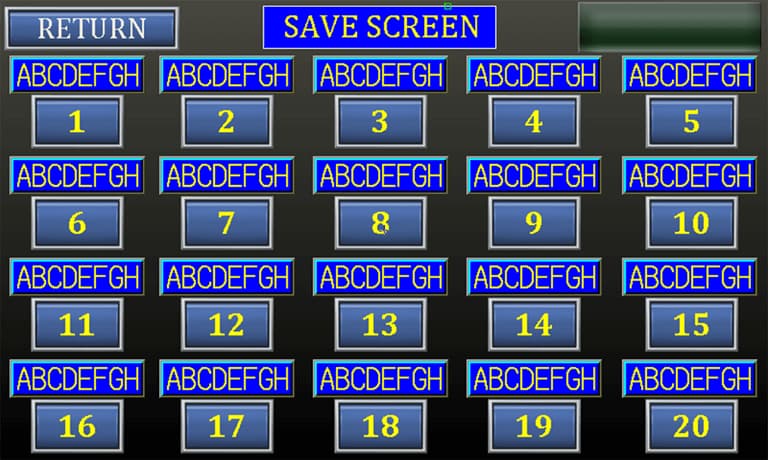

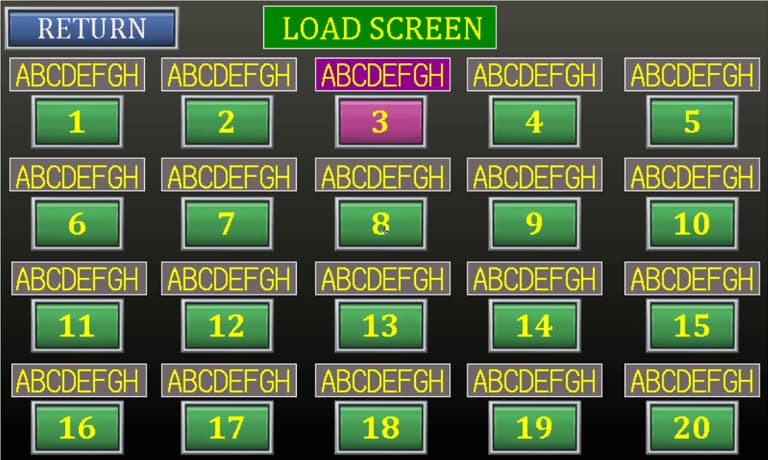

This function can record feeding length value to save or recall, and it is cooperation with dies number to record memory. -
Accessories
- ● Programmable multi-pitch setting with cutting signal output function.(Cutting signal output function is able to control the cutting device.)
- ● 7" Mitsubishi Touch panel
- ● PLC controller - Mitsubishi (Made in Japan)
- ● NC servo controller - Mitsubishi (Made in Japan)
- ● Feeding rolls air release.

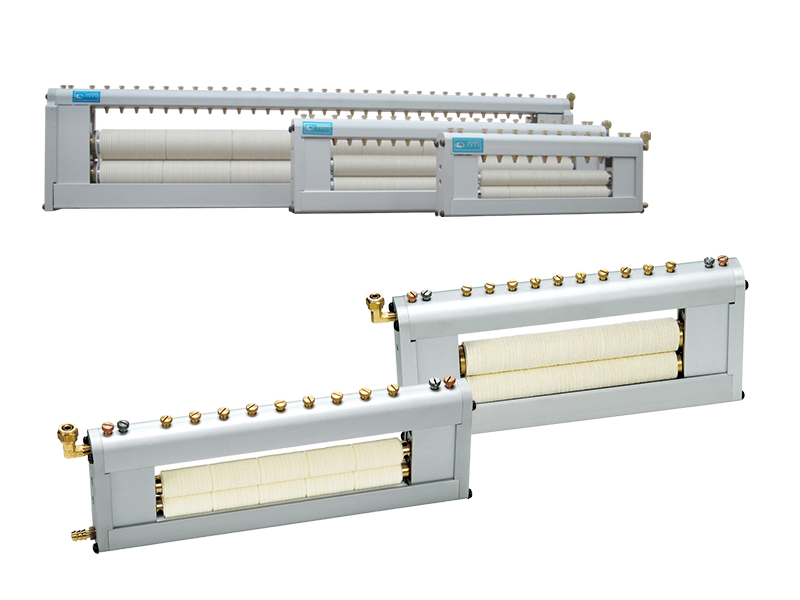

- Micro-Adjusted lubricator
- Gear box driven type device.(Applicable to material thickness above 3 ~ 4 mm)
- Four feeding rolls set unit with gear box driving device.(Applicable to material thickness above 5 ~ 6 mm)
- Closed loop type AC servo control system.
- Special software demand.
